Schneider Electric VW3A7601R07

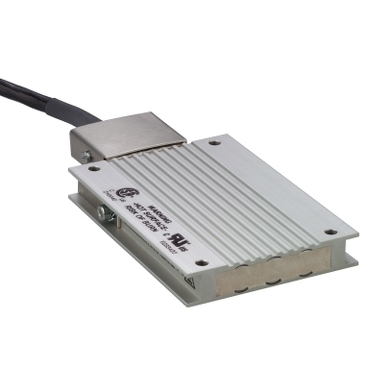

Braking resistor - 10 ohm - 400 W - cable 0.75 m - IP65
- MPN
- VW3A7601R07
- EAN
- 3389119207089
- Category
- Lexium 28 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A7601R07 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A7601R07?
Schneider Electric braking resistor - 10 ohm - 400 W - cable 0.75 m - IP65, manufacturer part number VW3A7601R07. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Lexium, Altivar |
| Range compatibility | Lexium 28, Lexium 05, Lexium 32i, Lexium 15, Lexium 52, Lexium 32 |
| Product or component type | Braking resistor |
| Ohmic value | 10 Ohm |
| Energy peak | 7300 J at 400 V, 7300 J at 480 V, 13300 J at 230 V, 18800 J at 115 V |
| Continuous power | 400 W |
| Protection type | Thermal protection via the servo drive |
| Net weight | 1.42 kg |
| Cable length | 0.75 m |
| IP degree of protection | IP65 |
| Ambient air temperature for storage | -25…85 °C |
| Ambient air temperature for operation | 0…50 °C |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 40.000 cm × 4.500 cm (L × W × H), 1.438 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A7601R07: frequently asked questions
Can I still buy the VW3A7601R07 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3A7601R07, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the VW3A7723 as its successor — we can quote both.
When can VW3A7601R07 be shipped?
VW3A7601R07 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A7601R07 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A7601R07 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A7601R07, subject to availability and destination.
