Schneider Electric VVE2

Switch disconnector,TeSys Control,for ON/emergency stop,40A,for mounting at back of an enclosure

MPN
VVE2
EAN
3389110553130
Category
TeSys Vario
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original VVE2 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VVE2?

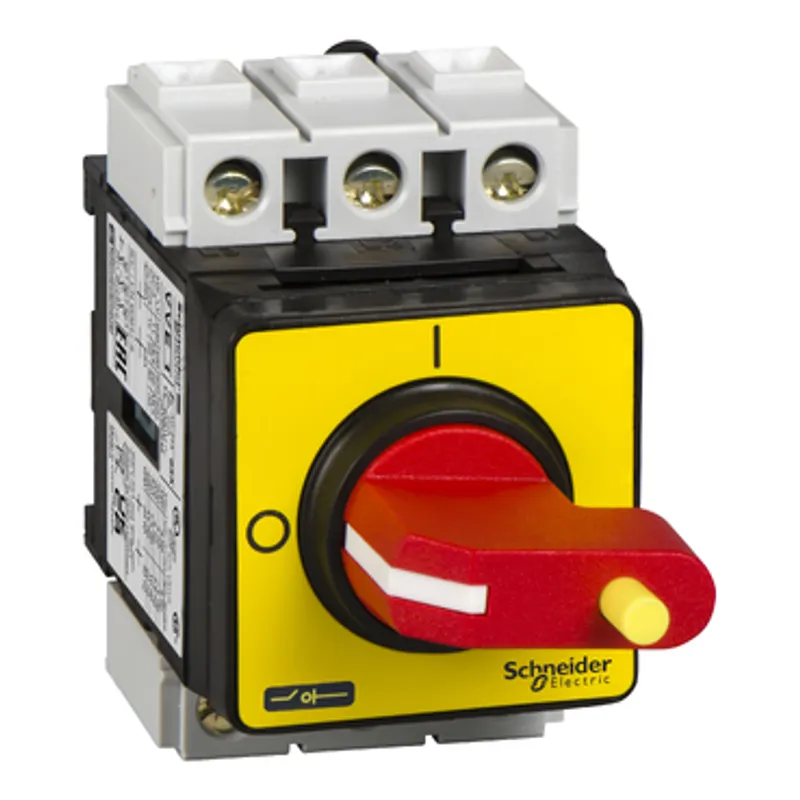

TeSys Vario switch disconnector for mounting in enclosure or modular panel, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. Complete unit composed of a switch body V2, a red handle with yellow 45x45mm front plate KCE1YZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 1 padlock (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Specifications

RangeTeSys
Product NameTeSys VARIO
Device Short NameVVE
Product TypeEmergency stop switch disconnector
Device CompositionSwitch, Handle
Mounting SupportSwitch: symmetrical rail, Switch: plate
Mounting MethodBy clips for switch, By screws for switch
Performance LevelHigh performance
Number of Poles3P
Contact Type and Composition3 NO
[Ue] IEC Rated Operational Voltage690 V AC 50/60 Hz
IEC Rated Operational Power in W11 kW at 690 V (AC-3), 15 kW at 690 V (AC-23A), 11 kW at 400...415 V (AC-3), 15 kW at 500 V (AC-3), 18.5 kW at 500 V (AC-23A), 5.5 kW at 230...240 V (AC-3), 7.5 kW at 230...240 V (AC-23A), 15 kW at 400...415 V (AC-23A)
[Ie] Rated Operational Current29 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current40 A
[Ithe] Conventional Enclosed Thermal Current32 A
Making Capacity ( I Rms)400 A at 400 V AC-21A, 400 A at 400 V AC-22A, 400 A at 400 V AC-23A
Breaking Capacity320 A at 400 V (AC-21A), 320 A at 400 V (AC-22A), 320 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current10 kA at 400 V - associated fuse 50 A aM, 10 kA at 400 V - associated fuse 50 A gG
[Icm] Rated Short Circuit Making Capacity1 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand Current480 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand Voltage8 kV
Suitability for IsolationYes
Network TypeAC, DC
Intermittent Duty Class30
Control TypeRotary handle
Rotary Handle Mounting StyleDirect
Handle ColorRed
Handle Front Plate ColorYellow
Rotary Handle Padlocking1 padlock 4…6 mm
Marking0 - 1
Mechanical Durability100000 cycles
Electrical Durability100000 cycles AC-21, 30000 cycles DC-1...5
IEC Terminal ConnectionPower circuit: screw clamp terminals10 mm² - solid, Power circuit: screw clamp terminals6 mm² - flexible - with cable end
Tightening TorquePower circuit: 2.1 N.m - on screw clamp terminals
Base Dimension45 x 45 mm
Height74 mm
Width55 mm
Depth106 mm
Product Weight0.25 kg
StandardsIEC 60947-3
Product CertificationsUL, GL, CSA, UKCA
Degree of ProtectionIP65, IP65 conforming to IEC 60529
Protective TreatmentTC
Mechanical RobustnessVibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation-20…50 °C
Fire Resistance960 °C conforming to IEC 60695-2-1
Compatibility CodeMain switch disconnector

Packaging

Package 11 PCE, 7.800 cm × 8.300 cm × 11.500 cm (L × W × H), 182.000 g
Package 212 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

VVE2: frequently asked questions

Can I still buy the VVE2 now that it is discontinued?

Yes. Schneider Electric has discontinued the VVE2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can VVE2 be shipped?

VVE2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VVE2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VVE2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VVE2, subject to availability and destination.
