VPI62606Voltage Presence Indicating Systems, PowerLogic VPIS, IEC 62271-206, V3, 22.4µA
Schneider Electric VPI62611
Voltage Presence Indicating Systems, PowerLogic VPIS, IEC 62271-206, V3, 3.5µA, with voltage output signal
- MPN
- VPI62611
- EAN
- 3606481338372
- Category
- PowerLogic™ T300
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

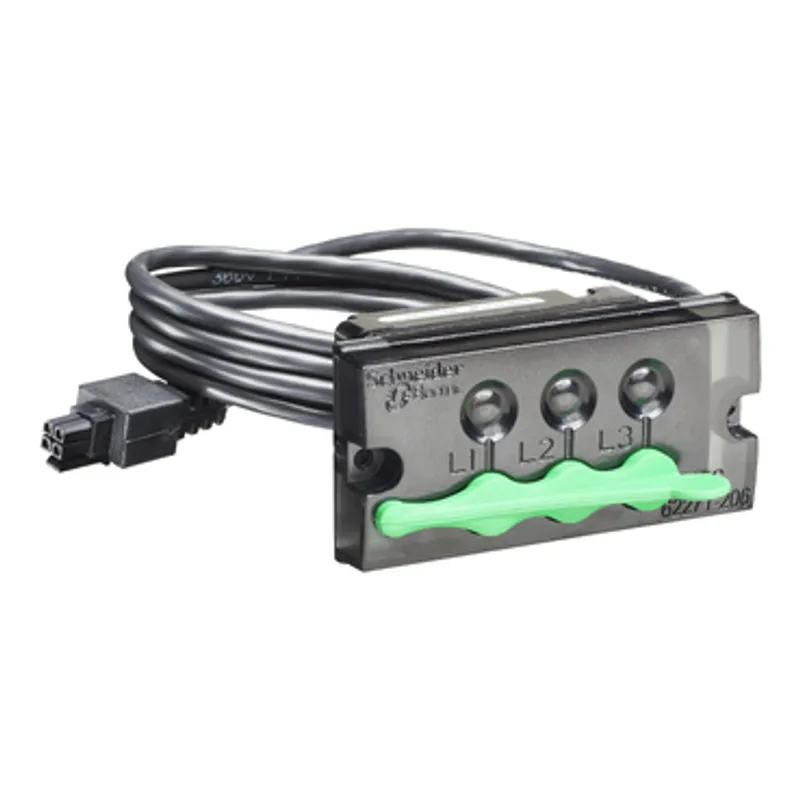

What is the Schneider Electric VPI62611?
Schneider Electric Voltage Presence Indicating Systems, PowerLogic VPIS, IEC 62271-206, V3, 3.5µA, with voltage output signal, manufacturer part number VPI62611. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Master range | PowerLogic |
| Range of product | PowerLogic VPIS |
| Product or component type | Voltage presence indicating system |
| Device short name | VPIS V3 |
| Network type | AC |
| Type of installation | Indoor |
| Standards | IEC 62271-206:2011 |
| Rated frequency (fr) | 50/60 Hz |
| Current threshold | 3.5 µA |
| Voltage output option | For Easergy T300 SC150 module |
| Degrees of protection provided by enclosures (IP code) | IP3X |
| Degree of protection of enclosure against external mechanical impacts (IK code) | IK05 |
| Mass | 103 g |
| Height | 35 mm |
| Width | 70 mm |
| Depth | 40 mm |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Damped oscillatory wave immunity test conforming to IEC 61000-4-18 |
| Ambient air temperature for operation | -25…85 °C |
| Ambient air temperature for storage | -40…85 °C |
| Humidity conditions | Average relative humidity over 24 h <= 95 % |
| Operating altitude | < 1000 m |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 4.500 cm × 4.000 cm (L × W × H), 96.000 g |
| Package 2 | 6 BB1, 27.000 cm × 9.000 cm × 9.000 cm (L × W × H), 624.000 g |
| Package 3 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.918 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VPI62611: frequently asked questions
When can VPI62611 be shipped?
VPI62611 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VPI62611 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VPI62611 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VPI62611, subject to availability and destination.
