Home / Schneider Electric / PowerLogic™ T300 / Schneider Electric VPI62602

Schneider Electric VPI62602

Q: When can VPI62602 be shipped?

VPI62602 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up VPI62602 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for VPI62602 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VPI62602, subject to availability and destination.

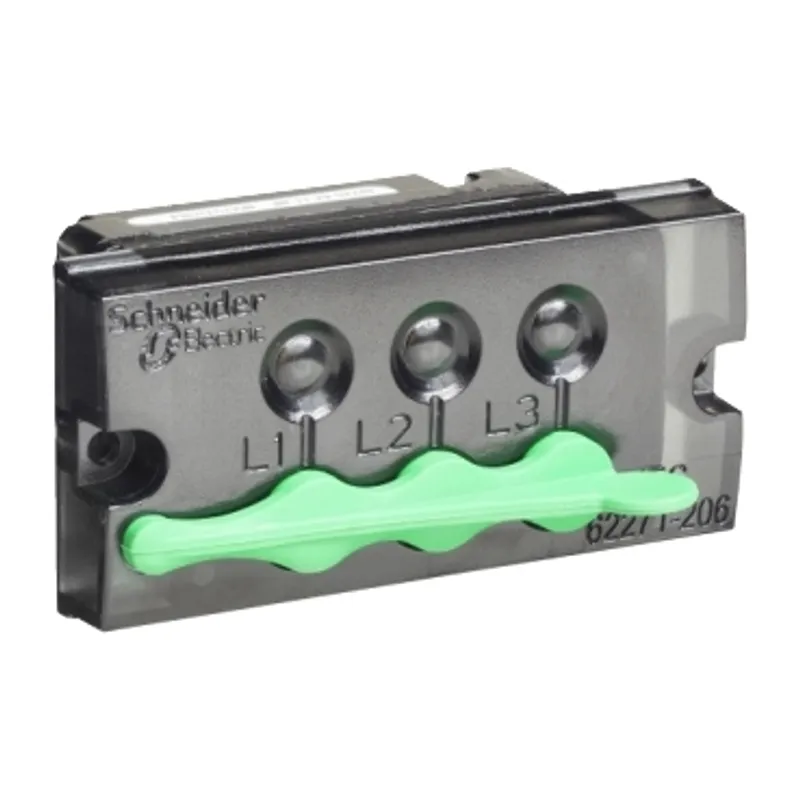

Voltage Presence Indicating Systems, PowerLogic VPIS, IEC 62271-206, V3, 5.1µA

MPN: VPI62602
Category: PowerLogic™ T300

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VPI62602?

Schneider Electric Voltage Presence Indicating Systems, PowerLogic VPIS, IEC 62271-206, V3, 5.1µA, manufacturer part number VPI62602. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Master range	PowerLogic
Range of product	PowerLogic VPIS
Product or component type	Voltage presence indicating system
Device short name	VPIS V3
Network type	AC
Type of installation	Indoor
Standards	IEC 62271-206:2011
Rated frequency (fr)	50/60 Hz
Current threshold	5.1 µA
Voltage output option	Without
Degrees of protection provided by enclosures (IP code)	IP3X
Degree of protection of enclosure against external mechanical impacts (IK code)	IK05
Mass	85 g
Height	35 mm
Width	70 mm
Depth	40 mm
Electromagnetic compatibility	Electrostatic discharge immunity test conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Damped oscillatory wave immunity test conforming to IEC 61000-4-18
Ambient air temperature for operation	-25…85 °C
Ambient air temperature for storage	-40…85 °C
Humidity conditions	Average relative humidity over 24 h <= 95 %
Operating altitude	< 1000 m

Packaging

Package 1	1 PCE, 15 cm × 10 cm × 4.2 cm (L × W × H), 70 g
Package 2	14 BB1, 26.7 cm × 9.2 cm × 9 cm (L × W × H), 1.17 kg
Package 3	56 S03, 40 cm × 30 cm × 30 cm (L × W × H), 5.17 kg

VPI62602: frequently asked questions

When can VPI62602 be shipped?

VPI62602 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VPI62602 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VPI62602 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VPI62602, subject to availability and destination.
