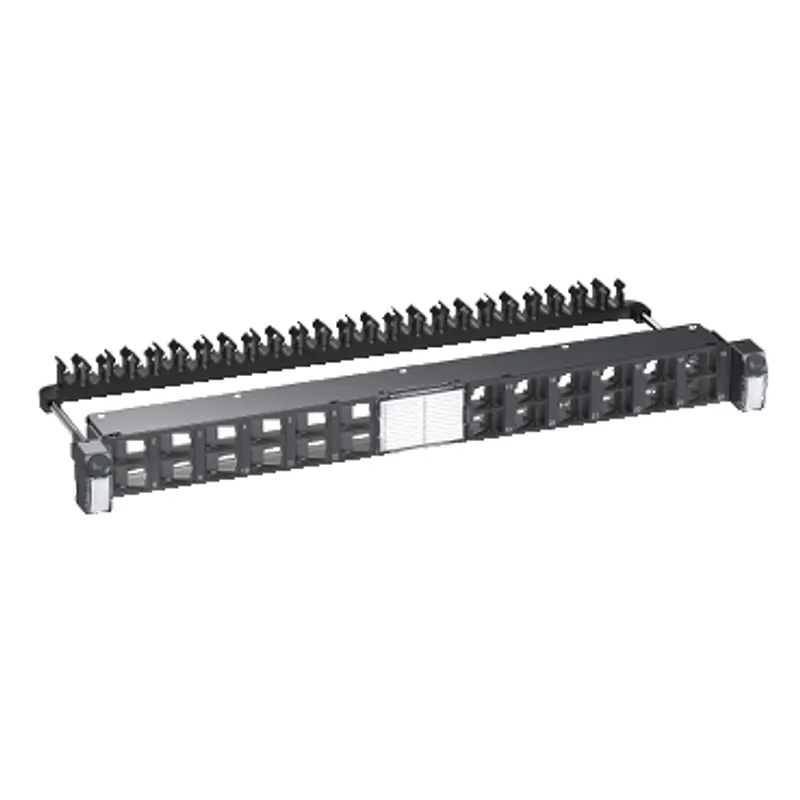

Actassi 19-C Patch Panel Flat Angled 19" 1U 24pt S-OneDPM FTP/STP Empty
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for AsiaPacific |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.2 kg |
Shipping & availability
When can VDIG321241B be shipped?
VDIG321241B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIG321241B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIG321241B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIG321241B, subject to availability and destination.
This 19 inch rack can support 24 S-One DPM RJ45 shielded connectors in 1U height. RJ45 S-ONE DPM are positionned in angle to guide patch cords to the vertical side of enclosure. It is equipped with one quick fix function on both sides to allow a simple fixation into the rack. RJ45 connectors can be easily fixed by clipping function. 1 central label is provided to identify each ports and is protected by a transparent label holder. 2 dedicated labels are provided on each side to identify the panel inside the rack. Labels are provided and are maintained and protected by transparent label holders. Recommended mounting with vertical side ring for vertical management of the patch-cords. The cable manager can rotate and be removed to ease the accessibility.
Specifications
Specifications
| range of product | Actassi |
| Product or component type | Empty angled 19" data panel |
| Device presentation | Empty |
| Provided equipment | 2 quick fix 19" mountings, Rear cable manager, Front label holder |
| Colour | Dark grey (RAL 7016) |
| Additional information | Automatic grounding |
| Number of port | 24 port of FTP/STP |
| Communication network category | 5e, 6, 6A |
| Number of rack unit | 1U |
| Type of connector | S-One DPM |
| Material | DC01 metal sheet 1.2 mm, PA6 plastic part, PA66 GF20 plastic part |
| Width | 490 mm |
| Depth | 230 mm |
| Height | 47 mm |
| Net weight | 2.2 kg |
| Ambient air temperature for operation | -10…55 °C |
| Standards | IEC 60297, NF C 20-150 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 19.6 cm |
| Package 1 Length | 50.3 cm |
| Package 1 Weight | 1.044 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 8.084 kg |
| Warranty (in months) | 18 |
