Schneider Electric VDICD658218

Q: When can VDICD658218 be shipped?

VDICD658218 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up VDICD658218 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for VDICD658218 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDICD658218, subject to availability and destination.

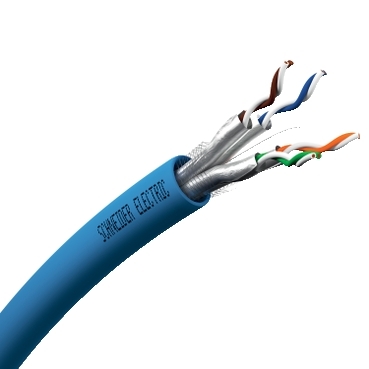

Copper LAN cable, Actassi, S/FTP, 4P, Cat7A, Euroclass D, 1,2 GHz, LSZH, 500 m

MPN: VDICD658218
Category: Actassi for Europe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VDICD658218?

This device is a network cable, is blue in color and is used for data communication. The network cable is made of PE (polyethylene), solid bare copper, making it resistant and durable. Its directives are 2006/95/EC - low voltage directive, 2011/65/EU - Ro.HS directive, 305/2011/EU - construction product regulation. The cable type is 4 pair cables. This network cable is SVHC (substances of very high concern) free. It well satisfied the standard of ANSI/TIA/EIA-568-C.2, EN 50173-1, EN 50174-1. Its communication port protocol is Po.E 15W (Power over Ethernet), Po.E+ 30W (Power over Ethernet Plus), Vo.IP (Voice IP). The cable shielding type is.S/FTP. This device is mercury free as well as heavy metal free, taking care of the environment and your health all the time.

Specifications

Range	Actassi
Product or component type	Copper cable
Cable packaging	Drum of 500 m
Colour tint	Blue
Cable shielding type	S/FTP
Type of cable	4 pair cables
Communication network category	7A
remote powering	PoE 15W (Power over Ethernet), PoE+ 30W (Power over Ethernet Plus), 4PPoE 100W (Power over Ethernet)
Communication network type	10GBASE-T
Minimum return loss	Guaranteed: 20.1 dB at 100 MHz typical: 28.0 dB, Guaranteed: 17.3 dB at 250 MHz typical: 24.0 dB, Guaranteed: 17.3 dB at 500 MHz typical: 22.3 dB, Guaranteed: 15.1 dB at 1000 MHz typical: 20.1 dB
Attenuation	Guaranteed: 18.5 dB Typical: 17.0 dB @ 100 MHz, Guaranteed: 29.7 dB Typical: 27.3 dB @ 250 MHz, Guaranteed: 42.8 dB Typical: 39.4 dB @ 500 MHz, Guaranteed: 61.9 dB Typical: 56.9 dB @ 1000 MHz
Power sum near-end crosstalk [PSNEXT]	Guaranteed: 72.4 dB Typical: 97.4 dB at 100 MHz, Guaranteed: 66.4 dB Typical: 91.4 dB at 250 MHz, Guaranteed: 61.9 dB Typical: 86.9 dB at 500 MHz, Guaranteed: 57.4 dB Typical: 81.3 dB at 1000 MHz
Attenuation to Crosstalk Ratio Far-end [ACRF]	Guaranteed: 55.3 dB Typical: 68.8 dB at 100 MHz, Guaranteed: 47.3 dB Typical: 59.7 dB at 250 MHz, Guaranteed: 41.3 dB Typical: 52.7 dB at 500 MHz, Guaranteed: 35.3 dB Typical: 46.3 dB at 1000 MHz
Power sum attenuation crosstalk ratio far-end [PSACRF]	52.3 dB at 100 MHz, 44.3 dB at 250 MHz, 38.3 dB at 500 MHz, 32.3 dB at 1000 MHz
Near end crosstalk [NEXT]	Guaranteed: 75.4 dB Typical: 100.4 dB at 100 MHz, Guaranteed: 69.4 dB Typical: 94.4 dB at 250 MHz, Guaranteed: 64.9 dB Typical: 89.9 dB at 500 MHz, Guaranteed: 60.4 dB Typical: 84.3 dB at 1000 MHz
Coupling attenuation	>= 85 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type Ia, >= 85 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type Ia
Transfer impedance	<= 10 mOhm/m at 1…10 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1), <= 30 mOhm/m conforming to IEC 61156-5, ed. 2.1 (grade 1), <= 30 mOhm/m at 30 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1), <= 60 mOhm/m at 100 MHz conforming to IEC 61156-5, ed. 2.1 (grade 1), <= 60 mOhm/m conforming to IEC 61156-5, ed. 2.1 (grade 1)
Input impedance	100 Ohm
Maximum loop resistance	138.4 Ohm per 1000 m
Segregation class	Class d conforming to EN 50174-2
Maximum resistance unbalance	2 %
Pulling force	100 N
Bending radius	Minimum bending radius during installation: 8 x overall diameter, Minimum bending radius after installation: 4 x overall diameter
Delay skew	25 ns
Material	Solid bare copper: conductor, PE (polyethylene): wire insulation, Aluminium/polyester: foil, Tinned copper: braid shield, PE (polyethylene): sheath
Euroclass level	Dca s2 d1 a1
Nominal velocity propagation	80 %
linear conductor resistance	69.2 mΩ/m
AWG gauge	AWG 23
Calorific value	555 MJ/km
Cable outer diameter	7.3 mm
Cable length	500 m
Cable weight	59 kg / 1 km
Ambient air temperature for installation	0…50 °C
Ambient air temperature for storage	-20…60 °C
Ambient air temperature for operation	-20…60 °C
Directives	2006/95/EC - low voltage directive, 305/2011/EU - construction product regulation
Flame retardance	LSZH
Standards	ISO/IEC 11801-ed. 3 performance, EN 50173-1 performance, EN 50174-1 performance, ANSI/TIA/EIA-568-C.2 performance, IEC 61156-5-ed. 2.1 performance, EN 50288-10-1 performance, ISO/IEC 14763-2 installation standards, EN 50174-2 installation standards, IEC 60332-1 flame propagation characteristics, IEC 60754-1, IEC 60754-2 acidity of combustion gases, IEC 61034 smoke generation

Packaging

Package 1	1 PCE, 44.500 cm × 40.000 cm × 40.000 cm (L × W × H), 31.000 kg
Package 2	12 P12, 120.000 cm × 80.000 cm × 105.000 cm (L × W × H), 378.000 kg
