Schneider Electric VDIB17715U96

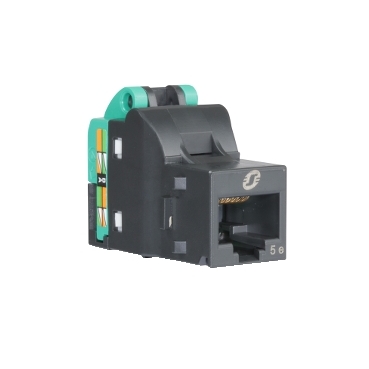

RJ45 network socket, Actassi, Unshielded, Cat 5e, DPM box x 96, dark grey

MPN: VDIB17715U96
Category: Actassi for Europe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VDIB17715U96?

This ACTASSI S-ONE DPM is state-of-the-art RJ45 connector for cabling systems solutions designed for buildings and data centres. Its one piece design allows faster and safer installation and delivers Cat5e high performance level. It is a tooless RJ45 connector which is part of the entire ACTASSI range to create full cabling solutions, backed by extended system warranty. It is designed for unshielded infrastructure and is mutli-standard certified(IEC,TIA,UL)as well as Green Premium compliant(RoHS/REACH). The connector is delivered in carton box of 96 pieces and is open ready to be used. Cat5e unshielded tooless RJ45 connector with S-ONE DPM footprint. Delivered in a practical eco- carton box of 96 pcs. One piece design -easy to handle and to make connection.Delivered open/ready to use/ - U-shape for cable entry to ease installer job. Ergonomic design - smooth bridle to avoid installer pain during closing for connection. Smart bridle with elastomer for cable locking. Central cable entry for optimized performances.protected IDC so that impossible to damage cable or fingers. Component certified according to ISO/IEC 60603-7. Audible /clic/ to know that S-ONE is closed and connection is done. Quick release button to re-open the jack in case of wiring check or modification required. Compatible with all ACTASSI range with extended system warranty.

Specifications

Range	Actassi
product type	RJ45 network socket
Device presentation	Integrated one piece design
Colour tint	Wire organizer: green, Connector: dark grey
Wiring Colour configuration	568 A/B
Type of packing	Carton
Quantity per set	Set of 96
[In] rated current	1.5 A at 25 °C
voltage proof	1000 V AC/DC peak, between contacts
Contact resistance	20 mOhm
Insulation resistance	Initial insulation resistance: >= 500 MOhm at 100 V DC
AWG gauge	AWG 24...AWG 23
durability	750 cycles
Coupling attenuation	>= 35 dB at 30…100 MHz, >= 75 - 20 x log(f) dB at 100…1000 MHz
contact pins	8 pins of copper alloy and gold plated conforming to IEC 60603-7
Pulling force	50 N during 60 s
Transverse conversion loss	>= 50 dB, >= 68 - 20 x log(f) dB at 1…100000 kHz
Tool type	Without tool
Cable outer diameter	0.9…1.4 mm
compatible LAN cable types	UTP
Communication network category	5e
supported applications	1000BASE-T
protocols	VoIP (Voice IP), PoE+ (Power over Ethernet)
Product compatibility	RJ45 plug
Transmission frequency	0…100 MHz
Type of footprint	S-One DPM
Material	ABS + PC: wire organizer, ABS + PC: connector
Height	28 mm
Length	33 mm
Width	18 mm
Targeted region	Europe
Main colour tint	Dark grey
operational temperature range	-40…70 °C
climatic category	40/070/21 (21 days)
Flame retardance	UL94-V0
Standards	ANSI/TIA-568-C.2, IEC 60603-7-2, ISO/IEC 11801:2011 Ed.2.2, UL 1863, IEC 60512-99-002

Packaging

Package 1	1 PCE, 1.800 cm × 3.300 cm × 2.800 cm (L × W × H), 8.000 g
Package 2	96 BB1, 17.000 cm × 36.000 cm × 8.000 cm (L × W × H), 986.000 g
Package 3	960 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.550 kg
