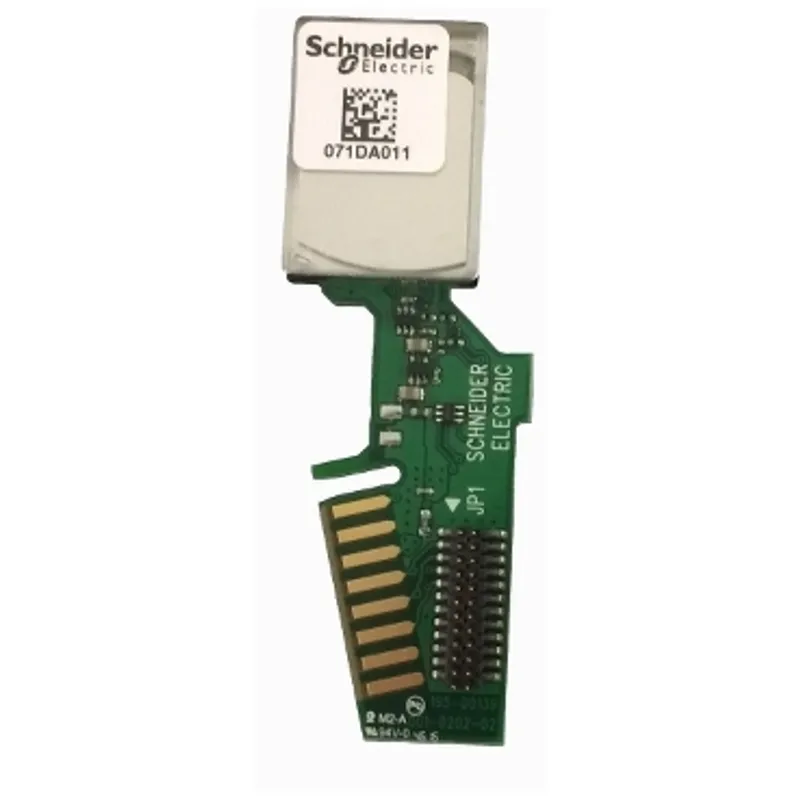

Schneider Electric VCM8001V5045
CO2 sensor module for SE8000 Room Controllers
- MPN
- VCM8001V5045
- EAN
- 3606489646226
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VCM8001V5045?
This is a CO2 sensor module for SE8000 Room Controllers ti ebavke Fresh and IAQ applications.
Specifications
Specifications
| Product or component type | Sensor |
| Type of measurement | CO2 |
| CO2 measurement accuracy | +/- 30 ppm + 3 % of reading |
| CO2 measurement range | 400...10000 ppm |
| Communication port protocol | Serial link, Modbus |
| Depth | 8.2 mm |
| Height | 25.1 mm |
| Net weight | 8 g |
| Width | 71 mm |
| Mounting support | Surface mount |
| Relative humidity | 0…95 % without condensation |
| Ambient air temperature for operation | -5…55 °C |
| Response time | 2 min |
| Ambient air temperature for storage | -40…70 °C |
| [Us] rated supply voltage | 3.4...4.5 V |
| Product name | SE8000 Series |
| Range | EcoStruxure Building Expert |
| Power consumption in VA | 0.1…3.6 VA |
| Function available | With CO2 sensor |
| Minimum interval duration | 2 s |
| Technology type | Infrared |
| Pressure dependance | 1.6 % change in reading per 1 kPa deviation from 100kPa |
| Connections - terminals | Pins for printed circuit board |
| Electromagnetic compatibility | Emission tests class A conforming to EN 55022, Immunity tests-radiated disturbances conforming to EN 55024, Immunity to conducted disturbances conforming to EN 55024, Immunity to electrical transients conforming to EN 55024, Resistance to electrostatic discharge conforming to EN 55024 |
| Range compatibility | EcoStruxure Building Expert SE8000 Series room controller |
Packaging
| Package 1 | 1 PCE, 11.500 cm × 9.000 cm × 4.000 cm (L × W × H), 40.000 g |
| Package 2 | 12 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 680.000 g |
| Package 3 | 384 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 33.760 kg |
