Schneider Electric VCFN12GE

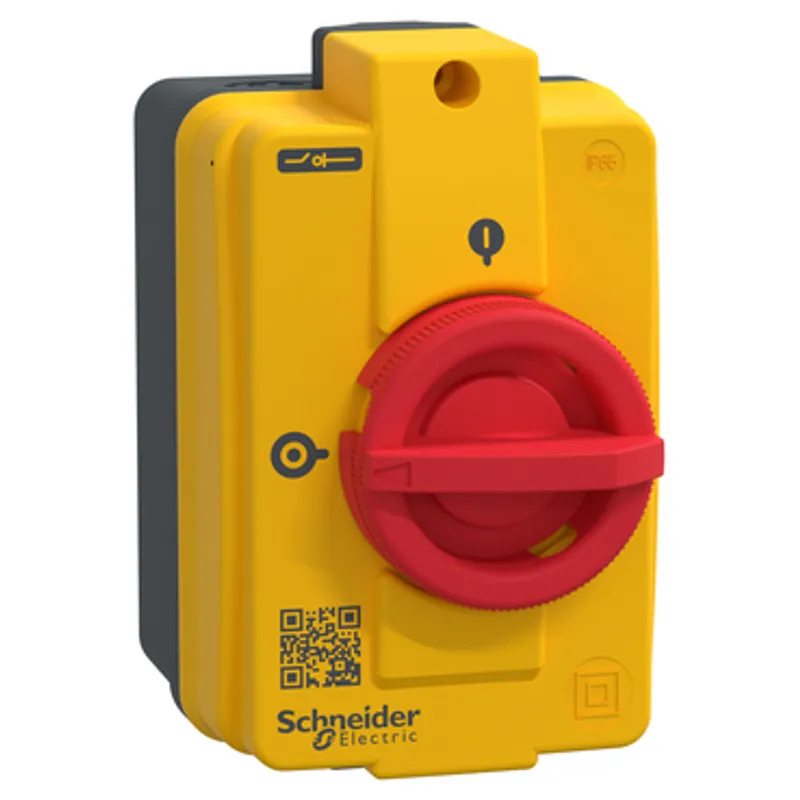

Enclosed switch disconnector,TeSys Control,for ON/emergency stop,10A,IP65,compact size
- MPN
- VCFN12GE
- EAN
- 3389110759983
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VCFN12GE?
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications up to 4kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole mini-Vario switch body VN12 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys Mini-VARIO |
| Device short name | VCFN |
| Product or component type | Emergency stop switch disconnector |
| Performance level | Standard |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ie] rated operational current | 8.1 A (AC-23A) at 400 V |
| Rated operational power in W | 4 kW at 400 V (AC-23), 3 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 120 A at 400 V AC-21A, 120 A at 400 V AC-22A, 120 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 12 A aM, 6 kA at 400 V - associated fuse 12 A gG |
| Breaking capacity | 120 A at 400 V (AC-22A), 120 A at 400 V (AC-23A), 120 A (AC-21A) |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Control circuit: connector cable(s) 4 mm² flexible with cable end, Control circuit: connector cable(s) 4 mm² solid |
| Tightening torque | Control circuit: 0.7 N.m - on connector |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 131 mm |
| Width | 82.5 mm |
| Depth | 106 mm |
| Net weight | 0.422 kg |
| Standards | IEC 60947-4-1 |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 14.000 cm × 9.000 cm (L × W × H), 304.000 g |
| Package 2 | 7 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.471 kg |
| Package 3 | 112 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 49.972 kg |
