Schneider Electric VCF4GE
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,63A,IP65
- MPN
- VCF4GE
- EAN
- 3389110543902
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VCF4GE?

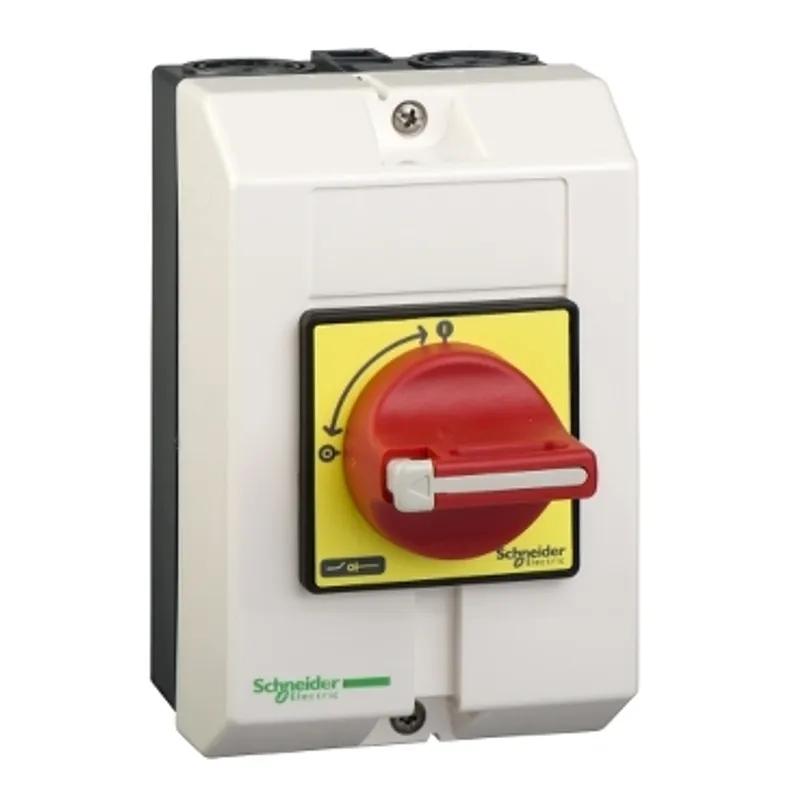

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VCF |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 63 A |
| [Ie] rated operational current | 57 A (AC-23A) at 400 V |
| Rated operational power in W | 30 kW at 400 V (AC-23), 22 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 800 A at 400 V AC-21A, 800 A at 400 V AC-22A, 800 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 2.1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 960 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 80 A aM, 10 kA at 400 V - associated fuse 80 A gG |
| Breaking capacity | 640 A at 400 V (AC-21A), 640 A at 400 V (AC-22A), 640 A at 400 V (AC-23A) |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals16 mm² - flexible - with cable end, Screw clamp terminals25 mm² - solid |
| Tightening torque | 4 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 180 mm |
| Width | 157 mm |
| Depth | 152 mm |
| Net weight | 0.93 kg |
| Standards | IEC 60947-4-1, IEC 60204 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
Packaging
| Package 1 | 1 PCE, 20.000 cm × 19.000 cm × 17.000 cm (L × W × H), 940.000 g |
| Package 2 | 32 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 43.208 kg |
