Schneider Electric VCF1

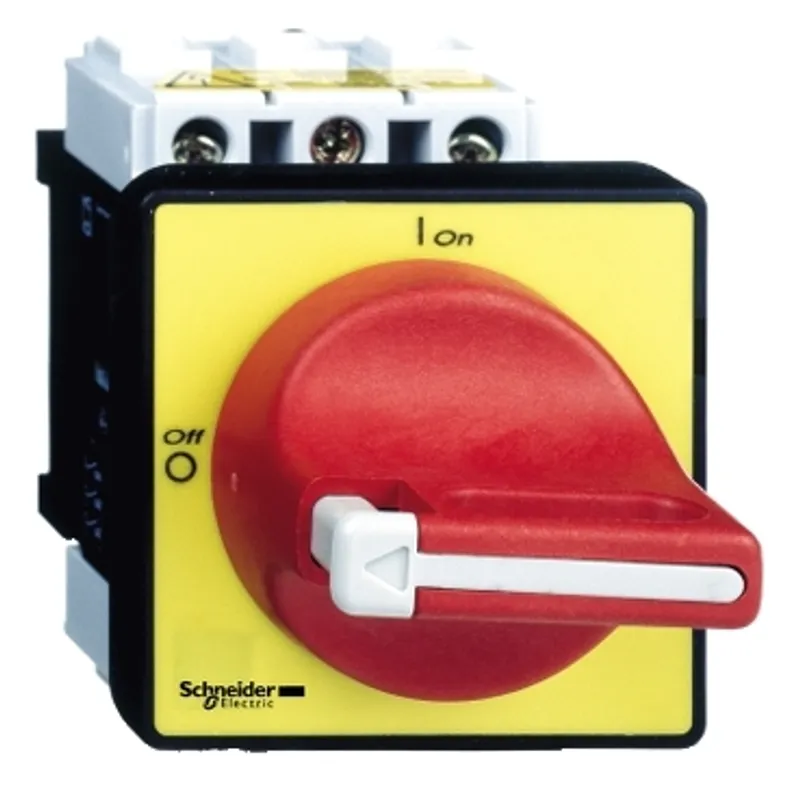

Switch disconnector,TeSys Control,for ON/emergency stop,32A,4 screws fixing,for mounting on door

MPN
VCF1
EAN
3389110449365
Category
TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VCF1?

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Specifications

RangeTeSys
Product NameTeSys VARIO
Device Short NameVCF
Product TypeEmergency stop switch disconnector
Device CompositionSwitch, Handle
Mounting SupportHandle: door, Switch: door
Mounting MethodBy 4 screws for handle
Performance LevelHigh performance
Number of Poles3P
Contact Type and Composition3 NO
[Ue] IEC Rated Operational Voltage690 V AC 50/60 Hz
IEC Rated Operational Power in W11 kW at 500 V (AC-23A), 15 kW at 690 V (AC-23A), 7.5 kW at 500 V (AC-3), 7.5 kW at 690 V (AC-3), 1.5 kW at 230...240 V (AC-3), 5.5 kW at 230...240 V (AC-23A), 11 kW at 400...415 V (AC-23A), 7.5 kW at 400...415 V (AC-3)
[Ie] Rated Operational Current21.8 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current32 A
[Ithe] Conventional Enclosed Thermal Current25 A
Making Capacity ( I Rms)320 A at 400 V AC-21A, 320 A at 400 V AC-22A, 320 A at 400 V AC-23A
Breaking Capacity250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current10 kA at 400 V - associated fuse 35 A aM, 10 kA at 400 V - associated fuse 35 A gG
[Icm] Rated Short Circuit Making Capacity1 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand Current384 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand Voltage8 kV
Suitability for IsolationYes
Network TypeDC, AC
Intermittent Duty Class30
Control TypeRotary handle
Rotary Handle Mounting StyleDirect
Handle ColorRed
Handle Front Plate ColorYellow
Rotary Handle Padlocking1 to 3 padlocks 4…8 mm
Marking0 - 1
Mechanical Durability100000 cycles
Electrical Durability100000 cycles AC-21, 30000 cycles DC-1...5
IEC Terminal ConnectionPower circuit: screw clamp terminals10 mm² - solid, Power circuit: screw clamp terminals6 mm² - flexible - with cable end
Tightening TorquePower circuit: 2.1 N.m - on screw clamp terminals
Base Dimension60 x 60 mm
Height74 mm
Width60 mm
Product Weight0.25 kg
StandardsIEC 60947-3
Product CertificationsUL, CSA, CCC, GL, UKCA
Degree of ProtectionIP20 conforming to IEC 60529, IP65
Protective TreatmentTC
Mechanical RobustnessVibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation-20…50 °C
Fire Resistance960 °C conforming to IEC 60695-2-1
Compatibility CodeMain switch disconnector

Packaging

Package 11 PCE, 12.000 cm × 8.500 cm × 8.000 cm (L × W × H), 219.000 g
Package 224 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.642 kg
Package 3192 P06, 60.000 cm × 80.000 cm × 75.000 cm (L × W × H), 53.136 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

VCF1: frequently asked questions

When can VCF1 be shipped?

VCF1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VCF1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VCF1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VCF1, subject to availability and destination.
