Schneider Electric VCDN20

Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door

MPN
VCDN20
EAN
3389110759914
Category
TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VCDN20?

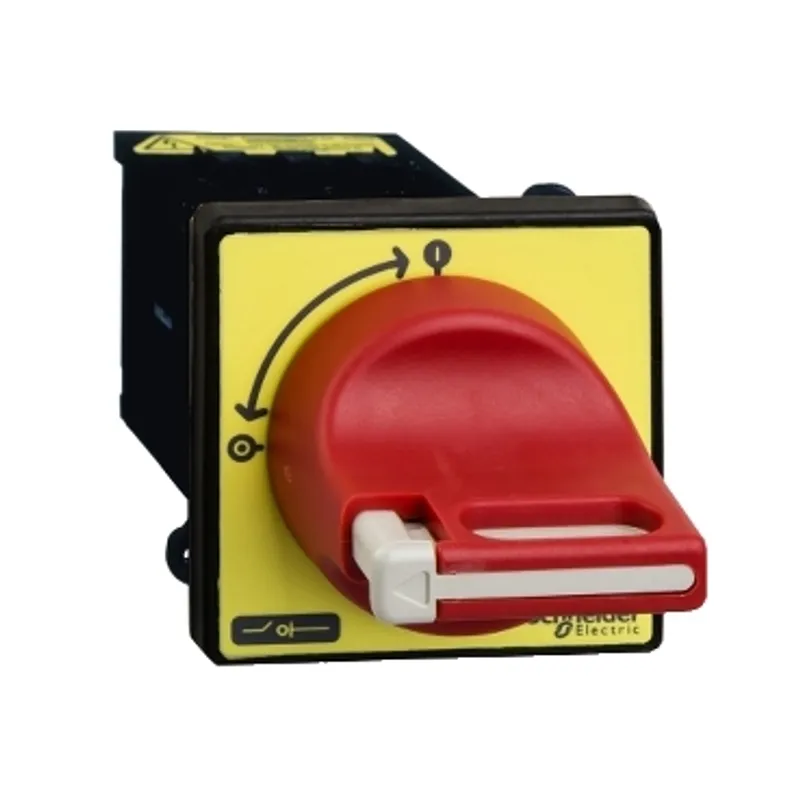

TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body VN20, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing to be mounted on door, it ensures IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Specifications

Specifications

RangeTeSys
Product nameTeSys Mini-VARIO
Device short nameVCDN
Product or component typeEmergency stop switch disconnector
Performance levelStandard
Poles description3P
Contacts type and composition3 NO
Network typeDC, AC
Control typeRotary handle
Rotary handle mounting styleDirect
Handle colourRed
Handle front plate colourYellow
Rotary handle padlocking1 to 3 padlocks 4…8 mm
Marking0 - 1
Mounting supportHandle: door, Switch: door
Fixing modeHole with 22.5 mm for handle
[Ith] conventional free air thermal current20 A
[Ithe] conventional enclosed thermal current16 A
[Ie] rated operational current11 A (AC-23) at 400 V
Rated operational power in W4 kW at 230...240 V (AC-23A), 5.5 kW at 400...415 V (AC-23A), 7.5 kW at 500 V (AC-23A), 11 kW at 690 V (AC-23A), 3 kW at 230...240 V (AC-3), 4 kW at 400...415 V (AC-3), 5.5 kW at 500 V (AC-3), 5.5 kW at 690 V (AC-3)
Intermittent duty class30
Making capacity ( I Rms)200 A at 400 V AC-21A, 200 A at 400 V AC-22A, 200 A at 400 V AC-23A
[Icm] rated short-circuit making capacity0.5 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current140 A at 400 V duration: 1 s
Rated conditional short-circuit current6 kA at 400 V - associated fuse 20 A aM, 6 kA at 400 V - associated fuse 20 A gG
Breaking capacity200 kA at 400 V (AC-21A), 200 kA at 400 V (AC-22A), 200 kA at 400 V (AC-23A)
Device compositionHandle, Switch
Mechanical durability50000 cycles
Electrical durability30000 cycles DC-1...5, 50000 cycles AC-21
Suitability for isolationYes
Connections - terminalsPower circuit: screw clamp terminals4 mm² - flexible - with cable end, Power circuit: screw clamp terminals4 mm² - solid
Tightening torquePower circuit: 0.7 N.m - on screw clamp terminals
handle front plate dimension60 x 60 mm
Height60 mm
Width60 mm
Net weight0.177 kg
StandardsIEC 60947-3
Product certificationsGL, CSA, UL, CCC, UKCA
Protective treatmentTC
IP degree of protectionIP65
Mechanical robustnessShocks 11 ms (15 gn) conforming to IEC 60068-2-27, Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6

Packaging

Package 11 PCE, 12.0 cm × 8.5 cm × 7.9 cm (L × W × H), 183.0 g
Package 224 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 4.865 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

VCDN20: frequently asked questions

When can VCDN20 be shipped?

VCDN20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VCDN20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VCDN20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VCDN20, subject to availability and destination.
