Schneider Electric VC2GUN
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard
- MPN
- VC2GUN
- EAN
- 3389119413183
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VC2GUN?

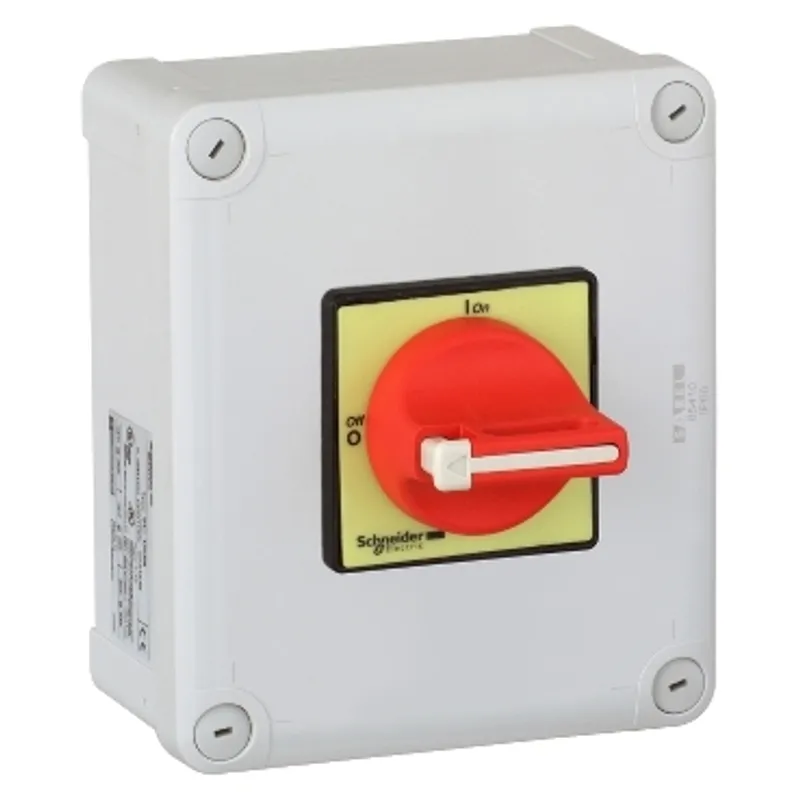

TeSys enclosed starter with switch disconnector, 3 poles, 25A/600V, for main and emergency stop switching in motor applications up to 15hp@600V. Enclosure fitted with a 3-pole switch body Vario V2, red rotary handle, yellow front plate with O/I marking. Possible attachement of 2 add-on modules to the internal switch body (main pole, neutral pole, earthing module, auxiliary contacts), to be ordered separately. NEMA type 1 and type 12 enclosure, IP65 protection, sealable, padlockable in O-Off position. It conforms to UL/CSA standards, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VC-GUN |
| Product or component type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 32 A |
| [Ie] rated operational current | 29 A (AC-23A) at 400 V |
| Rated operational power in W | 15 kW at 400 V (AC-23), 11 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 400 A at 400 V AC-21A, 400 A at 400 V AC-22A, 400 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| [Ith] conventional free air thermal current | 32.0 A conforming to IEC 690 V, 25 A conforming to UL 600 V |
| Rated power in hp | 5 hp at 240 V, UL certified, 10 hp at 480 V, UL certified, 15 hp at 600 V, UL certified |
| [Icw] rated short-time withstand Rms current | 480 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 50 A aM, 10 kA at 400 V - associated fuse 50 A gG |
| Breaking capacity | 320 A at 400 V (AC-21A), 320 A at 400 V (AC-22A), 320 A at 400 V (AC-23A) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals10 mm² - solid - with cable end, Screw clamp terminals6 mm² - flexible |
| Tightening torque | 2.1 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 164 mm |
| Width | 121 mm |
| Depth | 132 mm |
| Net weight | 0.5 kg |
| Standards | IEC 60204, CSA C22.2 No 14, UL 508, IEC 60947-4-1 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 12 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
Packaging
| Package 1 | 1 PCE, 14.000 cm × 18.500 cm × 13.500 cm (L × W × H), 647.0 g |
| Package 2 | 16 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 11.133 kg |
