Schneider Electric VBF01GE

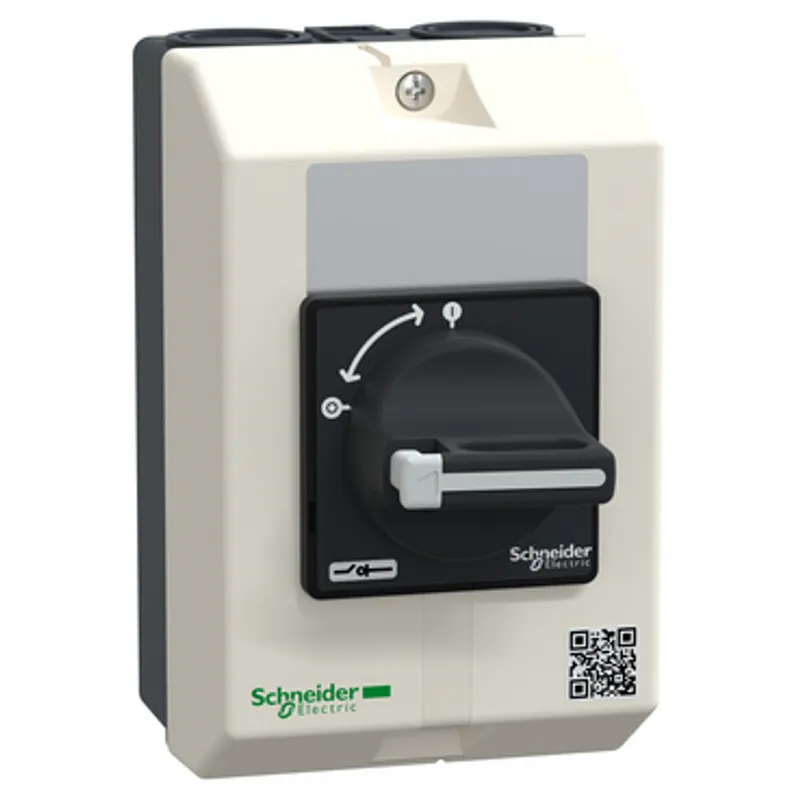

Enclosed switch disconnector,TeSys Control,for ON/OFF, 20A, 3P, IP65
- MPN
- VBF01GE
- EAN
- 3389110201048
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VBF01GE?
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main switching in motor applications up to 5.5kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys VARIO |
| Device short name | VBF |
| Device application | Preventive maintenance |
| Product or component type | Enclosed switch-disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 16 A |
| [Ie] rated operational current | 11 A (AC-23A) at 400 V |
| Rated operational power in W | 5.5 kW at 400 V (AC-23), 4 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 200 A at 400 V AC-21A, 200 A at 400 V AC-22A, 200 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 300 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 20 A aM, 10 kA at 400 V - associated fuse 20 A gG |
| Breaking capacity | 200 A at 400 V (AC-21A), 200 A at 400 V (AC-22A), 200 A at 400 V (AC-23A) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | Screw clamp terminals10 mm² - solid, Screw clamp terminals6 mm² - flexible - with cable end |
| Tightening torque | 2.1 N.m - on screw clamp terminals |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 146 mm |
| Width | 90 mm |
| Depth | 131 mm |
| Net weight | 0.5 kg |
| Standards | IEC 60947-4-1, IEC 60204 |
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
Packaging
| Package 1 | 1 PCE, 16.000 cm × 11.400 cm × 15.000 cm (L × W × H), 466.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.755 kg |
| Package 3 | 56 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 40.916 kg |
