Schneider Electric TWDNCO1M

CANopen bus master module - for PLC Twido - 9-way SUB-D connector

MPN
TWDNCO1M
EAN
3595863838398
Category
Twido
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original TWDNCO1M (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TWDNCO1M?

Schneider Electric TWDNCO1M — CANopen bus master module - for PLC Twido - 9-way SUB-D connector. Discontinued by Schneider Electric; the manufacturer's successor is TM241CEC24R. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productTwido
Product or component typeCANopen bus master module
Product compatibilityTWDLMDA20DRT; TWDLCAE40DRF; TWDLMDA20DTK; TWDLCDA40DRF; TWDLCAA40DRF; TWDLMDA40DUK; TWDLCAA24DRF; TWDLMDA40DTK; TWDLCDE40DRF; TWDLCDA24DRF; TWDLMDA20DUK
Integrated connection typeCANopen master bus male SUB-D 9, 2 twisted shielded pairs
Bus typeCANopen conformity class: M10, profile: DR 303-2; CANopen conformity class: M10, profile: DS 301 V4.02
Number of channels16 RPDO; 16 TPDO
[Us] rated supply voltage24 V DC

Complementary

Transmission rate125 kbit/s for bus length of 500 m; 250 kbit/s for bus length of 250 m; 500 kbit/s for bus length of 100 m
Current consumption50 mA at 5 V DC; 50.5 mA at 24 V DC
Power dissipation in W1.2 W at 24 V DC
Number of modules per base controller1
Number of server device(s)16
SupplyExternal supply
MarkingCE
Status LED1 LED for PWR

Environment

Product certificationsUL
IP degree of protectionIP20
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-25…70 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

TWDNCO1M: frequently asked questions

Can I still buy the TWDNCO1M now that it is discontinued?

Yes. Schneider Electric has discontinued the TWDNCO1M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the TM241CEC24R as its successor — we can quote both.

When can TWDNCO1M be shipped?

TWDNCO1M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TWDNCO1M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TWDNCO1M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TWDNCO1M, subject to availability and destination.

More Schneider Electric parts

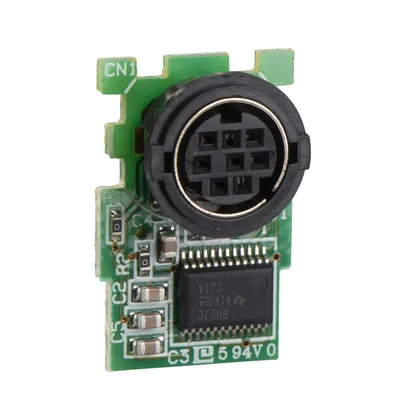

Schneider Electric TWDNAC232D – Serial interface adaptor, Twido, optional communication port for PLC, RS 232, mini DIN
