Schneider Electric TWDALM3LT – analog I/O module Twido - 24 V DC supply - 2 inputs and 1 ouput 0-10V, 4-20 mA
Discontinued by Schneider Electric — we can still source the original TWDALM3LT (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Twido |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3595862043465 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TWDALM3LT now that it is discontinued?
Yes. Schneider Electric has discontinued the TWDALM3LT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TWDALM3LT be shipped?
TWDALM3LT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TWDALM3LT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TWDALM3LT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TWDALM3LT, subject to availability and destination.
Schneider Electric TWDALM3LT — analog I/O module Twido - 24 V DC supply - 2 inputs and 1 ouput 0-10V, 4-20 mA. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Twido |
| Product or component type | Analogue I/O module |
| Analogue input number | 2 |
| Analogue input type | Temperature probe temperature probe: Pt 100 3 wires differential; Thermocouple -200...+760 °C thermocouple J differential; Thermocouple -270...+1370 °C thermocouple K differential; Thermocouple -270...+400 °C thermocouple T differential |
| Analogue input resolution | 12 bits |
| Analogue output number | 1 |
| Analogue output type | Current: 4...20 mA; Voltage: 0...10 V |
| Analogue output resolution | 12 bits |
| I/O connection | Removable screw terminal block |
| Cross talk | <= 2 LSB |
Complementary
| Input level | Low level |
| LSB value | 0.1 °C, analogue input type: thermocouple, thermocouple T; 0.15 °K, analogue input type: temperature probe; 0.3 °C, analogue input type: thermocouple, thermocouple J; 0.325 °C, analogue input type: thermocouple, thermocouple K; 2.5 mV voltage; 4.8 µA current |
| Input impedance | <= 250 Ohm thermocouple; <= 5 Ohm temperature probe |
| load type | Resistive |
| Load impedance ohmic | <= 300 Ohm current; >= 2000 Ohm voltage |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 50 ms |
| Sampling repetition time | 50 ms |
| Acquisition period | 500 ms + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C; +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C; +/- 0.2 % of full scale Pt at 25 °C; 0.2 % +/- 4 °C of full scale thermocouple J at 25 °C; 0.2 % +/- 4 °C of full scale thermocouple K at 25 °C; 0.2 % +/- 4 °C of full scale thermocouple T at 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C, analogue input type: temperature probe; +/-0.006 %FS/°C, analogue input type: thermocouple; +/-0.015 %FS/°C, analogue output type: current; +/-0.015 %FS/°C, analogue output type: voltage |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS, analogue input type: temperature probe; +/- 0.2 %FS, analogue input type: thermocouple; +/- 0.2 %FS, analogue output type: current; +/- 0.2 %FS, analogue output type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS, analogue input type: temperature probe; +/-1 %FS, analogue input type: thermocouple; +/-1 %FS, analogue output type: current; +/-1 %FS, analogue output type: voltage |
| Common mode rejection | - 50 dB |
| Type of cable | Shielded twisted pair |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Current consumption | 50 mA at 5 V DC; 60 mA at 24 V DC |
| Marking | CE |
| Net weight | 0.085 kg |
Environment
| Dielectric strength | 500 V between the I/O and the supply circuit |
| Product certifications | CSA; UL |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TWDALM3LT |
More Schneider Electric parts

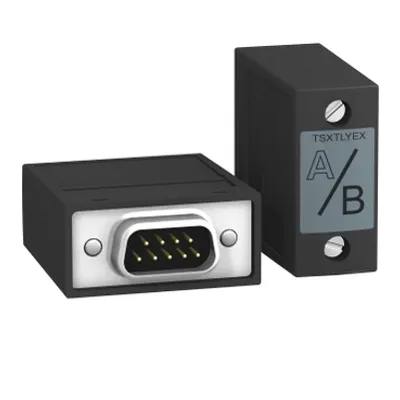

Available on requestline terminator - for rack end - set of 2
