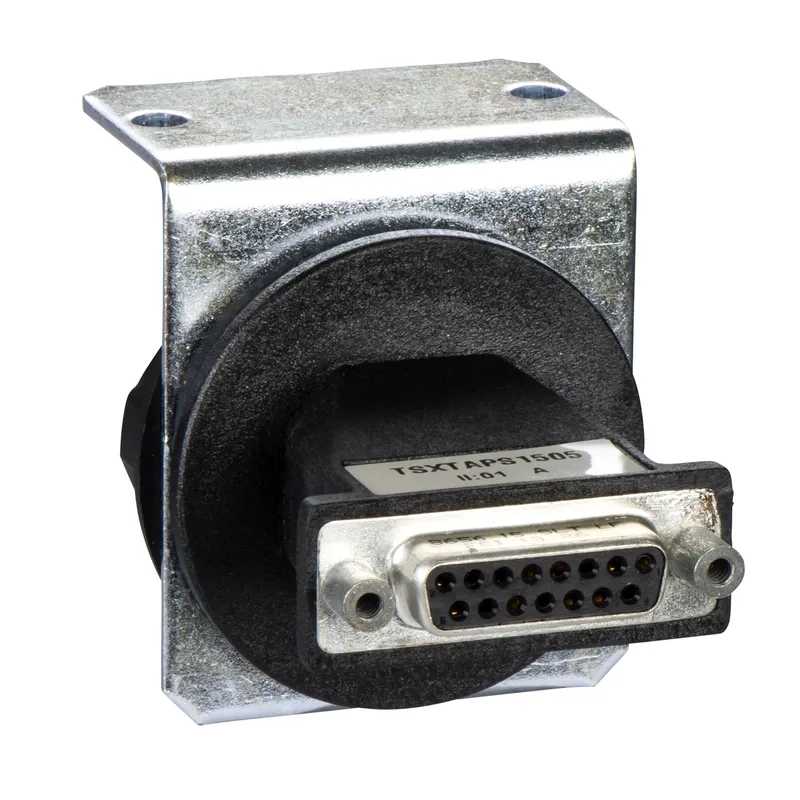

Schneider Electric TSXTAPS1505 – connection interface for incremental encoder - for encoder 5 V DC RS422
Discontinued by Schneider Electric — we can still source the original TSXTAPS1505 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3389110617467 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXTAPS1505 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXTAPS1505, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXTAPS1505 be shipped?
TSXTAPS1505 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXTAPS1505 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXTAPS1505 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXTAPS1505, subject to availability and destination.
Schneider Electric TSXTAPS1505 — connection interface for incremental encoder - for encoder 5 V DC RS422 (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Accessory / separate part designation | Connection interface for incremental encoder |
| Accessory / separate part type | Connection interface |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Encoder 5 V DC RS422 |
Complementary
| Product compatibility | TSXCTY2C; TSXCAY33; TSXCTZ2A; TSXCTY4A; TSXCAY22; TSXCTY2A; TSXCTZ1A; TSXCAY41; TSXCTZ2AA; TSXCAY21; TSXCAY42; TSXCCY1128 |
| Electrical connection | 1 connector SUB-D 15 (module side) |
| Physical interface | RS485; RS422 |
| Net weight | 0.26 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXTAPS1505 |
