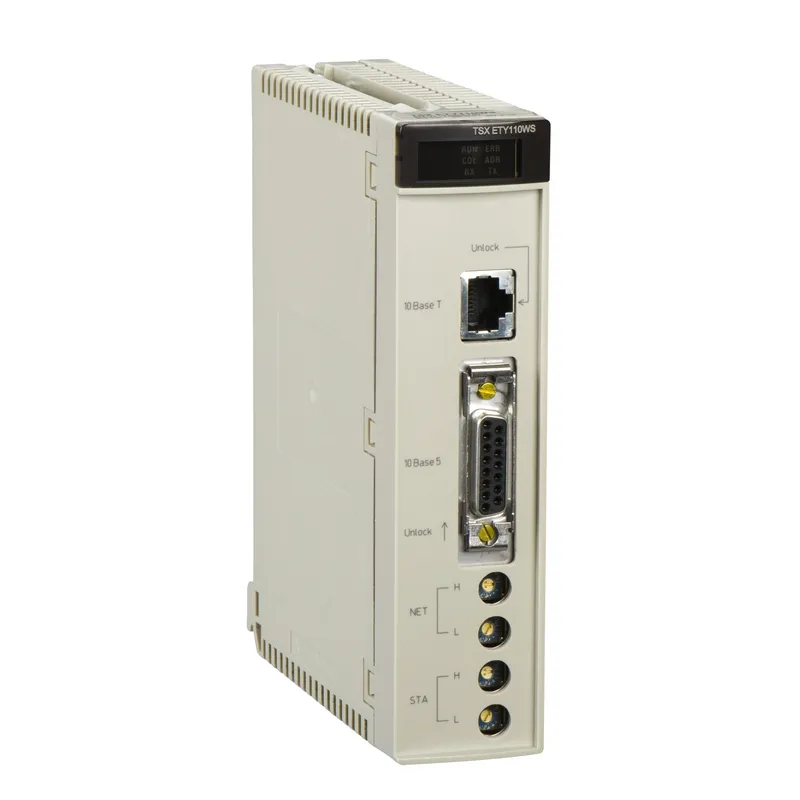

Schneider Electric TSXETY110WS
Ethernet TCP/IP module, Modicon Premium, Ethway, Modbus TCP, Uni-Telway, 800mA at 5VDC, 10Mbit/s
- MPN
- TSXETY110WS
- EAN
- 3389110123869
- Category
- Modicon Premium
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXETY110WS (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXETY110WS?
Schneider Electric TSXETY110WS — Ethernet TCP/IP module, Modicon Premium, Ethway, Modbus TCP, Uni-Telway, 800mA at 5VDC, 10Mbit/s. Discontinued by Schneider Electric; the manufacturer's successor is BMXNOE0100. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Ethernet TCP/IP module |
| Physical interface | AUI - 100BASE-5 1 AUI cable; RJ45 - 10BASE-T 1 twisted pair |
| Transmission rate | 10 Mbit/s |
| Communication service | Modbus TCP messaging; Optional TCP open; SNMP agent; Uni-TE messaging; Common words, Ethway/X-Way; Application to application, Ethway/X-Way |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED for collision detection (COL); 1 LED for Ethernet network status (RUN); 1 LED for Ethernet port fault (ERR); 1 LED for transmission/reception activity (TX/TR) |
Complementary
| Communication port protocol | Ethway/X-Way; Modbus TCP; Uni-Telway |
| Maximum number of connections | 64 |
| Web server | Transparent ready class C10 |
| web feature | Data Editor (via PC terminal); Rack viewer; FactoryCast configurable |
| Memory description | User web page size 1.4 MB |
| Marking | CE |
| Product compatibility | PL7 Pro |
| Current consumption | 1200 mA 5 V DC with remote power supply (AUI); 800 mA 5 V DC without remote power supply (RJ45) |
| Module format | Standard |
| Net weight | 0.37 kg |
Environment
| Standards | FM Class 1 Division 2 group D; FM Class 1 Division 2 group C; EN 61131-2; FM Class 1 Division 2 group B; FM Class 1 Division 2 group A |
| Product certifications | UL 508; CSA 1010-1 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % at 60 °C without condensation |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXETY110WS: frequently asked questions
Can I still buy the TSXETY110WS now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXETY110WS, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXNOE0100 as its successor — we can quote both.
When can TSXETY110WS be shipped?
TSXETY110WS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXETY110WS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXETY110WS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXETY110WS, subject to availability and destination.
