Schneider Electric TSXCDP053

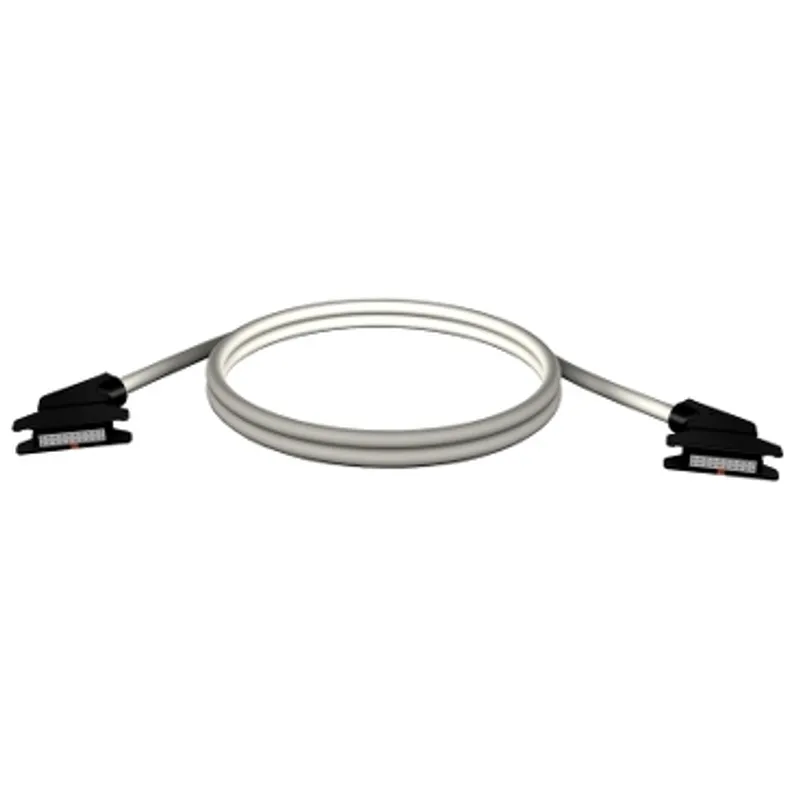

Connecting cable - Modicon Premium - 0.5 m - for sub-base ABE7H16R20

MPN: TSXCDP053
EAN: 3389110647754
Category: Modicon Quantum

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXCDP053?

Schneider Electric connecting cable - Modicon Premium - 0.5 m - for sub-base ABE7H16R20, manufacturer part number TSXCDP053. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Modicon Premium
Accessory / separate part designation	Connecting cable
Accessory / separate part type	Connecting cable
Accessory / separate part category	Connection accessories
Accessory / separate part destination	Sub-base ABE7H16R20
Product compatibility	TSXCFY21, TSXCTY2C, TSXCCY1128, TSXCFY11, TSXCAY, TSXCTY2A, TSXCTY4A
Cable length	0.5 m
Electrical connection	1 connector HE10, 20 ways for module side, 1 connector HE10, 20 ways for PLC side
Wire section	0.324 mm²
AWG gauge	AWG 22
Net weight	0.085 kg

Packaging

Package 1	1 PCE, 19.000 cm × 17.000 cm × 1.000 cm (L × W × H), 116.000 g
Package 2	10 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.467 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXCDP053PDF

TSXCDP053: frequently asked questions

When can TSXCDP053 be shipped?

TSXCDP053 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXCDP053 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXCDP053 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXCDP053, subject to availability and destination.
