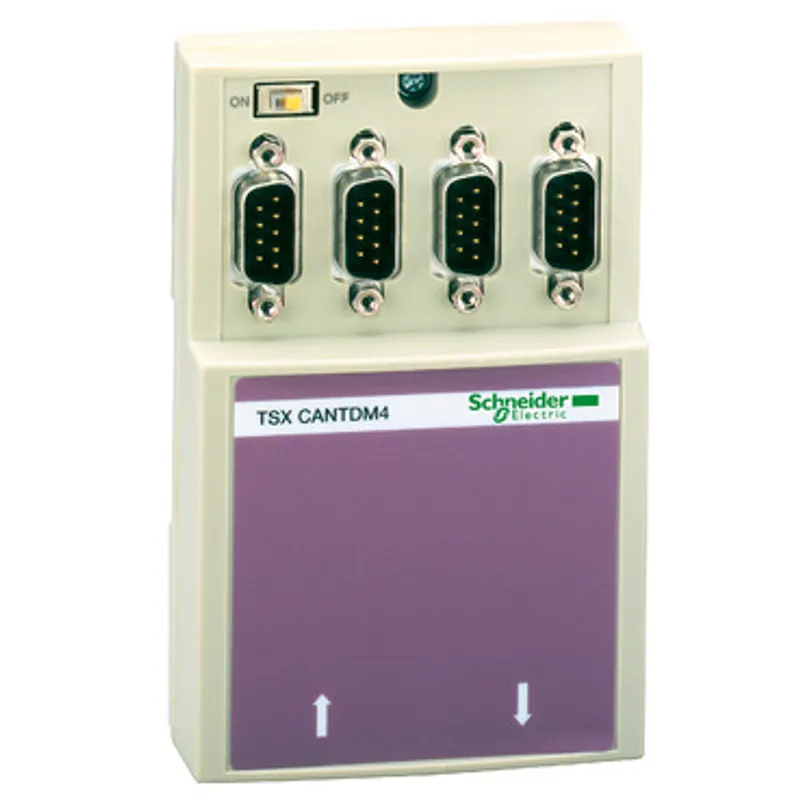

Schneider Electric TSXCANTDM4

IP20 CANopen tap junction box - 1 screw terminal block and 4 SUB-D9

MPN: TSXCANTDM4
EAN: 3595862022194
Category: Modicon Premium

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXCANTDM4?

"This connecting cable is part of the Modicon Premium range, an offer of PLC for process applications, high availability and safety solutions." "It supports up to 4 CAN devices to be connected to the CANopen bus." "This jbox features one screw terminal block for connecting the trunk cables and 4 SUB-D9 male connectors." "The junction box allows easy connection for CANopen devices." "CAN signals from incoming and outgoing cables and the four SUB-D 9 are interconnected inside the box." "It is an IP20 rated product." "This box is a compact system particularly at ease in extended architectures, as it can serve up to 16 distributed racks in real time without repeater." "It supports 5 IEC languages as standard (LD, ST, FBD, SFC, IL)" "This tap junction box serves to connect CANopen buses for Modicon M340 and Premium ranges." "This tap junction box may be screwed onto a plate or snapped on a DIN rail." "Modicon Premium products build a high-level multitasking system." "Modicon Premium products are specially designed for complex and special machines, manufacturing processes, and infrastructure."

Specifications

Range of product	CANopen
Bus type	CANopen
Accessory / separate part category	Connection accessories
Accessory / separate part type	Line terminator, Tap junction box
IP degree of protection	IP20
Accessory / separate part destination	CANopen bus
Electrical connection	4 connectors male SUB-D 9, Screw terminal
Net weight	0.196 kg

Packaging

Package 1	1 PCE, 13.500 cm × 8.500 cm × 6.500 cm (L × W × H), 193.000 g
Package 2	32 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.638 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXCANTDM4PDF

TSXCANTDM4: frequently asked questions

When can TSXCANTDM4 be shipped?

TSXCANTDM4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXCANTDM4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXCANTDM4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXCANTDM4, subject to availability and destination.
