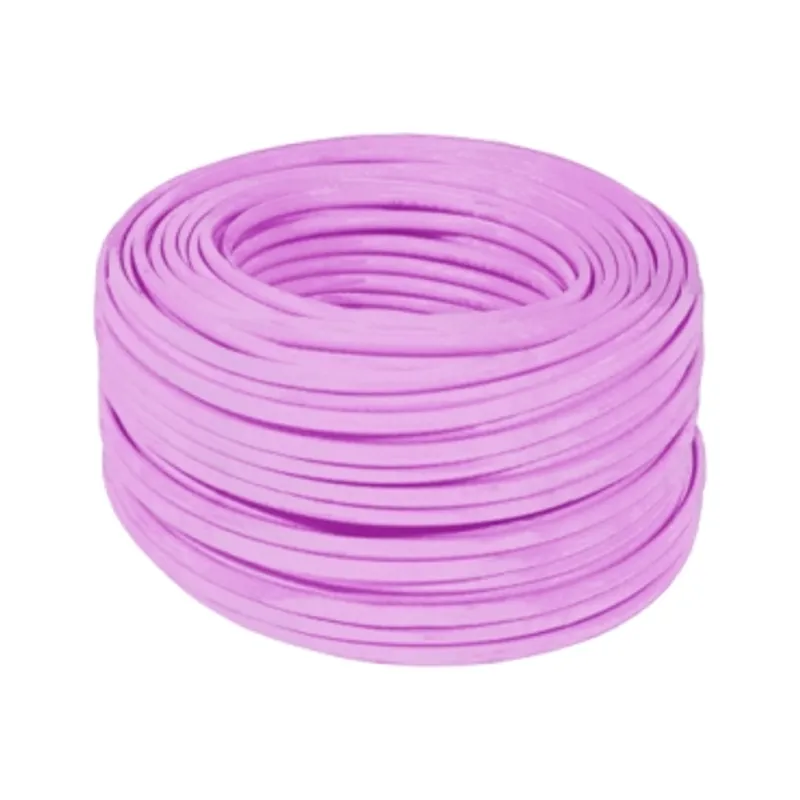

standard cable, Twido, CANopen, IP20, IEC 60332-1, 100m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Twido |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 8.8 kg |
Shipping & availability
When can TSXCANCA100 be shipped?
TSXCANCA100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXCANCA100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXCANCA100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXCANCA100, subject to availability and destination.
This product is part of the CANopen range, an offer of connection components. This CANopen standard cable is a low smoke, zero halogen and flame-retardant cable, an accessory of variable speed drive. The length of this cable is 100m. Its wide range of operating temperature between 5°C and 60°C makes it suitable for standard environment, fixed installation. The cable configuration is (2 x 22AWG) + (2 x 24AWG). It is an IP20 rated product. It weighs 8.8kg. It is compatible for Altivar 32 communication buses and networks. It is suitable for used in material handling, hoisting, wood machines, process machines, textile machines and packaging applications. This product is certified by CE. Connection via SUB-D connector with VWA3618 CANopen card. This range is open to all communication networks, applications, users, and provides ingenious solutions for all specific requirements.
Specifications
Specifications
| Range of product | CANopen |
| Bus type | CANopen |
| Product or component type | Standard cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part destination | CANopen bus |
| Cable length | 100 m |
| Marking | CE |
| Net weight | 8.8 kg |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.000 cm |
| Package 1 Width | 35.000 cm |
| Package 1 Length | 35.000 cm |
| Package 1 Weight | 9.270 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 100.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 235.000 kg |
| Warranty | 18 months |
