TMC2AQ2CAnalogue output cartridge, Modicon M221, 2 analog current outputs, IO extension
Schneider Electric TMC2PACK01
Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension
- MPN
- TMC2PACK01
- EAN
- 3606480649134
- Category
- Modicon M221
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TMC2PACK01 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TMC2PACK01?

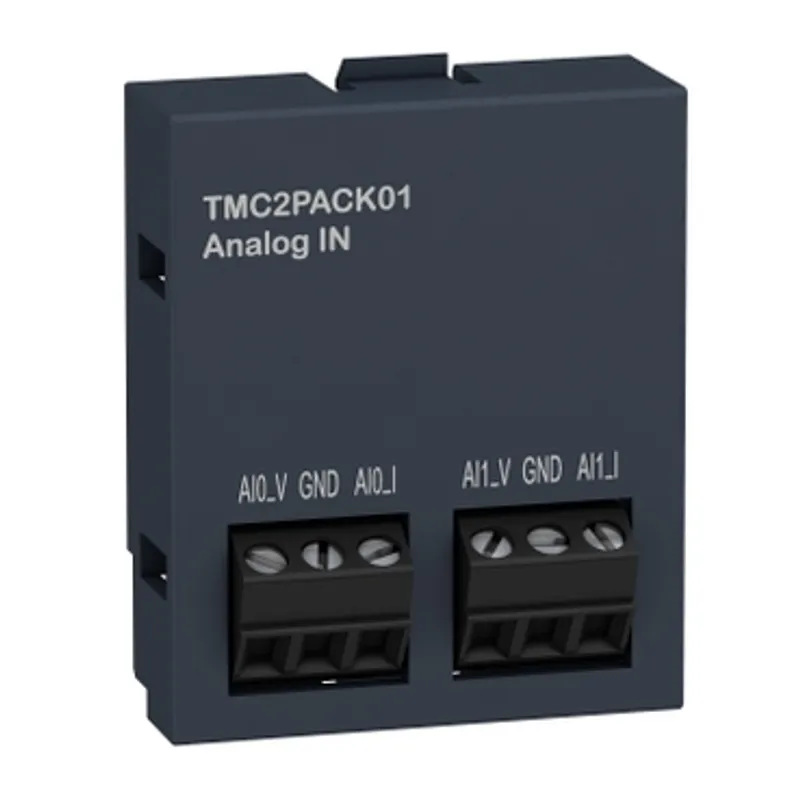

cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Specifications
Specifications
| Range of product | Modicon M221 |
| Product or component type | Analogue input cartridge |
| Product specific application | Packaging |
| Product compatibility | Modicon M221C |
| Analogue input number | 2 |
| Analogue input type | Current 4...20 mA, current 0...20 mA, voltage 0...10 V |
| Analogue input resolution | 12 bits |
| LSB value | 2.44 mV 0...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent |
| Conversion time | 20 ms |
| Sampling duration | 10 ms |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C, +/- 1 % of full scale |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Non-insulated between analogue input and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.015 kg |
| Permissible continuous overload | 13 V, analogue input type: voltage, 40 mA, analogue input type: current |
| Input impedance | <= 250 Ohm current, >= 1 MOhm voltage |
| Immunity to microbreaks | 10 ms |
Packaging
| Package 1 | 1 PCE, 6.86 cm × 4.83 cm × 3.56 cm (L × W × H), 40 g |
| Package 2 | 75 S02, 40 cm × 30 cm × 15 cm (L × W × H), 3.305 kg |
| Package 3 | 2400 P06, 80 cm × 40 cm × 75 cm (L × W × H), 75 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TMC2PACK01: frequently asked questions
Can I still buy the TMC2PACK01 now that it is discontinued?
Yes. Schneider Electric has discontinued the TMC2PACK01, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TMC2PACK01 be shipped?
TMC2PACK01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TMC2PACK01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TMC2PACK01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TMC2PACK01, subject to availability and destination.
