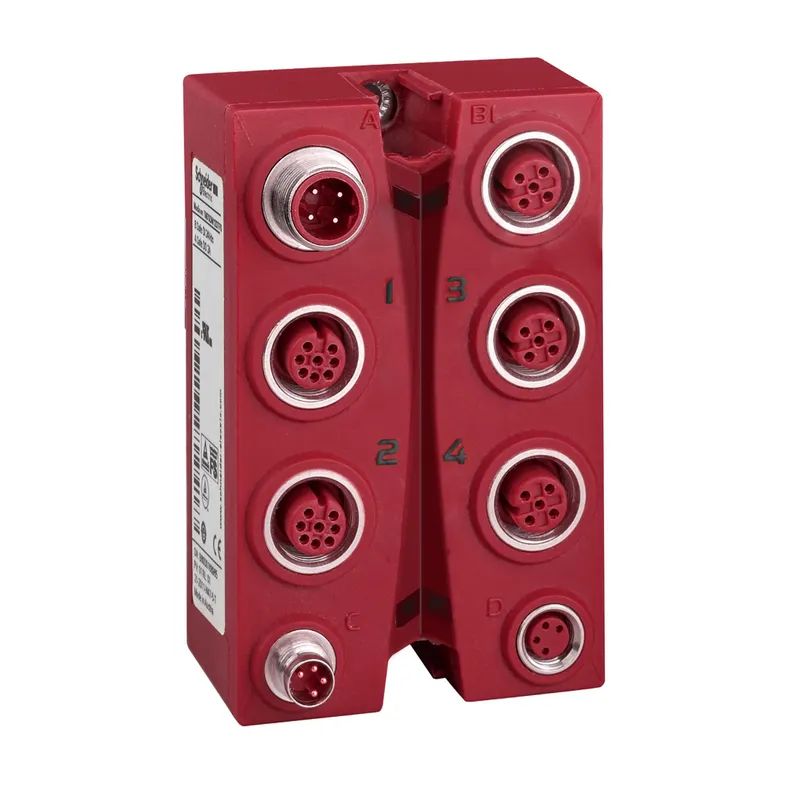

Schneider Electric TM7SDI8DFS – Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector

Name: Schneider Electric TM7SDI8DFS – Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector
Brand: Schneider Electric
SKU: TM7SDI8DFS

MPN: TM7SDI8DFS · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon TM7 IP67 modular I/O system
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	AT
UPC / EAN	3606480941184
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM7SDI8DFS be shipped?

TM7SDI8DFS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM7SDI8DFS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM7SDI8DFS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM7SDI8DFS, subject to availability and destination.

Schneider Electric TM7SDI8DFS — Safety discrete I/O expansion block, Modicon TM7, IP67, 8 DI, 24 V DC, 2 A, M12 connector (Modicon TM7 IP67 modular I/O system). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon TM7
Product or component type	Safety discrete I/O expansion block
Range compatibility	Modicon LMC058; Modicon M258
Enclosure material	Plastic
Bus type	TM7 bus
Discrete input number	8
Discrete input voltage	24 V DC
Discrete input logic	Positive logic (sink)
Discrete output number	8
Discrete output voltage	24 V DC

Complementary

Discrete input compatibility	8 at 24 V DC
Discrete input current	6 mA at 24 V DC
Input protection type	Protected against short-circuit; Reverse polarity protection
Discrete output number	8 at 24 V DC
Safety level	SIL 3 conforming to IEC 61508; SIL 3 conforming to IEC 62061; PL = e conforming to EN 13849-1
Safety reliability data	PFD < 1E-5; MTTFd = 2500 years; PFH < 1E-10
Electrical connection	1 male connector M12 - B coding - 4 ways for bus IN; 1 female connector M12 - B coding - 4 ways for bus OUT; 1 male connector M8 - 4 ways for power IN; 1 female connector M8 - 4 ways for power OUT; 2 female connectors M12 - A coding - 5 ways for digital I/O; 2 female connectors M12 - A coding - 8 ways for digital I/O
Operating position	Any position
fixing mode	By 2 screws
Local signalling	2 LEDs for power supply status; 2 LEDs for safety status; 12 LEDs for input/output status
Height	110 mm
Width	53 mm
Depth	42 mm
Net weight	0.198 kg

Environment

Electromagnetic compatibility	Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2; Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test, 2 kV power supply conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 1 kV input/output conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) conforming to IEC 61000-4-5
IP degree of protection	IP67
Marking	CE
Product certifications	CULus
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-25…85 °C
Relative humidity	5…95 % without condensation or dripping water
Operating altitude	0...2000 m
Pollution degree	2
Vibration resistance	7.5 mm (f = 2…8 Hz) conforming to IEC 60721-3-5 Class 5M3; 2 gn (f = 8…200 Hz) conforming to IEC 60721-3-5 Class 5M3; 4 gn (f = 200…500 Hz) conforming to IEC 60721-3-5 Class 5M3
Shock resistance	30 gn for 11 ms conforming to IEC 60721-3-5 Class 5M3
