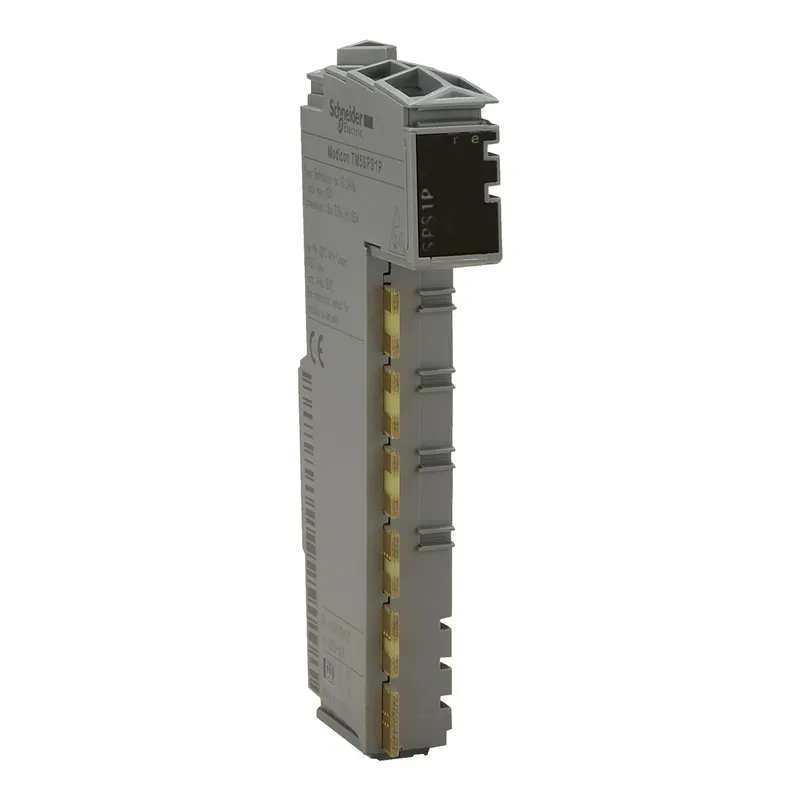

Schneider Electric TM5SPS1P
Power distribution module
- MPN
- TM5SPS1P
- EAN
- 3595864074948
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TM5SPS1P (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TM5SPS1P?
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 0.8W and supplies a 10A current for I/O power segment. This product is part of a flexible and scalable I/O configuration for automation solutions. It is replaced with TM5SPS2 power distribution module. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines. Discontinued by Schneider Electric; the manufacturer's successor is TM5SPS2. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TM5 |
| Product or component type | Power distribution module |
| Product compatibility | Motion controller; Logic controller |
| Range compatibility | Modicon M258; Modicon LMC058 |
Complementary
| Maximum power dissipation in W | 0.8 W |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
Environment
| Marking | CE |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation); 55…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation) |
| Shock resistance | 15 gn for 11 ms |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM5SPS1P: frequently asked questions
Can I still buy the TM5SPS1P now that it is discontinued?
Yes. Schneider Electric has discontinued the TM5SPS1P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the TM5SPS2 as its successor — we can quote both.
When can TM5SPS1P be shipped?
TM5SPS1P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM5SPS1P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM5SPS1P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM5SPS1P, subject to availability and destination.
