Schneider Electric TM5SMM6D2L

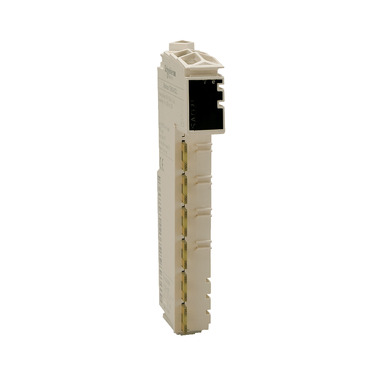

Mixed I/O module, Modicon TM5, module
- MPN
- TM5SMM6D2L
- EAN
- 3595864082073
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TM5SMM6D2L?
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Specifications
Specifications
| Range of product | Modicon TM5 |
| Product or component type | Mixed I/O module |
| Product compatibility | Motion controller, Logic controller |
| Range compatibility | Modicon LMC058, Modicon M258 |
| Discrete input number | 4 |
| Discrete output number | 2 |
| Analogue input number | 1 |
| Analogue output number | 1 |
| Discrete input voltage | 24 V DC (voltage limits: 20.4...28.8 V) |
| Discrete input logic | Sink |
| Discrete input current | 3.3 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Voltage state 1 guaranteed | >= 15 V |
| Input filtering | <= 2 µs hardware, 1 ms by default, <= 25 ms configurable by software |
| Analogue input type | Voltage, input range: +/- 10 V, Current, input range: 0...20 mA/4...20 mA |
| Analogue input resolution | 12 bits + sign for voltage, 12 bits for current |
| Common mode rejection | 70 dB DC for analog input, 70 dB 50 Hz for analog input |
| Output voltage | 24 V DC |
| Input voltage limits | 20.4...28.8 V |
| Discrete output logic | Source |
| Discrete output current | <= 0.5 A per output, <= 1 A |
| Peak output current | 14 A |
| Maximum leakage current | 5 µA (when switched off) for digital output |
| Switching frequency | 100 Hz, resistive for digital output |
| Analogue output type | Voltage: +/- 10 V, Current: 0...20 mA |
| Conversion time | 300 µs for analog output |
| Analogue output resolution | 12 bits + sign, +/- 10 V, 12 bits, 0...20 mA |
| Measurement resolution | 2.441 mV, +/- 10 V, +/- 10 V, 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA |
| Colour | White |
| Response time | <= 250 µs from state 0 to state 1 for digital output, <= 250 µs from state 1 to state 0 for digital output, 1 ms for analog output |
| Input impedance | 7.18 kOhm digital, >= 1 MOhm analog, +/- 10 V |
| Minimum output impedance | 1 kOhm +/- 10 V 0…55 °C, 10 kOhm +/- 10 V 55…60 °C |
| Load impedance ohmic | <= 400 Ohm (output: 0...20 mA) at 0…55 °C, <= 300 Ohm (output: 0...20 mA) at 55…60 °C, <= 300 Ohm (input: 0...20 mA/4...20 mA) |
| Sampling duration | 300 µs for analog input |
| Measurement error | < 0.08 % of full scale (input: +/- 10 V) at 25 °C, < 0.08 % of full scale (input: 0...20 mA/4...20 mA) at 25 °C, < 0.15 % of full scale (output: +/- 10 V) at 25 °C, < 0.15 % of full scale (output: 0...20 mA) at 25 °C |
| Temperature coefficient | +/- 0.009 %FS/°C (input: 0...20 mA/4...20 mA), +/-0.006 %FS/°C (input: +/- 10 V), +/- 0.02 %FS/°C (output: 0...20 mA), +/- 0.02 %FS/°C (output: +/- 10 V) |
| Non-linearity | +/- 0.02 %FS (input: 0...20 mA/4...20 mA), +/- 0.02 %FS (input: +/- 10 V), +/- 0.1 %FS (output: 0...20 mA), +/- 0.1 %FS (output: +/- 10 V) |
| Type of cable | Shielded cable |
| Isolation | No insulation between channels, 500 Vrms AC insulation between channel and bus |
| Supply | Internal |
| [Us] rated supply voltage | 24 V DC -15...20 % |
| Local signalling | 1 LED (green) for power supply (ON), 1 LED (red) for power supply (OFF), 4 LEDs (green) for digital input status, 2 LEDs (orange) for digital output status, 1 LED (orange), 1 LED (green) |
| Wiring mode | 1 wire for digital input/output |
| Current consumption | 2 mA at 5 V DC bus, 73 mA at 24 V DC inputs/outputs |
| Maximum power dissipation in W | 1.75 W |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Protection type | Against reverse polarity for digital output, Against short-circuits for digital output, Thermal overload protection for digital output, Against short-circuits for analog output |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | C-Tick, CSA, CULus, GOST-R |
| Standards | IEC 61131-2, CSA C22.2 No 142, UL 508, CSA C22.2 No 213 |
| Ambient air temperature for operation | 0…55 °C without derating (horizontal installation), 55…60 °C with derating factor (horizontal installation), 0…50 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail, 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 6.000 cm × 2.000 cm (L × W × H), 43.000 g |
| Package 2 | 97 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.520 kg |
