Schneider Electric TM5C24D18T

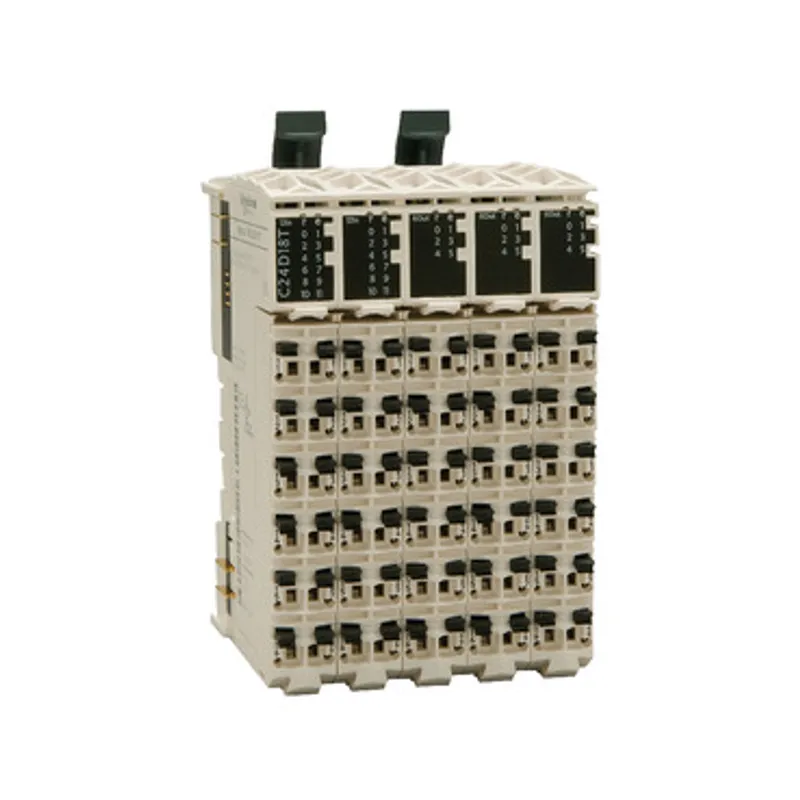

Compact I/O expansion block, Modicon TM5, 42 IO, 24 DI, 18 DO, transistor

MPN
TM5C24D18T
EAN
3595864074351
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM5C24D18T?

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 3 module(s) x 6 transistor output with voltage of 24V DC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Specifications

Specifications

Range of productModicon TM5
Product or component typeCompact I/O expansion block
Discrete input number24 at 24 V DC
Discrete input voltage24 V DC (voltage limits: 20.4...28.8 V)
Discrete input logicSink
Discrete output number18 transistor at 24 V DC
Discrete output logicSource
Discrete output voltage24 V DC (20.4...28.8 V) for transistor, 24 V DC (20.4...28.8 V) for DC
Discrete input current3.75 mA at 24 V DC
Voltage state 1 guaranteed>= 15 V
Voltage state 0 guaranteed<= 5 V
Input impedance6.4 kOhm
Input filtering<= 100 ms hardware, <= 25 ms configurable by software
Discrete output current0.5 A per output
Maximum leakage current5 µA when switched off
Maximum voltage drop<0.3 V at 500 mA for output
Typical current consumption70 mA at 5 V DC, 140 mA at 24 V DC for inputs/outputs
Electrical connectionRemovable spring terminal block
Power dissipation in W3.71 W
Local signalling5 LEDs (green) for power supply, 5 LEDs (red) for power supply, 24 LEDs (green) for input status, 18 LEDs (yellow) for output status
Mounting supportDIN rail
Height99 mm
Width12.5 mm
Depth75 mm
Net weight0.24 kg
IP degree of protectionIP20
MarkingCE
Product certificationsC-Tick, CULus, GOST-R, CSA
StandardsIEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142
Ambient air temperature for operation-10…50 °C (vertical installation), -10…60 °C (horizontal installation)
Ambient air temperature for storage-40…70 °C
Relative humidity5…95 % without condensation
Operating altitude0...2000 m
Pollution degree2
Vibration resistance1 gn (f = 8.4…150 Hz) on DIN rail, 3.5 mm (f = 5…8.4 Hz) on DIN rail
Shock resistance15 gn for 11 ms

Packaging

Package 11 PCE, 11.000 cm × 9.000 cm × 7.500 cm (L × W × H), 278.000 g
Package 236 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.008 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

TM5C24D18T: frequently asked questions

When can TM5C24D18T be shipped?

TM5C24D18T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM5C24D18T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM5C24D18T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM5C24D18T, subject to availability and destination.
