What is the Schneider Electric TM262L01MDESE8T?

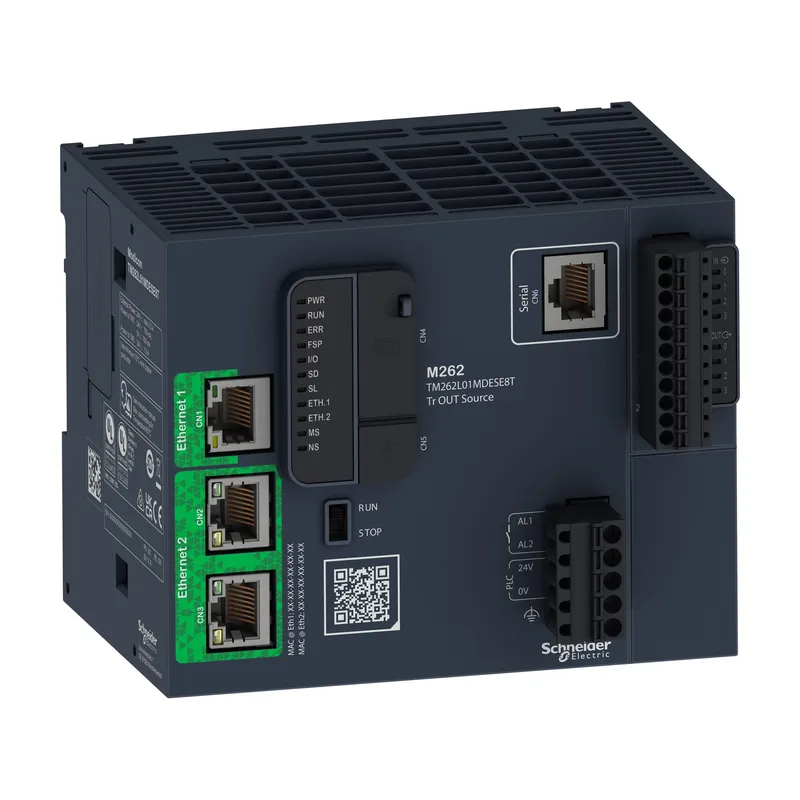

The Modicon M262 distributed PAC module is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 448 discrete I/O channels, 112 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 bus expansion modules. Modicon M262 dPAC is the controller for medium size machines and distributed processes. It embeds both OPC UA client and server to ease its vertical and horizontal integration in the architectures. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor and a 256MB memory capacity, and reaches a 5ns per instruction performance. This logic controller has two communication buses (Ethernet TCP/IP and Serial), one I/O bus, and one I/O port. It weighs 0.655kg (1.444lb). Certified with CE, cULus HazLoc, RCM. Conform to IEC/EN 61131-2, UL 61010-1, UL 61010-2-201, ANSI/ISA 12.12.01-2007, CSA C22.2 No.213. This controller supports Modicon TM3 I/O expansion modules. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productEcoStruxure Automation Expert
Product or component typeDPAC module
[Us] rated supply voltage24 V DC - 15...20 %

Complementary

Supply voltage limits20.4…28.8 V DC
PLC Power Consumption82 W
Inrush current40 A
Overvoltage protectionWith
Maximum number of I/O expansion module7TM3 IO module (local I/O-Architecture); 7TM3 IO module (remote I/O-Architecture)
Execution time for 1 KInstruction0.005 ms
Data backed up1 GB built-in flash memory for backup of user programs
Backup time1000 h at 25 °C
Realtime clockWith
Clock drift<= 10 s/month at 25 °C
Integrated connection typeEthernet 1 with RJ45 connector and 10/100BASE-T interface; Ethernet 2 with 2 RJ45 connector and 100/1000BASE-T interface; Serial link with RJ45 connector and RS232/RS485 interface; TM3 IO bus
Transmission rate57.6 kbit/s for bus length of 15 m for RS485; 57.6 kbit/s for bus length of 3 m for RS232; 10/100 Mbit/s for Ethernet1; 10/100/1000 Mbit/s for Ethernet2
Communication port protocolEtherNet/IP scanner; Modbus TCP client/server; Modbus TCP IO scanner; Modbus SL client/server
Maximum number of connected devicesEtherNet/IP: 64; Modbus TCP: 64; Modbus TCP/EtherNet/IP: 96
Communication serviceOPC UA server (Encrypt); HTTPs Methods (API); NTP client
Local signalling1 LED (green/red) for PWR; 1 LED (green/red) for RUN; 1 LED (green/red) for ERROR (fault); 1 LED (green/red) for stop forced; 1 LED (green/red) for I/O error (I/O); 1 LED (green/orange) for SD card activity; 1 LED (green/orange) for SL activity; 1 LED (green/red) for ETH1 state; 1 LED (green/red) for ETH2 state; 1 LED (green/red) for EIP MS; 1 LED (green/red) for EIP NS
Electrical connectionremovable spring terminal blockfor inputs and outputs; removable spring terminal blockfor connecting the 24 V DC power supply
Maximum cable distance between devicesShielded cable: <30 m for RS485 link; Shielded cable: <15 m for RS232
InsulationBetween supply and internal logic at 500 V AC; Non-insulated between supply and ground
Surge withstand1 kV power lines (DC) common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV relay output differential mode conforming to IEC 61000-4-5; 1 kV input common mode conforming to IEC 61000-4-5; 1 kV transistor output common mode conforming to IEC 61000-4-5
Mounting supportTop hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit
Height100 mm
Depth90 mm
Width125 mm
Net weight0.655 kg

Environment

StandardsUL 61010-1; UL 61010-2-201; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201; CSA C22.2 No 213; ANSI/ISA 12-12-01; IEC 61131-2
Product certificationsCE; cULus; cULus HazLoc Class I Division 2 CSA 22-2 No 213; RCM
Resistance to electrostatic discharge4 kV on contact conforming to IEC 61000-4-2; 8 kV on air conforming to IEC 61000-4-2
Resistance to electromagnetic fields10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to fast transients2 kV (power lines) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4
Resistance to conducted disturbances10 V 0.15...80 MHz conforming to IEC 61000-4-4; 3 V 0.1...80 MHz; 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Electromagnetic emissionConducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBµV/m at 30…230 kHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions at 230…1000 MHz conforming to IEC 55011
Immunity to microbreaks0.01 ms
Ambient air temperature for operation-20…60 °C (horizontal installation); -20…50 °C (vertical installation); -20…45 °C (flat mounting)
Ambient air temperature for storage-40…85 °C
Relative humidity5…95 %, without condensation (in operation); 5…95 %, without condensation (in storage)
IP degree of protectionIP20
Pollution degree2
Operating altitude0...2000 m
Storage altitude0…3000 m
Vibration resistance3.5 mm at 2…8.4 Hz on symmetrical rail; 1 gn at 8.4…200 Hz on symmetrical rail; 3.5 mm at 2…8.4 Hz on panel mounting; 1 gn at 8.4…200 Hz on panel mounting
Shock resistance15 gn for 11 ms
