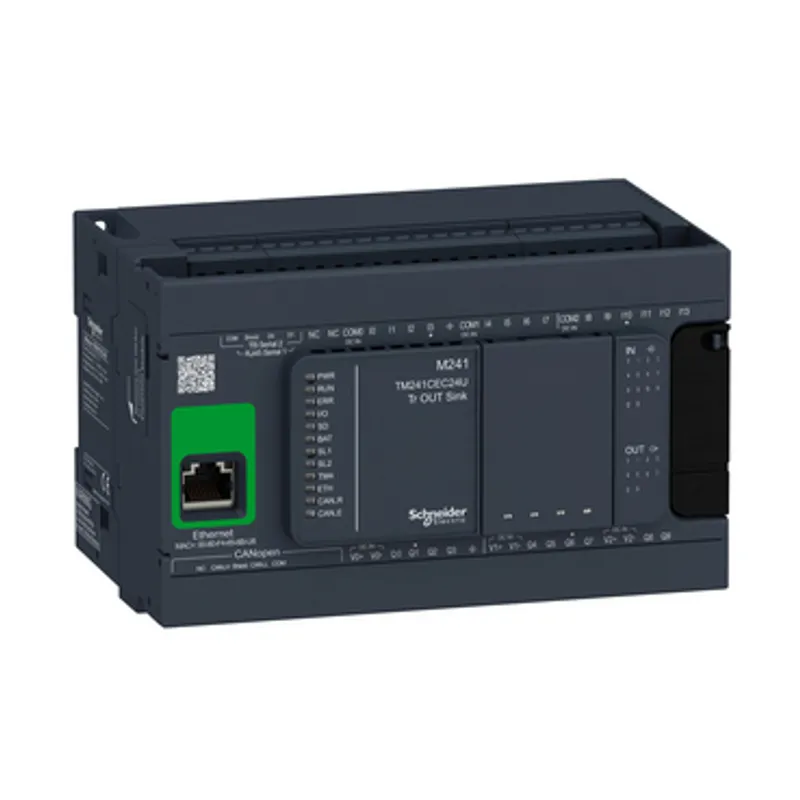

logic controller, Modicon M241, 24 IO, transistor, NPN, Ethernet CAN master

Name: logic controller, Modicon M241, 24 IO, transistor, NPN, Ethernet CAN master
Brand: Schneider Electric
SKU: TM241CEC24U

MPN: TM241CEC24U · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M241
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.53 kg

Shipping & availability

When can TM241CEC24U be shipped?

TM241CEC24U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM241CEC24U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM241CEC24U and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM241CEC24U, subject to availability and destination.

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 10 transistor, 4 fast outputs with ethernet CAN master NPN transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic negative output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with terminal block and RS485 interface, CANopen J1939 with SUB-D 9 male and ethernet with RJ45 . It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Specifications

Range of product	Modicon M241
Product or component type	Logic controller
[Us] rated supply voltage	24 V DC
Discrete input number	14, discrete input 8 fast input conforming to IEC 61131-2 Type 1
Discrete output type	Transistor
Discrete output number	10 transistor 4 fast output
Discrete output voltage	24 V DC for transistor output
Discrete output current	0.5 A for transistor output (Q0...Q9), 0.1 A for fast output (PTO mode) (Q0...Q3)
Discrete I/O number	24
Maximum number of I/O expansion module	7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Supply voltage limits	20.4…28.8 V
Inrush current	50 A
Power consumption in W	32.6…40.4 W (with max number of I/O expansion module)
Discrete input logic	Sink or source
Discrete input voltage	24 V
Discrete input voltage type	DC
Voltage state 1 guaranteed	>= 15 V for input
Voltage state 0 guaranteed	<= 5 V for input
Discrete input current	5 mA for input, 10.7 mA for fast input
Input impedance	4.7 kOhm for input, 2.81 kOhm for fast input
Response time	50 µs turn-on, I0...I13 terminal(s) for input, 50 µs turn-off, I0...I13 terminal(s) for input, <= 2 µs turn-on, I0...I7 terminal(s) for fast input, <= 2 µs turn-off, I0...I7 terminal(s) for fast input, <= 34 µs turn-on, Q0...Q9 terminal(s) for output, <= 250 µs turn-off, Q0...Q9 terminal(s) for output, <= 2 µs turn-on, Q0...Q3 terminal(s) for fast output, <= 2 µs turn-off, Q0...Q3 terminal(s) for fast output
Configurable filtering time	1 s for fast input, 12 ms for fast input, 0 ms for input, 1 ms for input, 4 ms for input, 12 ms for input
Discrete output logic	Negative logic (sink)
Output voltage limits	30 V DC
Maximum current per output common	2 A with Q0...Q3 for fast output, 2 A with Q4...Q7 for output, 1 A with Q8...Q9 for output
Maximum output frequency	20 kHz for fast output (PWM mode), 100 kHz for fast output (PLS mode), 1 kHz for output
Accuracy	+/- 0.1 % at 0.02…0.1 kHz for fast output, +/- 1 % at 0.1…1 kHz for fast output
Maximum leakage current	5 µA for output
Maximum voltage drop	<1 V
Maximum tungsten load	<2.4 W
Protection type	Short-circuit protection, Short-circuit and overload protection with automatic reset, Reverse polarity protection for fast output
Reset time	10 ms automatic reset output, 12 s automatic reset fast output
Memory capacity	64 MB for system memory RAM
Data backed up	128 MB built-in flash memory for backup of user programs
Data storage equipment	<= 16 GB SD card (optional)
Battery type	BR2032 lithium non-rechargeable, battery life: 4 year(s)
Backup time	2 years at 25 °C
Execution time for 1 KInstruction	0.3 ms for event and periodic task, 0.7 ms for other instruction
Application structure	8 event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
Realtime clock	With
Clock drift	<= 60 s/month at 25 °C
Positioning functions	PTO function 4 channel(s) (positioning frequency: 100 kHz), PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz)
Counting input number	4 fast input (HSC mode) at 200 kHz, 14 standard input at 1 kHz
Control signal type	A/B at 100 kHz for fast input (HSC mode), Pulse/direction at 200 kHz for fast input (HSC mode), Single phase at 200 kHz for fast input (HSC mode)
Integrated connection type	Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface, Non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface, USB port with mini B USB 2.0 connector, Ethernet with RJ45 connector, CANopen J1939 with male SUB-D 9 connector
Supply	(Serial 1)serial link supply: 5 V, <200 mA
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232, 480 Mbit/s for bus length of 3 m for USB, 10/100 Mbit/s for Ethernet, 1000 kbit/s for bus length of 20 m for CANopen, 800 kbit/s for bus length of 40 m for CANopen, 500 kbit/s for bus length of 100 m for CANopen, 250 kbit/s for bus length of 250 m for CANopen, 125 kbit/s for bus length of 500 m for CANopen, 50 kbit/s for bus length of 1000 m for CANopen, 20 kbit/s for bus length of 2500 m for CANopen
Communication port protocol	Non isolated serial link: Modbus master/slave
Port Ethernet	10BASE-T/100BASE-TX - 1 port(s) copper cable
ethernet services	SNMP client/server, Modbus TCP slave device, Modbus TCP server, Modbus TCP client, IEC VAR ACCESS, FTP client/server, SQL client, DHCP client, Ethernet/IP adapter, Send and receive email from the controller based on TCP/UDP library, Web server (WebVisu & XWeb system), OPC UA server, DNS client
Local signalling	1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity, 1 LED (green) for CANopen run, 1 LED (green) for CANopen error
Electrical connection	Removable screw terminal blockfor inputs and outputs (pitch 5.08 mm), removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm)
Maximum cable distance between devices	Unshielded cable: <50 m for input, Shielded cable: <10 m for fast input, Unshielded cable: <50 m for output, Shielded cable: <3 m for fast output
Insulation	Between supply and internal logic at 500 V AC, Non-insulated between supply and ground, Between input and internal logic at 500 V AC, Non-insulated between inputs, Between fast input and internal logic at 500 V AC, Between output and internal logic at 500 V AC, Non-insulated between outputs, Between fast output and internal logic at 500 V AC
Marking	CE
Surge withstand	1 kV power lines (DC) common mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV input common mode conforming to IEC 61000-4-5, 1 kV transistor output common mode conforming to IEC 61000-4-5
Web services	Web server
Maximum number of connections	16 Ethernet/IP device, 8 Modbus server
CANopen feature profile	DR 303-1, DS 301 V4.02
Number of server device(s)	63 CANopen:
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit
Height	90 mm
Depth	95 mm
Width	150 mm
Net weight	0.53 kg
Standards	ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 508
Product certifications	RCM, cULus, CE, UKCA, DNV-GL, ABS, LR
Resistance to electrostatic discharge	8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to fast transients	2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (input) conforming to IEC 61000-4-4, 1 kV (transistor output) conforming to IEC 61000-4-4
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011, Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011, Radiated emissions - test level: 40 dBμV/m QP class A at 30…230 MHz conforming to IEC 55011, Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011, Radiated emissions - test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to IEC 55011
Immunity to microbreaks	10 ms
Ambient air temperature for operation	-10…50 °C (vertical installation), -10…55 °C (horizontal installation)
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0…3000 m
Vibration resistance	3.5 mm at 5…8.4 Hz on symmetrical rail, 3 gn at 8.4…150 Hz on symmetrical rail, 3.5 mm at 5…8.4 Hz on panel mounting, 3 gn at 8.4…150 Hz on panel mounting
Shock resistance	15 gn for 11 ms
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.39 cm
Package 1 Width	13.214 cm
Package 1 Length	18.704 cm
Package 1 Weight	661.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	6.14 kg
Unit Type of Package 3	P06
Number of Units in Package 3	64
Package 3 Height	75.0 cm
Package 3 Width	40.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	54.48 kg
Warranty (in months)	18
