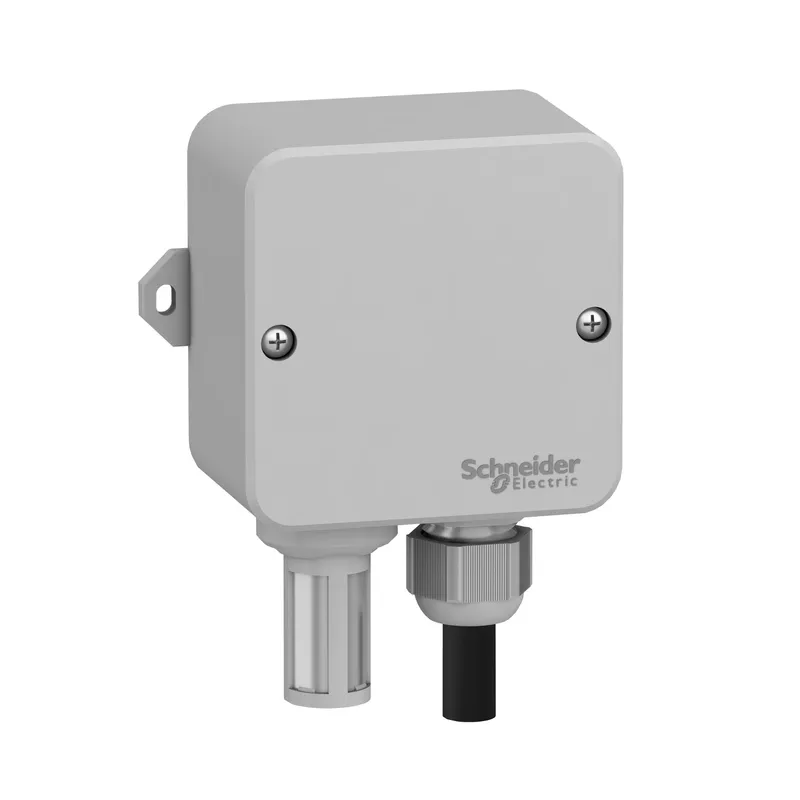

Schneider Electric TM1SHTCN4

Humidity sensor, 4-20 mA, NTC

MPN: TM1SHTCN4
EAN: 3606481390158
Category: Modicon M171/M172/M173

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM1SHTCN4?

"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 40 to 60 degrees Celsius and humidity level from 0 to 100 percent." "This temperature/humidity probe has an IP 65 rate." "It is an outdoor wall-mounting probe." "It has one 4-20mA output (humidity) and one NTC output (temperature)." "Its rated supply voltage is 9 to 28VDC. Its maximum power consumption is 20mA." "It measures 100mm high, 122mm wide, and 50.5mm deep, and weighs 0.140kg." "It is made to control both temperature and humidity in HVAC or Pumping Applications." "It is sold in a 1- or 24-piece package." "It is suitable for panel mounting with 2x diameter4.2mm hole and 89.6mm center distance." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172
Accessory / separate part category	Measurement accessory
Accessory / separate part type	Probe

Complementary

Device mounting	Wall mounted
Mounting support	Mounting box
[Us] rated supply voltage	9...28 V DC
Maximum Power Consumption	20 mA
Output type	Current 4...20 mA +/- 3 % RH; NTC 10 kOhm/25 °C -40…60 °C +/- 1 °C
Product specific application	Humidity control
Electrical connection	Screw-clamp terminals
fixing mode	2 fixing points
Width	100 mm
Height	122 mm
Depth	50.5 mm
Net weight	0.14 kg

Environment

IP degree of protection	IP65
Ambient air temperature for operation	-40…60 °C
Ambient air temperature for storage	-40…70 °C
Relative humidity	0…100 %
Pollution degree	2
Overvoltage category	I
Product certifications	CE; cULus; EAC; UKCA

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TM1SHTCN4PDF
