Schneider Electric TM171OF22R

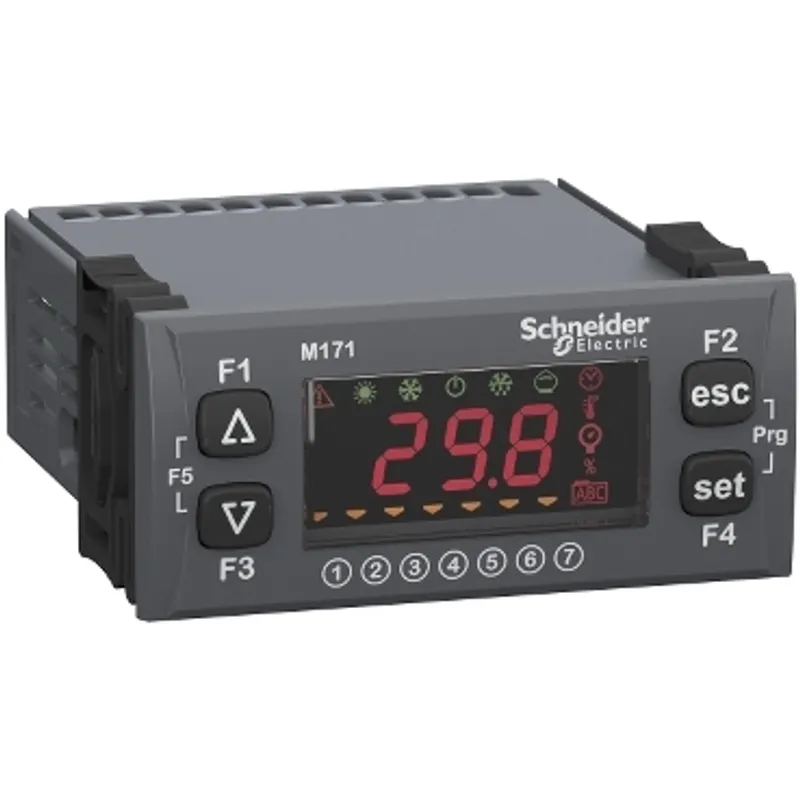

Controller, Modicon M171/172/173, optimized flush mounting 22 IO
- MPN
- TM171OF22R
- EAN
- 3606480752803
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TM171OF22R (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TM171OF22R?
"This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This controller figures 6 digital inputs, 5 configurable analog inputs, 6 digital outputs, 5 analog outputs, and a display." "This programmable controller embeds 1 communication port for LAN expansion bus." "It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display." "DIs are volt free in 1 group, AIs are NTC, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V." "DOs are SPST (2A, 230Vac), AOs are open collectors for 12V PWM/PPM, or 0-10V." "It measures 70mm wide, 76mm deep, 32mm high, and weighs 0.164kg." "This controller is designed for HVAC solutions." "It is certified by CE, CURus, CSA and EAC." "It is compatible with screw terminal blocks, and communication modules." "It is sold in a 1-piece package." "It is designed for flush mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Specifications
Specifications
| Range of product | Modicon M171/M172 |
| Product or component type | Controller |
| Product specific application | HVAC and pumping solution |
| Variant | Programmable |
| Total inputs/outputs | 22 |
| Discrete input number | 6 |
| Discrete output number | 1 for open collector, 3 for relay outputs SPST with same common, 2 for relay outputs SPST with independent common |
| Discrete output current | 2 A for relay |
| Analogue input number | 2 configurable, 3 analog input NTC |
| Analogue output number | 3 voltage, range: 0...10 V, 2 PWM/PPM, range: 20 kHz, 12 V, 35 mA |
| Number of port | 1 LAN expansion bus |
| Input/output number | 5 analog output(s), 6 digital input(s), 5 analog input(s), 6 digital output(s) |
| Discrete input logic | Sink or source (positive/negative) |
| Contacts usage | Volt-free contacts |
| Analogue input type | Voltage 0...5 V (ratiometric), voltage 0...10 V, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, voltage 0...1 V |
| Sensor power supply | 12 V DC at 85 mA, 5 V DC at 20 mA |
| [Us] rated supply voltage | 12...24 V +/- 20 % AC/DC, 24 V +/- 20 % DC |
| Power consumption in W | 18 W at 24...48 V AC/DC |
| Realtime clock | Built-in clock at -10…55 °C |
| Display type | Without display |
| Overvoltage category | II |
| Local signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable |
| Mounting support | DIN rail |
| Width | 140 mm |
| Height | 110 mm |
| Depth | 61.6 mm |
| Net weight | 0.385 kg |
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Standards | EN/IEC 60730 |
| Product certifications | CE, cURus, CSA, EAC |
| Ambient air temperature for operation | -10…55 °C conforming to UL 60730-1 |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 10…90 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
Packaging
| Package 1 | 1 PCE, 12.500 cm × 9.000 cm × 13.200 cm (L × W × H), 226.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.590 kg |
