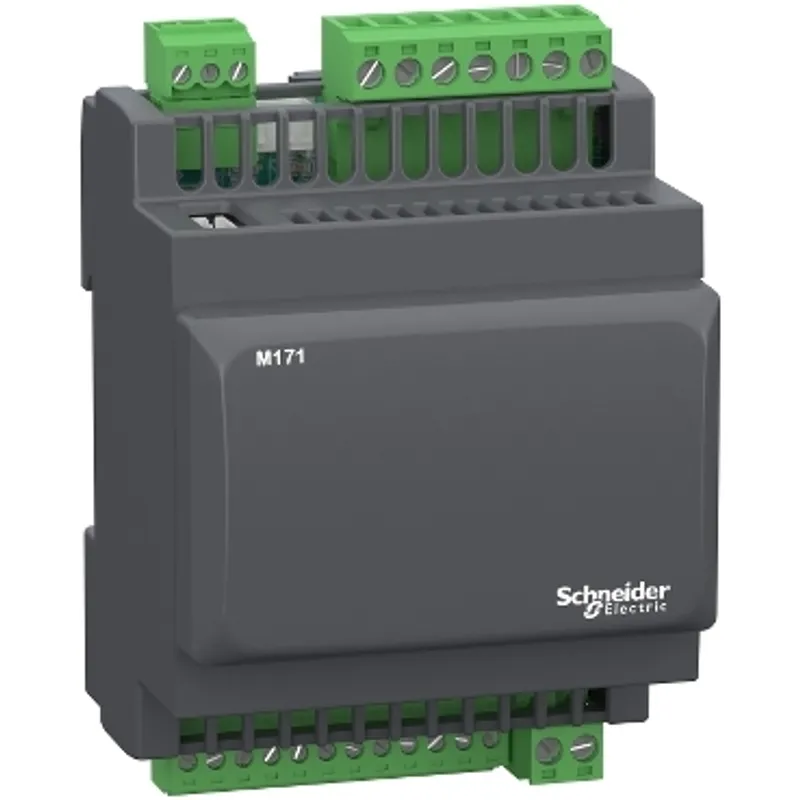

Schneider Electric TM171OBM14R
Controller, Modicon M171/M172/M173, optimized, blind 14 IO, Modbus, 100-240V AC
- MPN
- TM171OBM14R
- EAN
- 3606480752735
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TM171OBM14R (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TM171OBM14R?
"This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This controller figures 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, and 5 analog outputs." "This programmable controller embeds 2 communication ports for RS485 and LAN expansion bus." "It is a programmable logic controller for HVAC and Pumping applications." "DIs are open collectors, AIs are NTC, PT1000, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V." "DOs are SPST or SPDT (2A, 230Vac) with the same common, AOs are open collectors for 12V PWM/PPM, or 0-10V, 4-20mA." "It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg." "This controller is designed for HVAC solutions." "It is certified by CE, CURus, CSA and EAC." "It is compatible with screw terminal blocks, remote display, and communication modules." "It is sold in a 1-piece package." "It is designed for 35mm rail mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Specifications
Specifications
| Range of product | Modicon M171/M172 |
| Product or component type | Controller |
| Product specific application | HVAC and pumping solution |
| Variant | Programmable |
| Total inputs/outputs | 14 |
| Discrete input number | 2 |
| Discrete output number | 1 for relay outputs SPDT with independent common, 3 for relay outputs SPST with same common |
| Discrete output current | 2 A for relay |
| Analogue input number | 2 configurable, 3 analog input NTC |
| Analogue output number | 2 voltage, range: 0...10 V, 2 PWM/PPM, range: 20 kHz, 12 V, 35 mA, 1 current, range: 0...20 mA/4...20 mA |
| Number of port | 1 LAN expansion bus, 1 RS485 - screw terminal block (Modbus serial link) |
| Input/output number | 5 analog output(s), 4 digital output(s), 5 analog input(s) |
| Discrete input logic | Sink or source (positive/negative) |
| Contacts usage | Volt-free contacts |
| Analogue input type | NTC temperature probe - 50...100 °C - resolution: 0.1 °C, Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, voltage 0...1 V, voltage 0...10 V (ratiometric), voltage 0...5 V |
| Sensor power supply | 12 V DC at 85 mA |
| [Us] rated supply voltage | 100...240 V |
| Width | 70.2 mm |
| Height | 87 mm |
| Depth | 61.6 mm |
| Net weight | 0.19 kg |
Packaging
| Package 1 | 1 PCE, 18.500 cm × 9.000 cm × 13.200 cm (L × W × H), 280.000 g |
| Package 2 | 6 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.900 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM171OBM14R: frequently asked questions
Can I still buy the TM171OBM14R now that it is discontinued?
Yes. Schneider Electric has discontinued the TM171OBM14R, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the TM173OBM22RH as its successor — we can quote both.
When can TM171OBM14R be shipped?
TM171OBM14R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM171OBM14R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM171OBM14R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM171OBM14R, subject to availability and destination.
