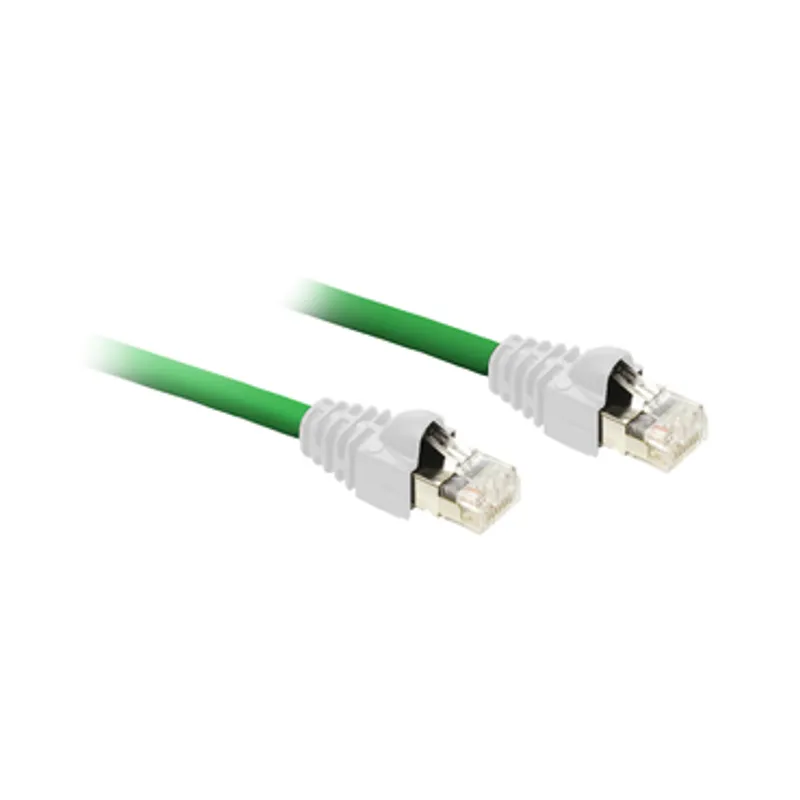

Ethernet ConneXium cable - shielded twisted pair - 2 x rugged RJ45 - CE - 3 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 159 kg |
Shipping & availability
When can TCSECE3M3M3S4 be shipped?
TCSECE3M3M3S4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSECE3M3M3S4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSECE3M3M3S4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSECE3M3M3S4, subject to availability and destination.
Schneider Electric Ethernet ConneXium cable - shielded twisted pair - 2 x rugged RJ45 - CE - 3 m, manufacturer part number TCSECE3M3M3S4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Modicon Networking |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Product or component type | Pre-assembled Ethernet cable with RJ45 connectors |
| Accessory / separate part destination | Ethernet network |
| Cable length | 3 m |
| Transmission support medium | Twisted shielded pairs cable |
| Communication network category | 5e |
| AWG gauge | AWG 24 |
| Electrical connection | 2 connectors, RJ45 straight connector with 8 pin(s) |
| Marking | CE |
| Cover material | PUR |
| IP degree of protection | IP20 |
| Standards | IEC 11801 class D, EN 50173 class D, EIA/TIA-568 category CAT 5E |
| Flame retardance | Class C2 conforming to IEC 322-1, Class C2 conforming to NF C 32070-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 25.500 cm |
| Package 1 Weight | 159.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.750 kg |
| Warranty | 18 months |
