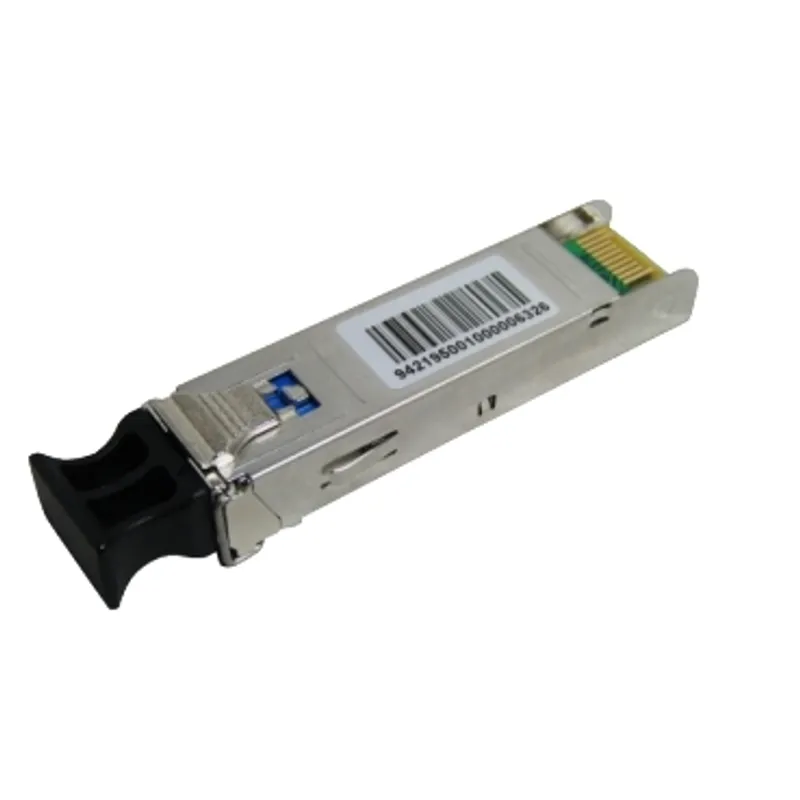

Fiber SFP module for TCSESM switches - 1000BASE-LX, single-mode/multimode
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
Shipping & availability
When can TCSEAAF1LFS00 be shipped?
TCSEAAF1LFS00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSEAAF1LFS00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSEAAF1LFS00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSEAAF1LFS00, subject to availability and destination.
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This fibre optic adaptor has 1000BASE-LX Ethernet port for TCSESM switches. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with LC connector. It supports single mode 62.5/125µm, multi mode 50/125µm and multi mode 62.5/125µm transmission. It weighs 0.04kg.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | SFP module |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Fiber optic adaptor |
| Accessory / separate part designation | Fiber optic adaptor |
| Accessory / separate part destination | Gigabit ports with LC connector |
| Mode of transmission | Single mode 9/125 µm, Multi mode 50/125 µm, Multi mode 62.5/125 µm |
| Product compatibility | MCSESM switch, TCSESM switch |
| Depth | 50 mm |
| Port Ethernet | 1000BASE-LX |
| Width | 20 mm |
| Height | 18 mm |
| Net weight | 0.04 kg |
| Ambient air temperature for operation | 0…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.800 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 17.500 cm |
| Package 1 Weight | 76.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.954 kg |
| Warranty | 18 months |
