Schneider Electric

Schneider Electric SYBT5

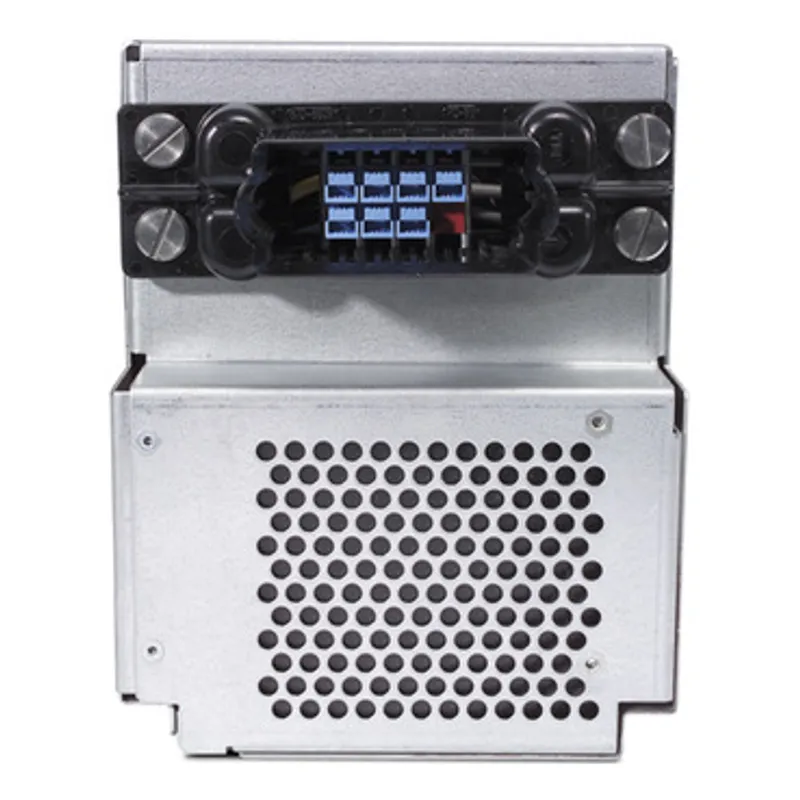

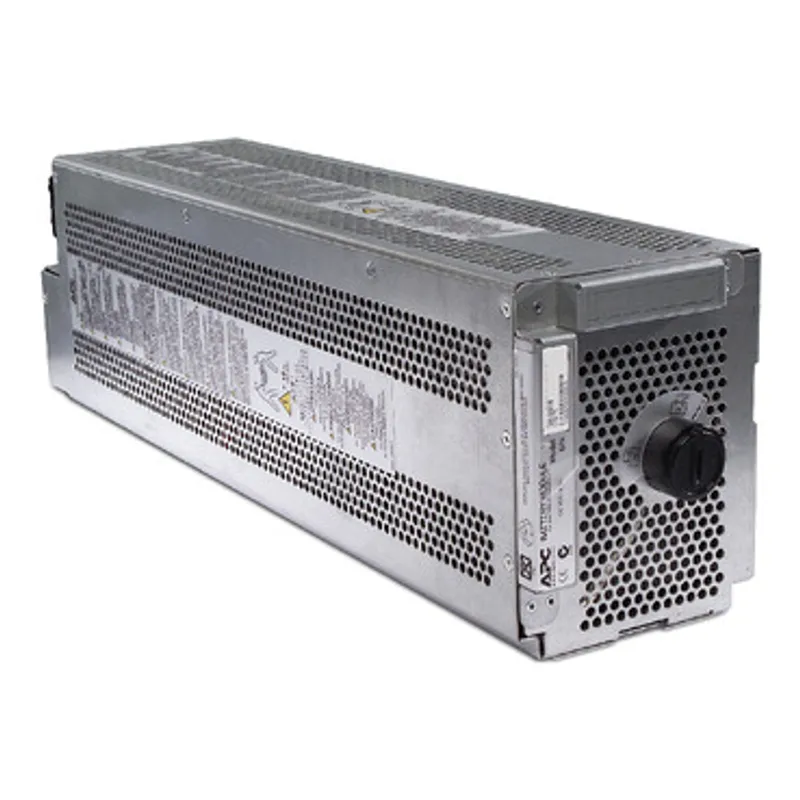

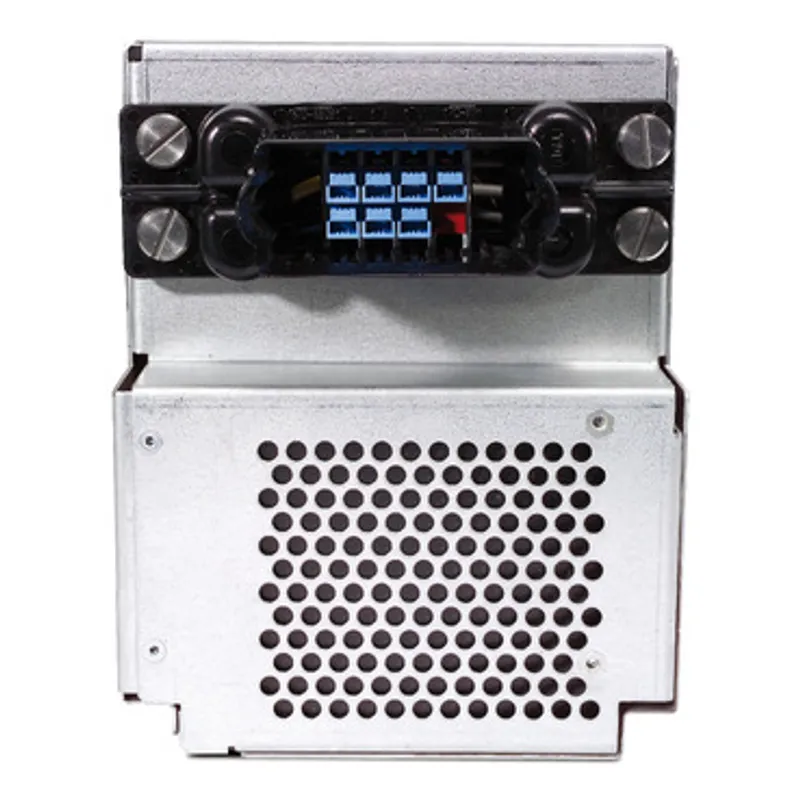

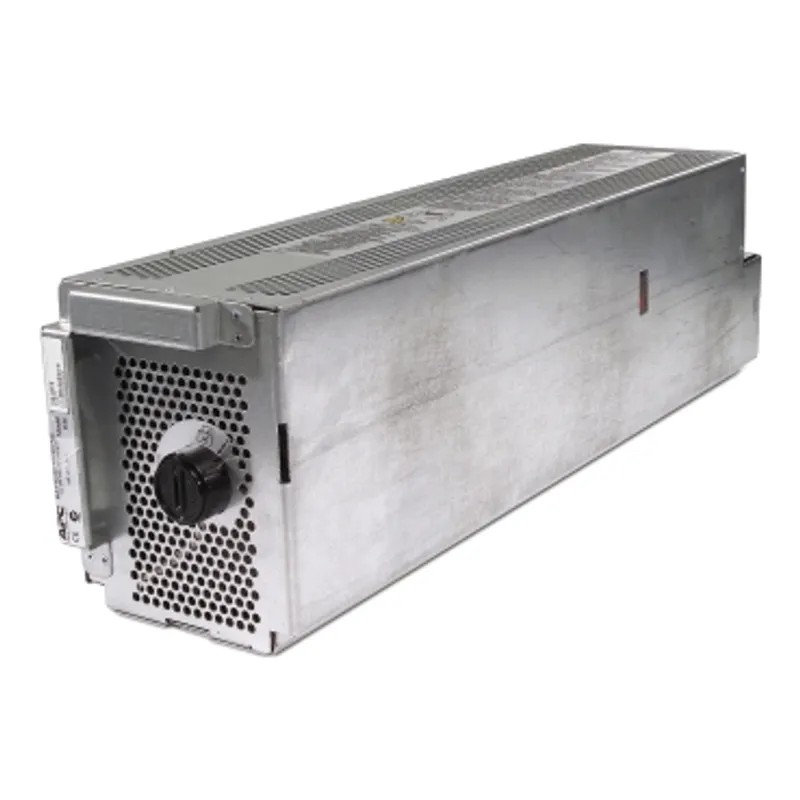

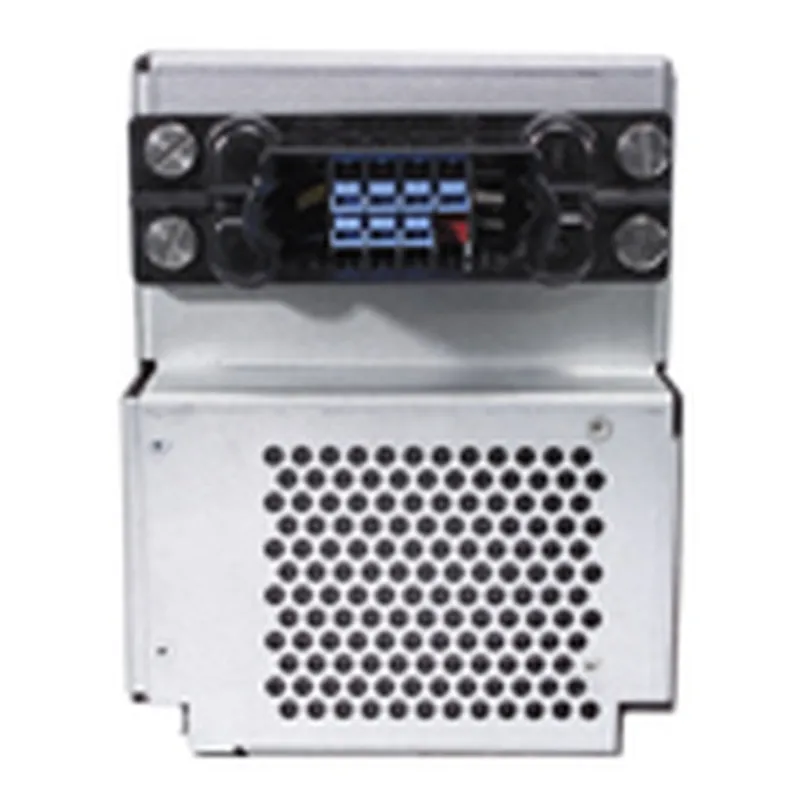

APC Symmetra LX Battery Module

MPN: SYBT5
EAN: 0731304218869
Category: APC Symmetra Battery Systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SYBT5?

The APC Symmetra LX Battery Module offers extended run power protection for servers, networks, and telecommunications. It is a lead-acid battery with a voltage of 120V. It operates within a temperature range of 32 to 104°F and can be stored at 5 to 113°F.

Specifications

Presentation	Extended run power protection for servers, networks, and telecommunications
Product or component type	Battery accessory
Number of rack unit	0U
Number of cables	1.0
Battery type	Lead-acid battery
Provided equipment	Installation guide
Range of product	Symmetra Battery Systems
Battery location	Internal battery
Number of battery blocks per string	10
Number of battery free slots	0
Number of battery filled slots	0
Device mounting	Enclosed battery cartridge
Battery voltage	120 V
Number of battery replacement quantity	1
Height	140 mm
Width	210 mm
Depth	546 mm
Net weight	29.1 kg
Mounting mode	Not rack-mountable
USB compatible	No
Standards	UL 1778
Product certifications	CSA
Ambient air temperature for operation	0…40 °C
Operating altitude	0...10000 ft
Relative humidity	0…95 %
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…4572 m
Storage Relative Humidity	0…95 %

Packaging

Package 1	1 PCE, 76.000 cm × 29.000 cm × 27.000 cm (L × W × H), 30.500 kg
Package 2	8 P12, 120.000 cm × 80.000 cm × 75.000 cm (L × W × H), 256.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet SYBT5PDF

SYBT5: frequently asked questions

When can SYBT5 be shipped?

SYBT5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SYBT5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SYBT5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SYBT5, subject to availability and destination.
