Schneider Electric SYA12K16I

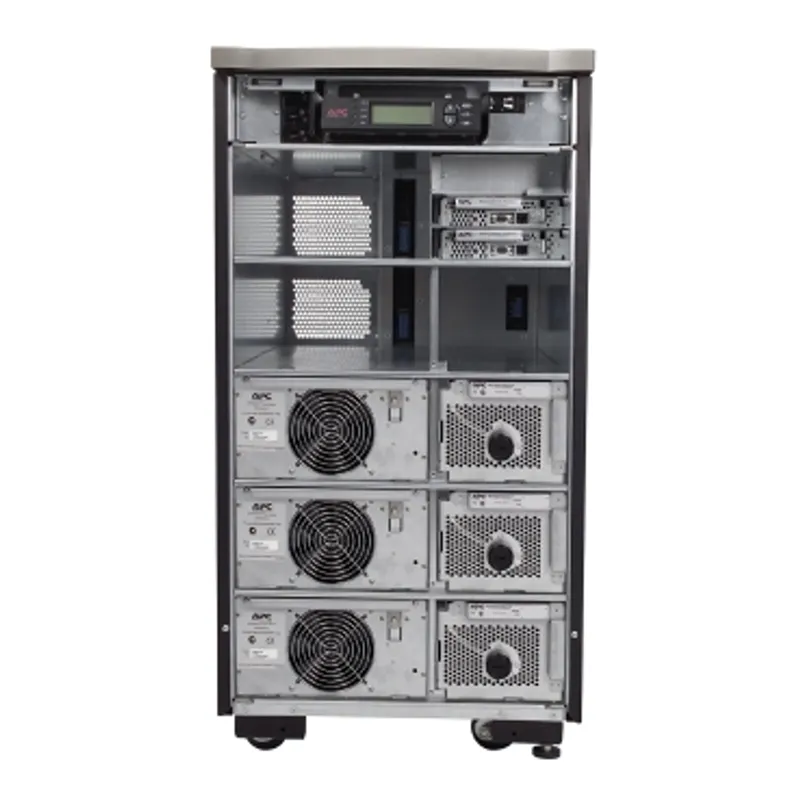

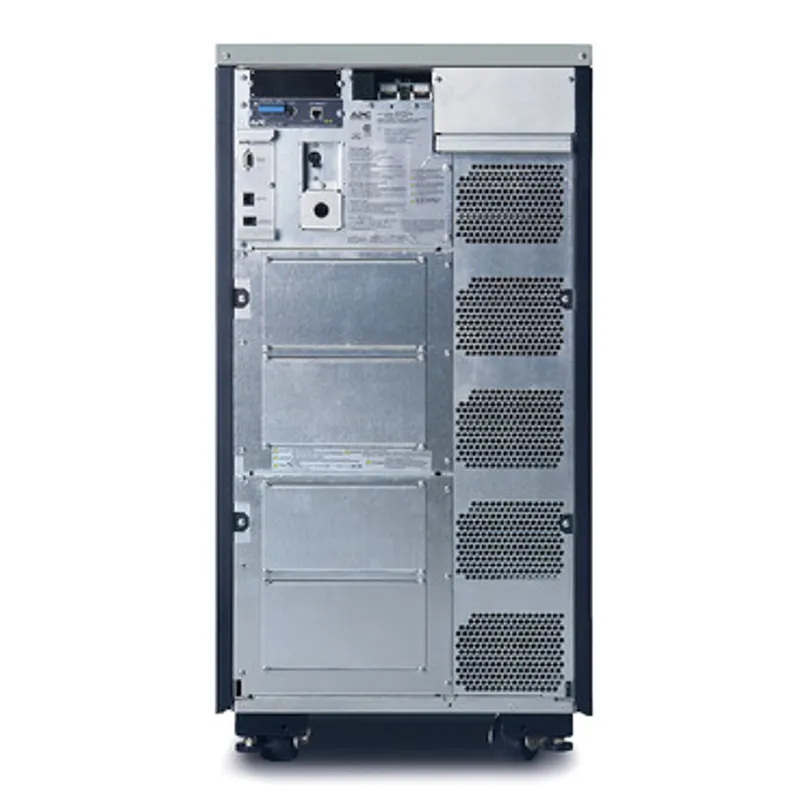

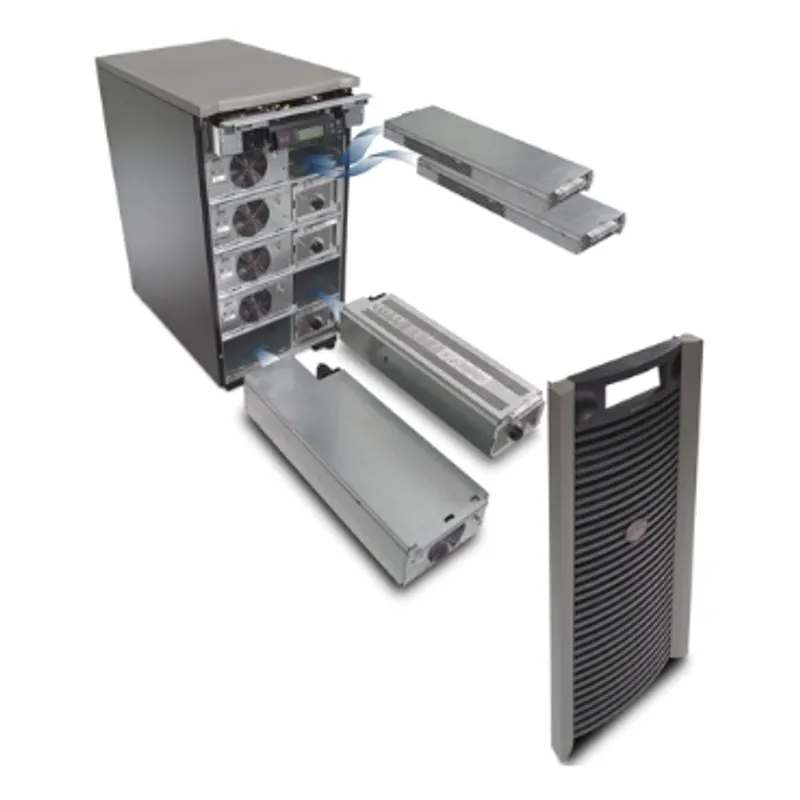

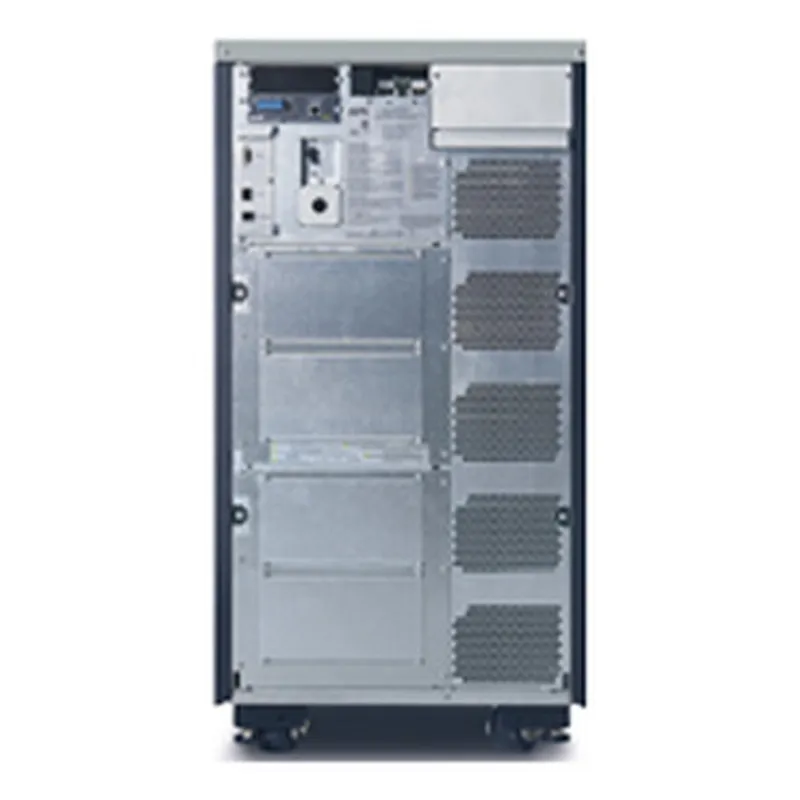

APC Symmetra LX 12kVA scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V

MPN: SYA12K16I
EAN: 3606485318769
Category: APC Symmetra

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric SYA12K16I?

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Specifications

Presentation	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Max. Capacity Used
Main Input Voltage	220 V AC 1 phase, 400 V AC 3 phases, 230 V AC 1 phase, 240 V AC 1 phase, 380 V AC 3 phases, 415 V AC 3 phases
Input voltage	220 V, 240 V, 380 V, 415 V
Input harmonic distortion	Less than 7 % for full load
Cos phi	0.98
Input voltage limits	155...276 V, 290...480 V 3:1
Number of input connectors	1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
Network frequency	45...65 Hz auto-sensing
Output voltage	220 V, 240 V
Rated power in W	8400 W
rated power in VA	12000 VA
Output connector type	Hard wire 3-wire (H N + E) for 1 zone(s)
Bypass type	Internal bypass (automatic and manual)
Crest factor	Up to 5 : 1
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	16000 VA
Maximum configurable power in W	11200 W
Maximum output current	55 A
UPS type	On-Line
Wave type	Sine wave
Output frequency	47...63 Hz sync to mains, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Battery type	Lead-acid battery
Control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	1
Preinstalled device	Network management card 2 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
UPS connectivity	Serial port, Available expansion slot, Pre-installed network management card 3
Colour	Black, Silver
Height	937 mm
Width	483 mm
Depth	726 mm
Net weight	263.64 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	No
Provided equipment	CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card
Number of power module filled slots	3
Number of power module free slots	2
Additional specification	4kVA power increments
Redundant	Yes
Range of product	Symmetra LX
Product or component type	Uninterruptible power supply (UPS)
Performance multiplier	1
Value multiplier	1
Size UPS version	Internetworking, Server, Telecom
Curve equation	Efficiency
Curve fixed loss	0.039
Curve load maximum	100 %
Curve load minimum	5 %
Curve proportional loss	0.0258
Curve square loss	0.0222
Curve test cond ID	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Curve X-axis maximum	100 %
Curve X-axis minimum	0 %
Curve X-axis title	Load
Curve X-axis units	Percentage
Curve Y-axis maximum	100 %
Curve Y-axis minimum	50 %
Curve Y-axis title	Efficiency
Curve Y-axis units	Percentage
Graph display	1
Show note OP temperature	No
UPS size	L
Product certifications	C-Tick, CE, GOST, VDE
Standards	EN 50091-1, EN 50091-2, EN 55022 class A, EN 55024, EN 60950, IEC 60950
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…4572 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	62 dBA
Heat dissipation	3707 Btu/h
Operating altitude	0...10000 ft
Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Extended runtime	1
Number of battery filled slots	3
Number of battery free slots	1
Battery recharge time	3 h
Battery life	3…5 year(s)
Battery charger power	861 W rated
Number of tare power	290 W

Packaging

Package 1

1 PCE, 99.7 cm × 59.9 cm × 118.1 cm (L × W × H), 287.27 kg
