Schneider Electric SY48K48H-PD

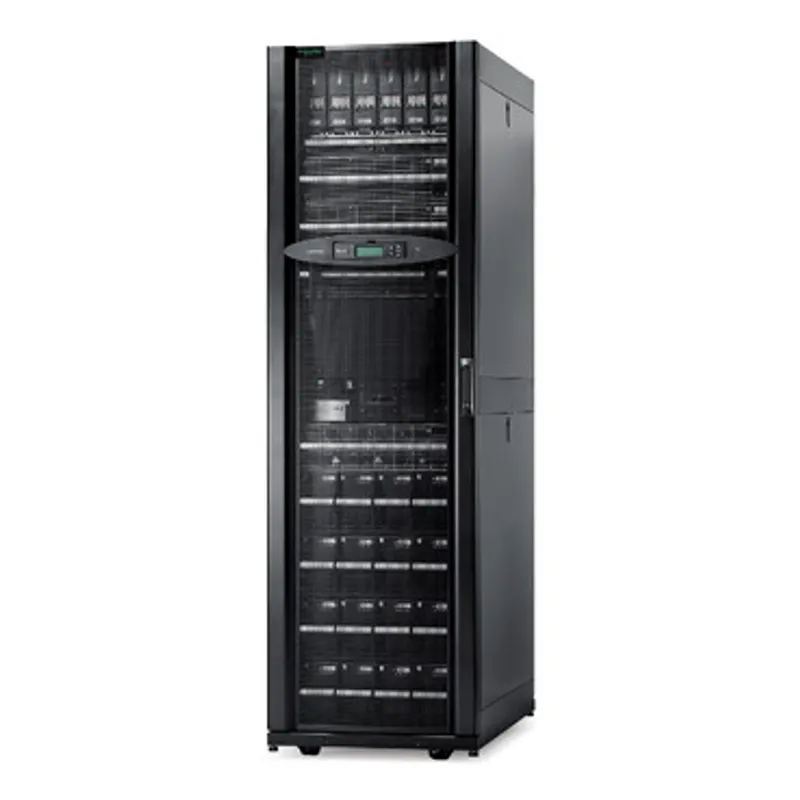

Symmetra PX All-In-One 48kW Scalable to 48kW, 400V
- MPN
- SY48K48H-PD
- Category
- Symmetra PX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SY48K48H-PD?
Scalable power, runtime & distribution in a high-density, single-frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48 kW/48 kVA. Suitable for small and medium data centers applications.
Specifications
Specifications
| Presentation | Scalable power, runtime & distribution in a high-density, single-frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. Suitable for small & medium data center applications. |
| Max. Capacity Used | |
| Main Input Voltage | 400 V 3 phases |
| Input voltage | 380 V, 400 V, 415 V |
| Maximum input current | 98 A |
| Max short time withstand current | 30 kA |
| Input harmonic distortion | Less than 5 % for full load |
| Input protection type | GL fuse |
| Load power factor | 0.5 leading to 0.5 lagging |
| Cos phi | 0.99 |
| Switching current capacity | 100 A |
| Input voltage limits | 340...477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40...70 Hz |
| Output voltage | 380 V, 400 V, 415 V |
| Rated power in W | 48000 W |
| rated power in VA | 48000 VA |
| Bypass type | Built-in static bypass |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 48000 VA |
| Maximum configurable power in W | 48000 W |
| Output harmonic distortion | < 2% for 0 to 100% linear load and < 6% for full non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 1% static and +/- 5% at 100% load step |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (in battery operation) |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised, 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| Required output current protection | 100 A |
| Battery type | VRLA |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| Battery voltage | +/- 192 V (split battery referenced to neutral) |
| Extended runtime | 1 |
| Maximum short-circuit current | 4 kA |
| Number of battery filled slots | 4 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 4 |
| Max current discharge | 165 A |
| Overcurrent protection | 1008 A |
| Battery design life | 5…8 year(s) |
| Discharge battery voltage | +/- 154 V |
| Battery charger power | 4593 W rated |
| Battery overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 2 |
| Preinstalled device | Network management card with CAN |
| Colour | Black |
| Height | 199.1 cm |
| Width | 60 cm |
| Depth | 107 cm |
| Net weight | 796 kg |
| USB compatible | No |
| Provided equipment | Network management card, Start-up service |
| Bypass voltage tolerance | +/- 10 % settable from +/- 4/6/8 and 10 % |
| Bypass wiring configuration | 5 wire (3P + N + E) |
| Max bypass input current | 80 A |
| Bypass current protection | 80 A |
| Number of power module filled slots | 3 |
| Number of power module free slots | 0 |
| Redundant | Yes |
| Product certifications | EUROBAT |
| Standards | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| NEMA degree of protection | NEMA 1 |
| Acoustic level | 61 dBA |
| Heat dissipation | 7719 Btu/h |
| Operating altitude | 0...3333 ft |
Packaging
| Package 1 | 1 PCE, 84.8 cm × 121 cm × 214 cm (L × W × H), 858 kg |
