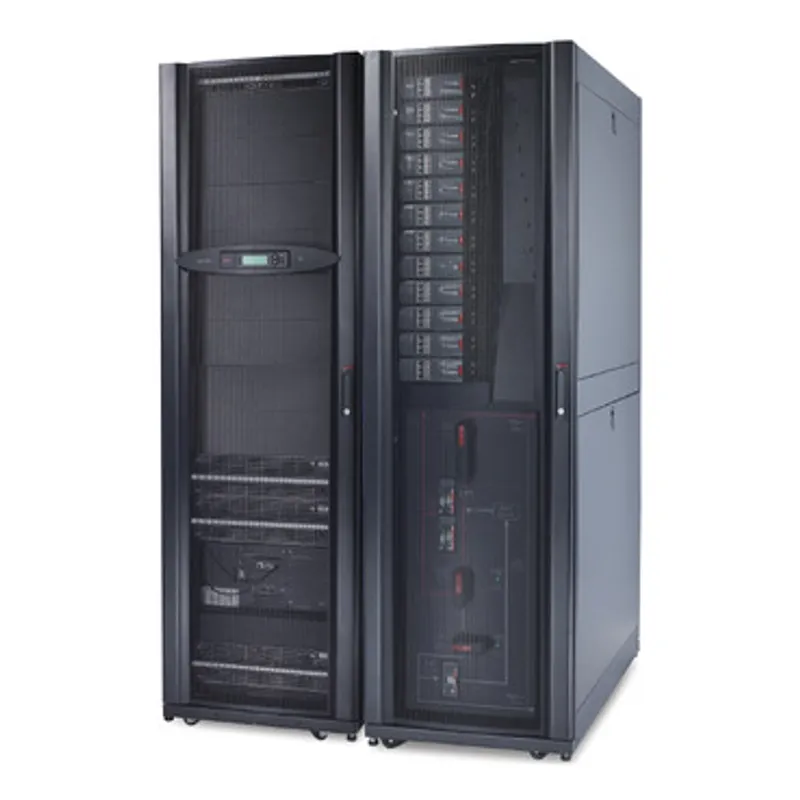

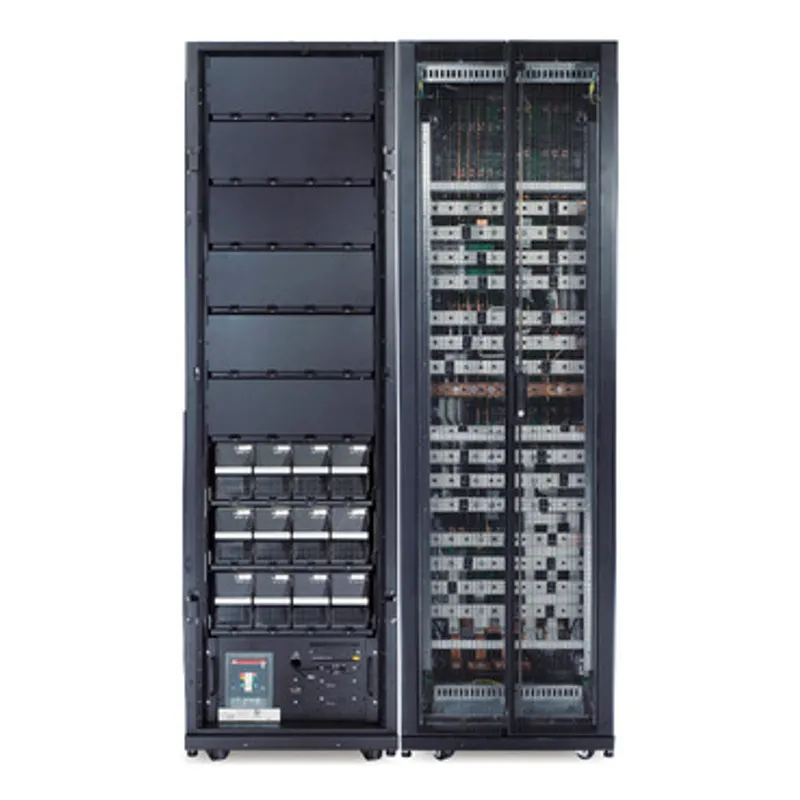

Symmetra PX 32kW Scalable to 160kW, 400V w/ Integrated Modular Distribution

Name: Schneider Electric SY32K160H-PD – Symmetra PX 32kW Scalable to 160kW, 400V w/ Integrated Modular Distribution
Brand: Schneider Electric
SKU: SY32K160H-PD

MPN: SY32K160H-PD · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Symmetra PX
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1095.4 kg

Shipping & availability

When can SY32K160H-PD be shipped?

SY32K160H-PD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SY32K160H-PD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SY32K160H-PD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SY32K160H-PD, subject to availability and destination.

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center up to 160 kW/160 kVA. Suitable for small to medium data centers or individual zones of large data centers.

Specifications

Presentation	A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center up to 160kW/160kVA. Suitable for small to medium data centers or individual zones of large data centers.
Lead time	Usually Ships within 3 Weeks
Max. Capacity Used
Main Input Voltage	400 V 3 phases
Input voltage	380 V, 400 V, 415 V
Maximum input current	59 A
Max short time withstand current	30 kA
Input harmonic distortion	Less than 5 % for full load
Input protection type	GL fuse
Load power factor	0.5 leading to 0.5 lagging
Cos phi	0.99
Switching current capacity	100 A
Input voltage limits	340...477 V
Number of input connectors	1 hard wire 5-wire (3P + N + E)
Network frequency	40...70 Hz
Output voltage	380 V, 400 V, 415 V
Rated power in W	32000 W
rated power in VA	32000 VA
Output connector type	Hard wire 5-wire (3P + N + E) for 1 zone(s)
Bypass type	Built-in static bypass
Harmonic distortion	Less than 2 %
Maximum configurable power in VA	160000 VA
Maximum configurable power in W	160000 W
Output harmonic distortion	< 2% for 0 to 100% linear load and < 5% for full non-linear load
Output overload operation	10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance	+/- 1% static and +/- 5% at 100% load step
UPS type	Double conversion online
Wave type	Sine wave
Efficiency	95 % (full load), 95 % (half load), 94 % (in battery operation)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Neutral output current	80 A
Required output current protection	250 A
Battery type	VRLA
Additional information	Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Battery voltage	+/- 192 V (split battery referenced to neutral)
Extended runtime	1
Maximum short-circuit current	2 kA
Number of battery filled slots	3
Number of battery free slots	6
Battery recharge time	3.5 h
Number of battery replacement quantity	4
Max current discharge	110 A
Overcurrent protection	756 A
Battery design life	5…8 year(s)
Discharge battery voltage	+/- 154 V
Battery charger power	2954 W rated
Battery overload operation	10 minutes at 125% and 60 seconds at 150%
Control panel	Multifunction LCD status and control console
Emergency power off	Yes
Free slots	2
Preinstalled device	Network management card with CAN
Colour	Black
Height	199.1 cm
Width	120 cm
Depth	107 cm
Net weight	1095.4 kg
USB compatible	No
Provided equipment	Network management card, Start-up service, User manual
Bypass wiring configuration	5 wire (3P + N + E)
Max bypass input current	250 A
Bypass current protection	250 A
Number of power module filled slots	2
Number of power module free slots	8
Redundant	Yes
Product certifications	EUROBAT
Standards	EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…15240 m
IP degree of protection	IP20
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
NEMA degree of protection	NEMA 1
Acoustic level	61 dBA
Heat dissipation	5146 Btu/h
Operating altitude	0...3333 ft
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	214 cm
Package 1 Width	121 cm
Package 1 Length	169.6 cm
Package 1 Weight	1189 kg
Warranty (in months)	12
