Schneider Electric SXWADWIFI10002
WiFi Module, SpaceLogic, Connects via WiFi to Advanced Display V3
- MPN
- SXWADWIFI10002
- EAN
- 3606487088493
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SXWADWIFI10002?

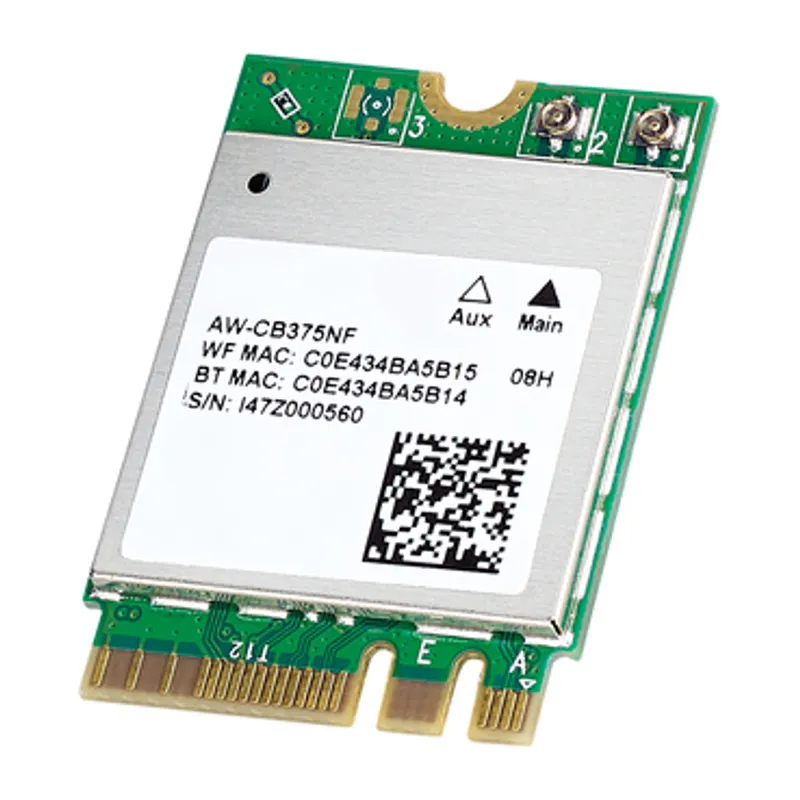

The SpaceLogic Advanced Display V3 Wi-Fi module is an optional accessory for Advanced Display V3. It allow Wireless communication between ADv3 and EcoStruxure BMS servers (such as AS-P & AS-B) connected to a wireless access point. It is an M.2 for factor card which is inserted into an expansion slot on the ADv3 main board. Wi-Fi module comes with an adhesive mount Wi-Fi antenna. Wi-Fi module is useful to utilize Wireless network at site allowing the installation of ADv3 far from the BMS servers.
Specifications
Specifications
| Provided equipment | Wi-Fi module, Wi-Fi antenna |
| Width | 22 mm |
| Product or component type | Communication module |
| Ambient air temperature for storage | -40…85 °C |
| Range | SpaceLogic |
| Ambient air temperature for operation | 0…70 °C |
| fixing mode | Adhesive tape, Insertion into a M.2 connector |
| Relative humidity | 15…95 % RH, non-condensing |
| Standards | EN 301-489-1:v1.9.2, EN 301-489-17:v2.2.1, FCC CFR 47 part 15 Subpart B class B, FCC Part 15 Subpart C 15.247, RSS 210:2010 Annexe 8, ETSI EN 300 328:v2.1.1 |
| Communication network type | Wi-Fi IEEE 802.11 b/g/n at 2.4 GHz, Wi-Fi IEEE 802.11 a/b/g/n at 5 GHz |
| Range compatibility | SpaceLogic SmartX HMI Advanced Display v3 |
| Product certifications | CE, ANATEL, IC, FCC, Cofetel, RCM, RoHS |
Packaging
| Package 1 | 1 PCE, 17.526 cm × 15.494 cm × 8.128 cm (L × W × H), 72.575 g |
