Schneider Electric SXWADBUND10013

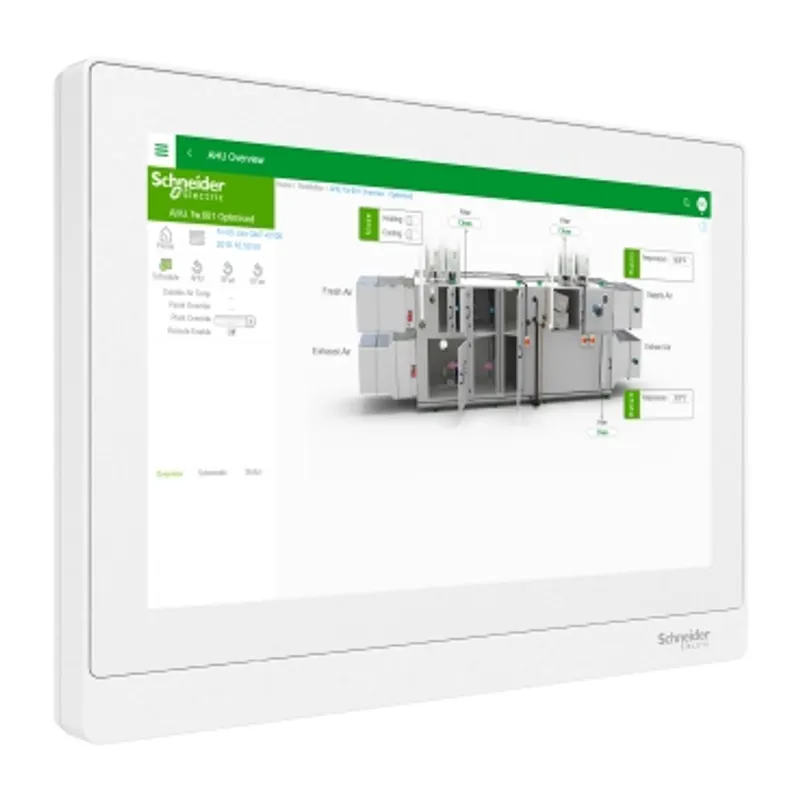

Touch Screen Interface, SpaceLogic, Advanced Display v3 refresh, 10.1" HMI High-resolution Display, 24VAC and DC
- MPN
- SXWADBUND10013
- EAN
- 3606487191735
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SXWADBUND10013?
SpaceLogic Advanced Display 10.1-inch V3 bundle includes HMI device, cable fitting with nut, and earth ground screw with washer. It can be locked to an application such as EcoStruxure Building Operation WebStation to create a tool for local operation of an EcoStruxure BMS. It provides an interface through which users can locally access EcoStruxure BMS servers from an HMI terminal installed on a control cabinet. The HMI is based on an Android platform with high-resolution touchscreen display (1280 x 800 pixels). Can be supplied with 24VAC input using isolated Y-cables. Its dimensions are 195.6 mm (7.7 in.) in height, 258 mm (10.2 in.) in width, 25 mm (1.0 in.) in depth and the display size is 255 mm (10.1 in.). Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP54. The HMI can be installed on a control cabinet. The HMI can communicate with SpaceLogic servers with Y-shaped USB cables (SXWADUSBC10002 or SXWADUSBC10003).
Specifications
Specifications
| Operating system | Android 8.1 |
| Embedding depth | 15.2 mm |
| Height | 195.6 mm |
| Enclosure material | ABS/PC |
| Range | SpaceLogic |
| Ambient air temperature for storage | -20…60 °C |
| Depth | 25 mm |
| Current consumption | 1.27 A |
| Flame retardance | UL94-V0 |
| Width | 258 mm |
| Mounting mode | Panel-mounted |
| Product certifications | CE, FCC, UL 60950, RCM |
| Net weight | 0.933 kg |
| Product or component type | HMI |
| Colour | White |
| [In] rated current | 1 A |
| Display type | TFT LCD touchscreen |
| Display size | 10.1 inch |
| Ambient air temperature for operation | 0…40 °C |
| Display resolution | 1280 x 800 pixels |
| Communication network type | IEEE 802.11 b/g/n at 2.4 GHz |
| [Us] rated supply voltage | 24 V AC +/- 10 %, 24 V DC +/- 10 % |
| Range compatibility | SpaceLogic AS, SpaceLogic AS-P, SpaceLogic AS-B |
| Standards | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:ed. 2:2005+Am1:2009+Am2:2013, UL 60950-1:ed. 2:2014, CSA C22.2 No. 60950-1-07:ed. 2:2014, EN 55024:2010, FCC part 15 Subpart B class B |
| Relative humidity | 0…95 % RH, non-condensing |
| Number of port | 1, connector type: USB type C |
| Processor name | Intel Celeron N3350 dual core at 1.1 GHz |
| Memory type | 2 GB RAM |
| Communication port protocol | USBNet: USB 2.0 |
| Supply | External power supply |
| IP degree of protection | IP54 |
Packaging
| Package 1 | 1 PCE, 36.500 cm × 29.000 cm × 11.500 cm (L × W × H), 1.432 kg |
| Package 2 | 2 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.201 kg |
