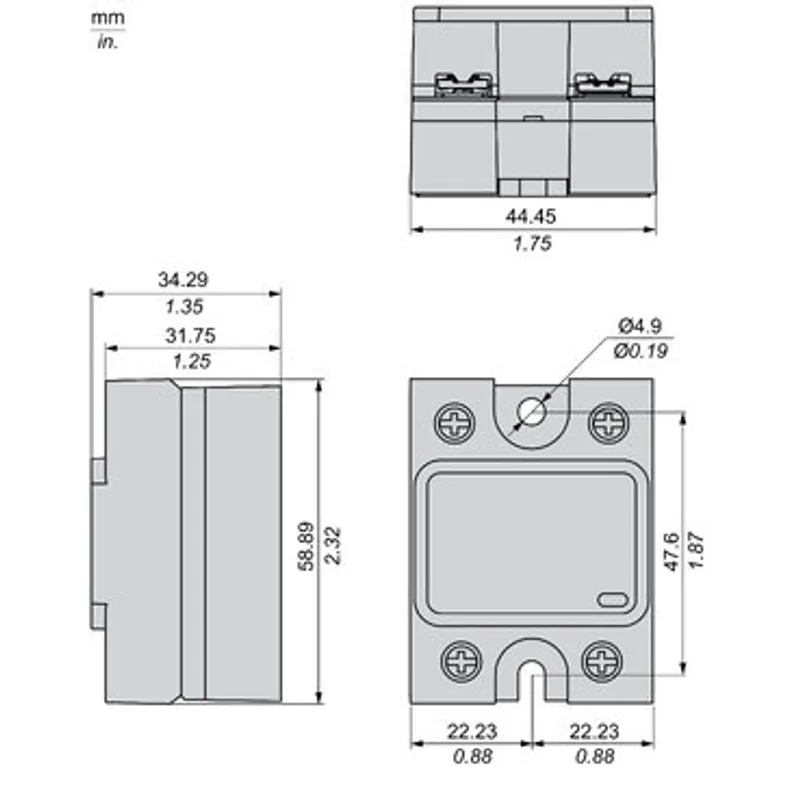

single phase relay, Harmony Solid State Relays, 12A, panel mount, DC switching, input 3.5 to 32V DC, output 1 to 150V DC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Solid State Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 89.2 kg |
Shipping & availability
When can SSP1D412BD be shipped?
SSP1D412BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSP1D412BD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSP1D412BD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSP1D412BD, subject to availability and destination.
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 12A, is controlled withA 3.5V to 32V DC circuit, has a rated load voltage of 1V to 150V DC output. It also has a test button for easy debugging, testing and commissioning It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Panel mount relay |
| Device short name | SSP1 |
| Mounting support | Panel |
| Number of phases | 1 phase |
| [In] rated current | 12 A |
| Solid state output type | DC switching, Mosfet output |
| Output switching mode | DC switching |
| test button | Without test button |
| [Uc] control circuit voltage | 3.5...32 V DC |
| Minimum switching voltage | 3.5 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 0.1 ms (turn-on), 0.1 ms (turn-off) |
| Input current | 10…15 mA |
| Output voltage | 1...150 V DC |
| Load current | 0.001…12 A |
| Surge current | 31 A for 10 ms |
| Co-ordination type | Type 1 - 10 A miniature circuit breaker (MCB) - curve B, Type 2 - 6 A miniature circuit breaker (MCB) - curve B |
| Maximum leakage current | 0.3 mA off-state |
| Maximum voltage drop | <2.8 V on-state |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 50 pF for input/output |
| Dielectric strength | 2.5 kV AC for input/output, 2.5 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 2.5 kV output to case |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input, Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, Forked type tag connectors: 9.2 x 4 mm for input, Ring lugs: 9.2 x 4 mm for input, Forked type tag connectors: 11.7 x 4.5 mm for output, Ring lugs: 11.7 x 4.5 mm for output |
| Thermal resistance | 0.71 °C/W junction to case |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Safety reliability data | B10d = 1731395, MTTFd = 1875.9 years |
| Net weight | 89.2 g |
| Device presentation | Complete product |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | CE, UL, CSA, EAC |
| Marking | CSA, UL, CE, EAC |
| Standards | IEC 62314, UL 508, CSA C22.2 No 14-13, IEC 60950-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.800 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 92.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.134 kg |
| Warranty (in months) | 18 |
