Schneider Electric SRV72BP-9A
APC Easy UPS On-Line SRV Battery Pack for 2/3kVA Extended runtime model, 72V
- MPN
- SRV72BP-9A
- EAN
- 0731304343370
- Category
- APC Smart-UPS Battery Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRV72BP-9A?

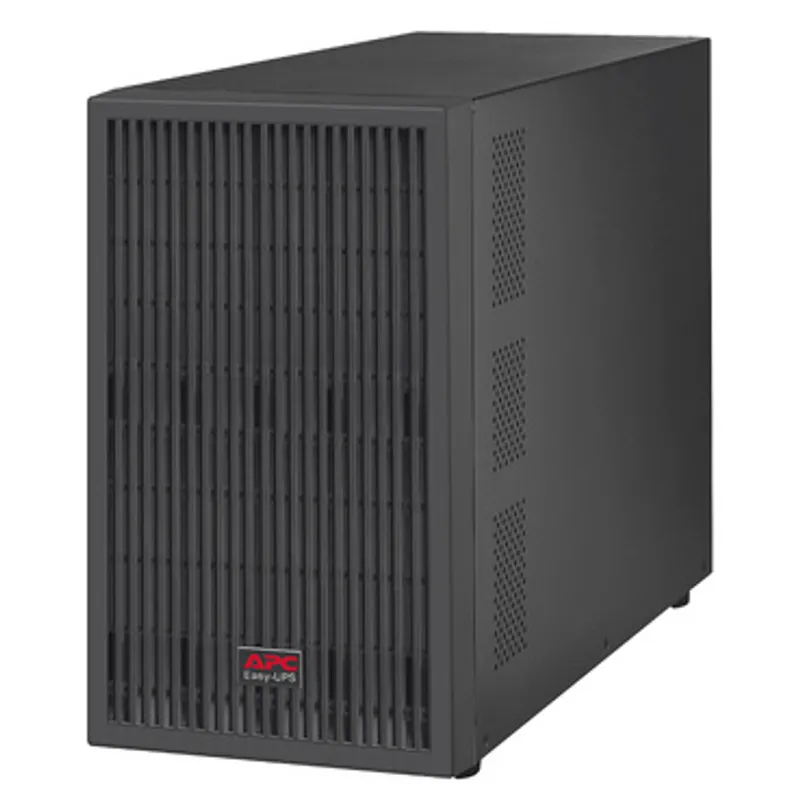

This APC Easy UPS SRV Battery Pack SRV72BP-9A, connected with compatible SRV On-Line UPS, provides extended runtime during prolonged power outages. This 72V SRV tower battery pack is compatible with 2kVA/3kVA SRV Extended Runtime UPS models. The extended battery pack is a lead-acid battery with a 2-year warranty.
Specifications
Specifications
| Product or component type | External battery pack |
| Battery type | Lead-acid battery |
| Provided equipment | User manual, Battery cable |
| Range of product | Easy UPS On-Line |
| Number of battery blocks per string | 6 |
| Device mounting | Floor mounted |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery voltage | 72 V |
| Colour | Black |
| Height | 336 mm |
| Width | 190 mm |
| Depth | 425 mm |
| Net weight | 38 kg |
| Mounting mode | Not rack-mountable |
| USB compatible | No |
| Product certifications | CE, UKCA, EAC, EN/IEC 62040-1 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
Packaging
| Package 1 | 1 PCE, 32.500 cm × 56.500 cm × 46.500 cm (L × W × H), 40.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SRV72BP-9A: frequently asked questions
When can SRV72BP-9A be shipped?
SRV72BP-9A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRV72BP-9A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRV72BP-9A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRV72BP-9A, subject to availability and destination.
