Schneider Electric SRV192RBP-7A

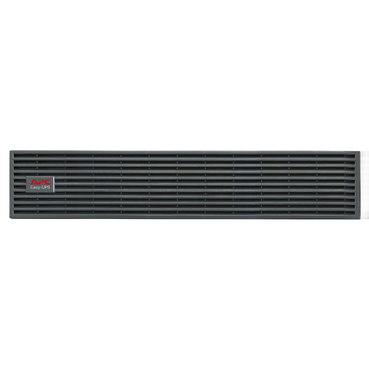

APC Easy UPS On-Line SRV Battery Pack (5/6kVA) for Standard Runtime Model 192V, 1344VAh, rackmount with kit, 2U
- MPN
- SRV192RBP-7A
- EAN
- 0731304343325
- Category
- APC Smart-UPS Battery Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRV192RBP-7A?
This APC Easy UPS SRV Battery Pack, connected with compatible SRV On-Line UPS, provides backup during power outages. This 192V SRV rackmount battery pack is compatible with 5kVA/6kVA SRV rackmount Standard Runtime UPS models. The extended battery pack is a lead-acid battery with a 2-year warranty.
Specifications
Specifications
| Product or component type | External battery pack |
| Number of rack unit | 2U |
| Battery type | Lead-acid battery |
| Provided equipment | User manual, Rack mounting brackets, Battery cable |
| Range of product | Smart-UPS Battery Systems |
| Number of battery blocks per string | 16 |
| Device mounting | Rack mount |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery voltage | 192 V |
| Colour | Black |
| Height | 86.5 mm |
| Width | 438 mm |
| Depth | 710 mm |
| Net weight | 47 kg |
| Mounting mode | Rack-mounted with kit |
| USB compatible | No |
| Product certifications | CE, UKCA, EAC, EN/IEC 62040-1 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
Packaging
| Package 1 | 1 PCE, 83.6 cm × 56.5 cm × 24.5 cm (L × W × H), 53 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SRV192RBP-7A: frequently asked questions
When can SRV192RBP-7A be shipped?
SRV192RBP-7A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRV192RBP-7A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRV192RBP-7A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRV192RBP-7A, subject to availability and destination.
