Schneider Electric SRTL1000RMXLI

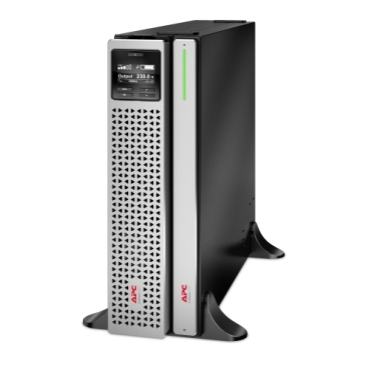

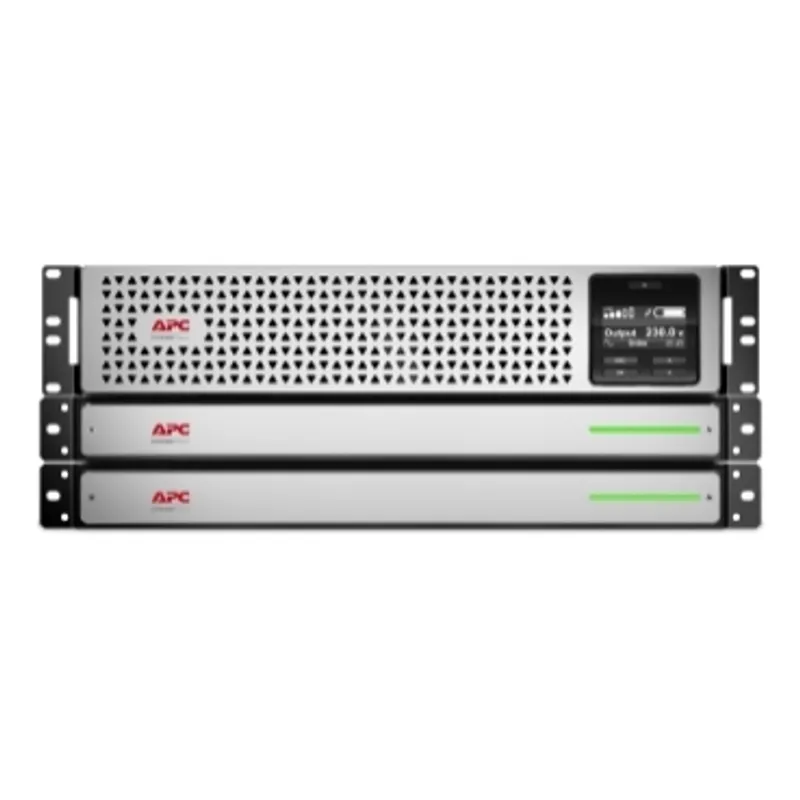

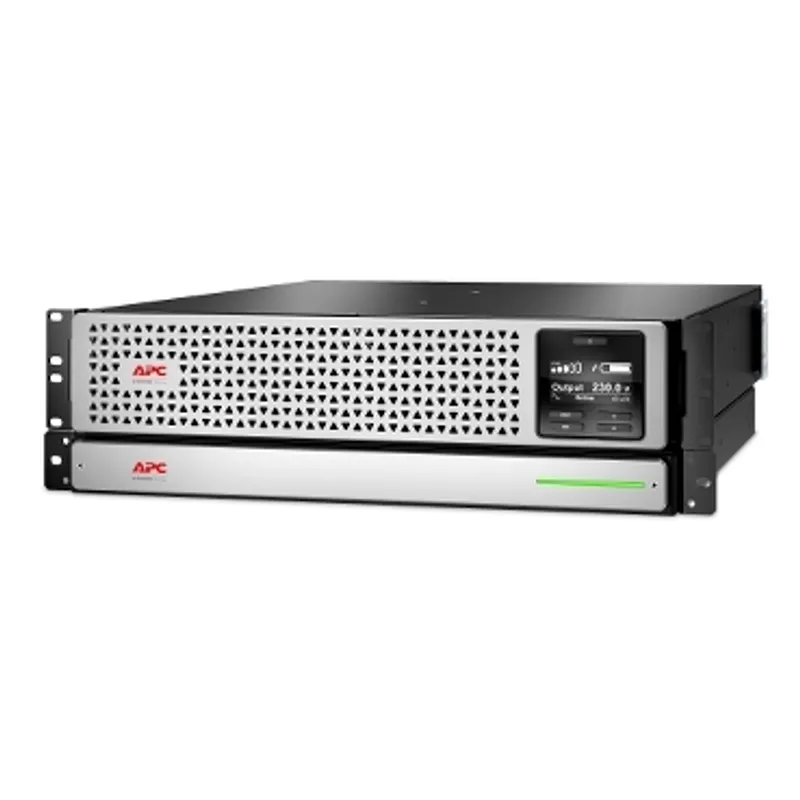

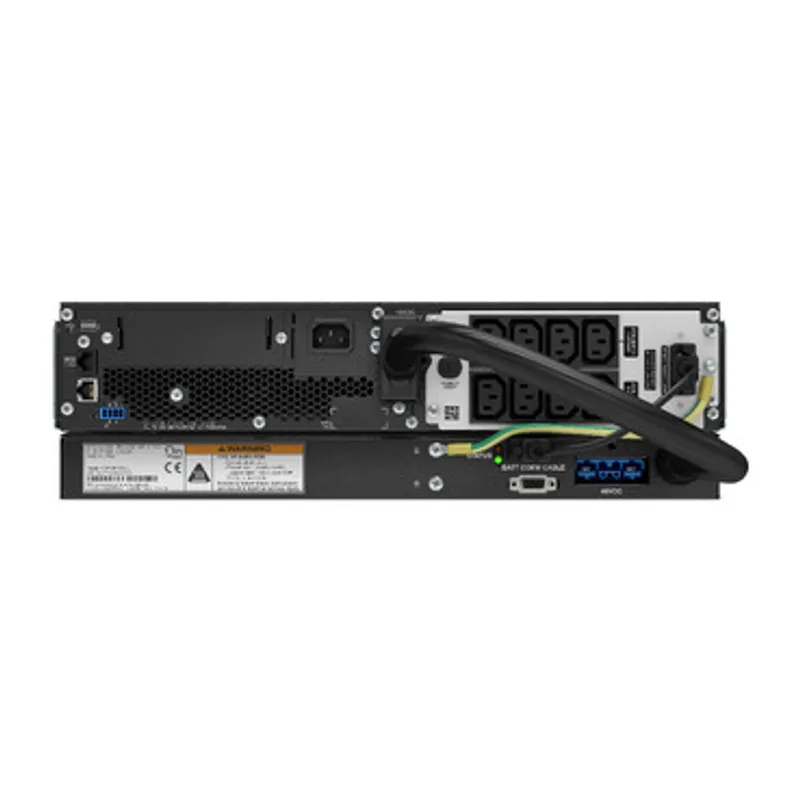

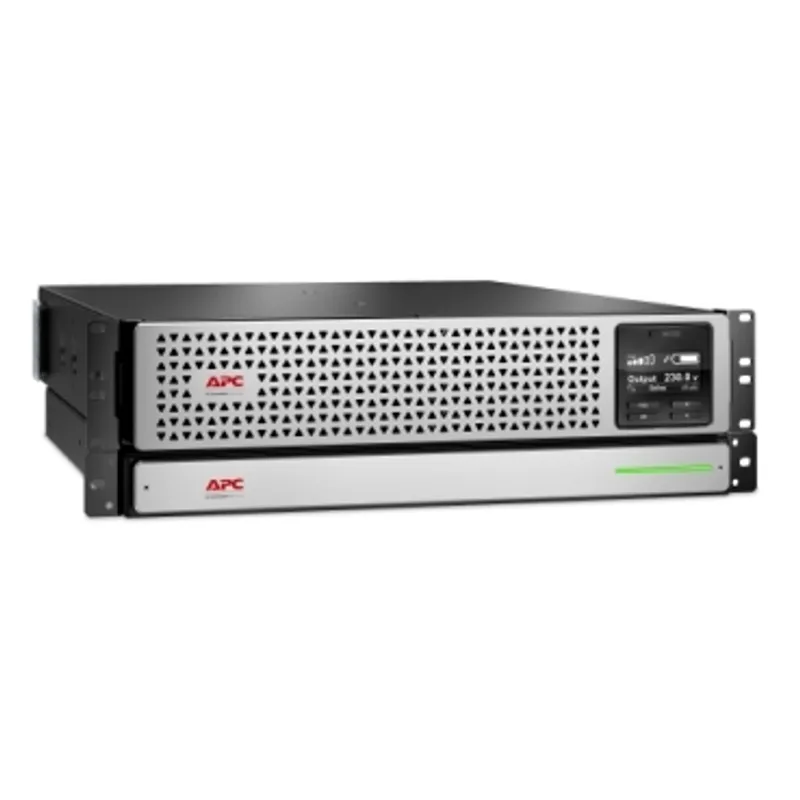

APC Smart-UPS On-Line, 1000VA, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery
- MPN
- SRTL1000RMXLI
- EAN
- 0731304346388
- Category
- APC Smart-UPS On-Line
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRTL1000RMXLI?
This APC Smart-UPS SRTL1000RMXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V, 240 V |
| Input Connection Type | IEC 60320 C14 |
| Input voltage limits | 160...275 V 40% load, 80...150 V |
| Network frequency | 40...70 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 900 W |
| rated power in VA | 1000 VA |
| Output connection type | 8 IEC 60320 C13 |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 900 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Li-Ion (Lithium-Ion) |
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port, USB port |
| Surge energy rate | 340 J |
| Number of rack unit | 3U |
| Cable length | 1.8 m |
| Number of cables | 1 |
| Colour | Black with silver front bezel |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Net weight | 13.7 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with included kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal, Vertical |
| Provided equipment | CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Lithium-Ion |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, EAC, RCM, VDE, UK PSTI |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 400 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Battery voltage | 48 V |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Battery life | 5…10 year(s) |
| Battery charger power | 103 W rated |
Packaging
| Package 1 | 1 PCE, 81 cm × 60 cm × 24.5 cm (L × W × H), 21 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SRTL1000RMXLI: frequently asked questions
When can SRTL1000RMXLI be shipped?
SRTL1000RMXLI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRTL1000RMXLI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRTL1000RMXLI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRTL1000RMXLI, subject to availability and destination.
