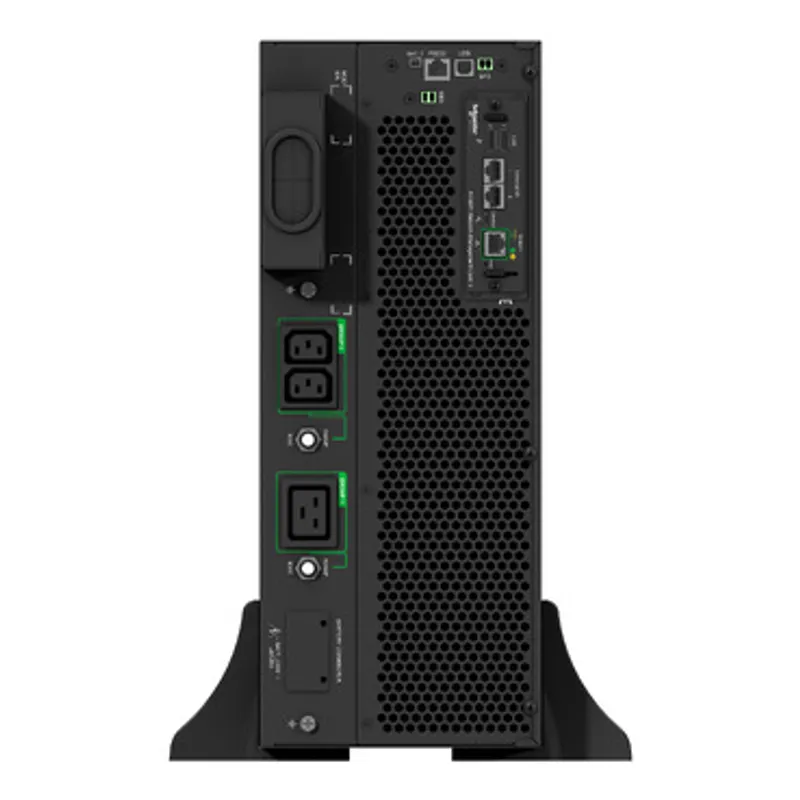

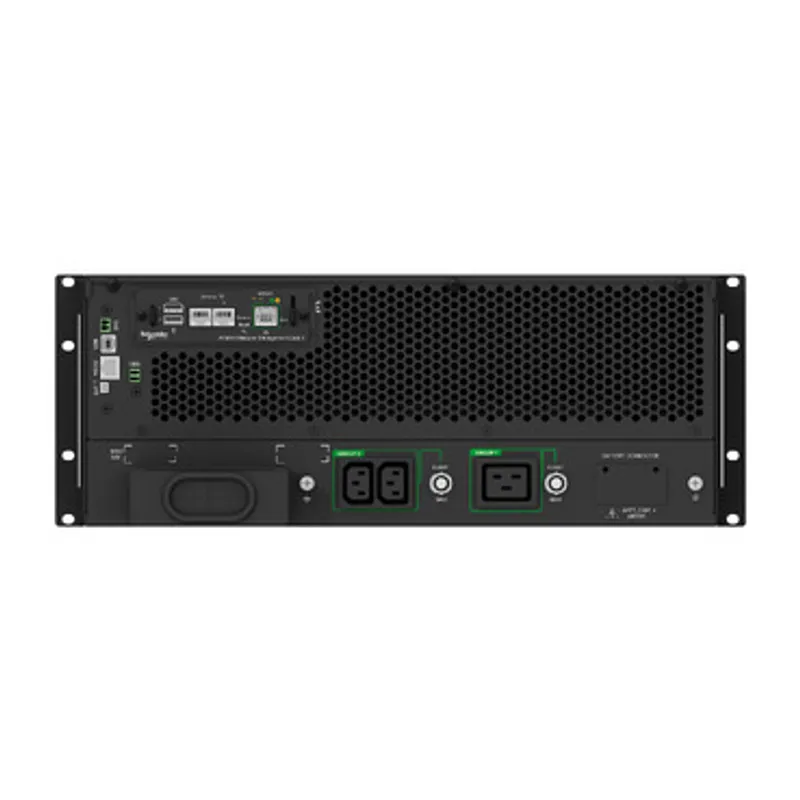

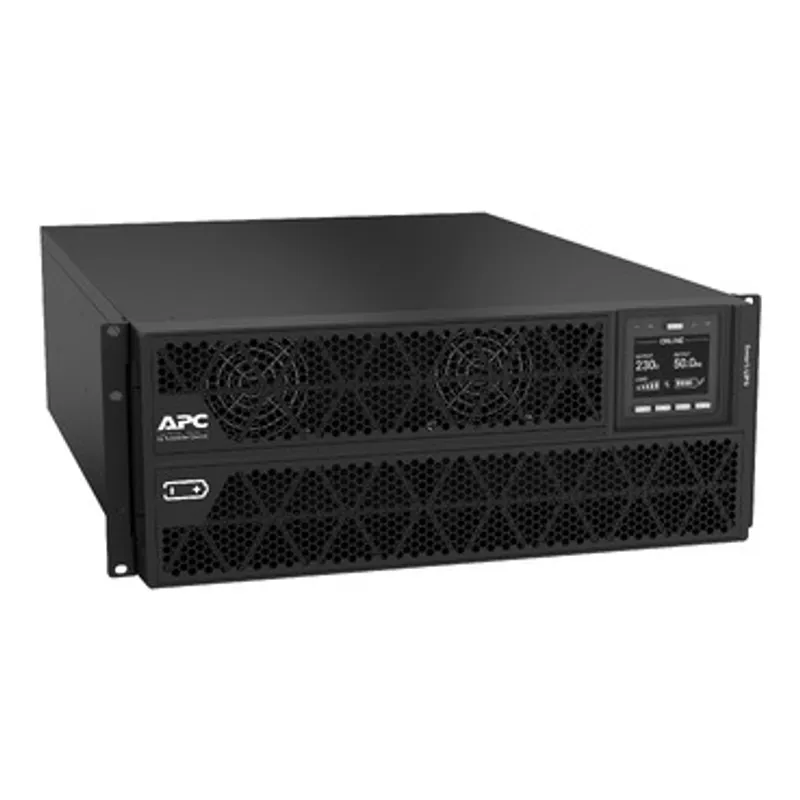

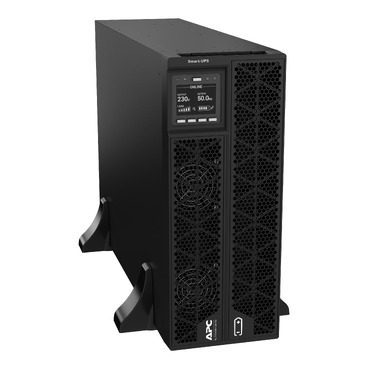

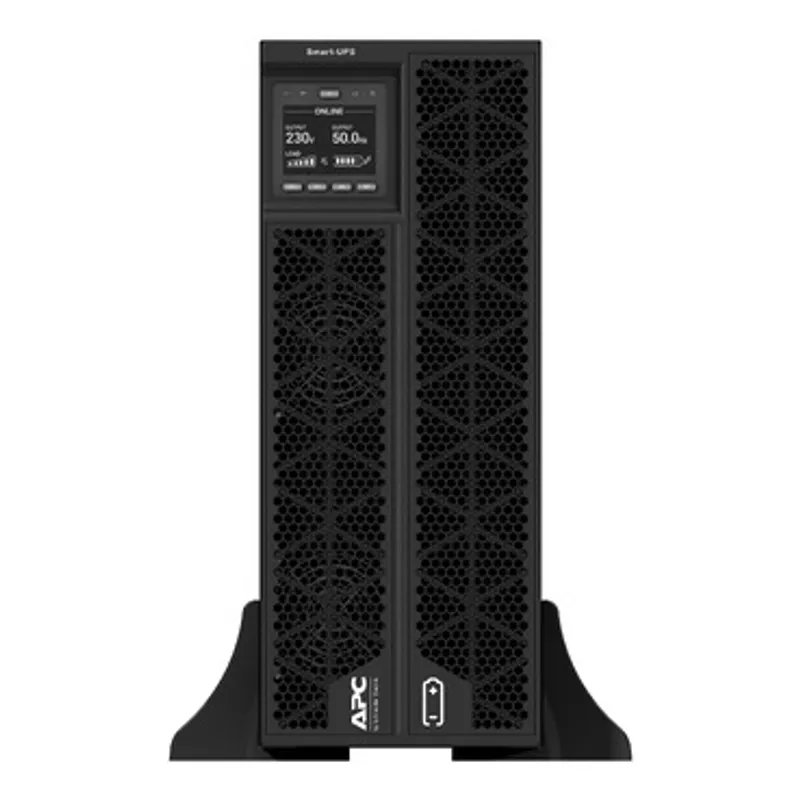

Schneider Electric SRTG6KXLI
APC Smart-UPS On-Line, 6kVA, Rack/Tower, 230V, 2x IEC C13 + 1x IEC C19 + Hard wire outlets, Network Card, w/o rail kit
- MPN
- SRTG6KXLI
- EAN
- 0731304411826
- Category
- APC Smart-UPS On-Line
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SRTG6KXLI?
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V, 240 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Input voltage limits | 160...285 V full load, 100...285 V half load |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40...70 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 6000 W |
| rated power in VA | 6000 VA |
| Output connection type | 2 IEC 60320 C13, 1 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2 % |
| Maximum configurable power in VA | 6000 VA |
| Maximum configurable power in W | 6000 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Efficiency | View Efficiency Graph |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid battery |
| Emergency power off | Yes |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port, USB port, Pre-installed network management card 3 |
| Surge energy rate | 600 J |
| Number of rack unit | 4U |
| Colour | Black (RAL 9005) |
| Height | 175 mm |
| Width | 440 mm |
| Depth | 620 mm |
| Net weight | 55.9 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with included kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Provided equipment | 1 x USB cable, 1 x RJ45 cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual, 1 x C13-C14 power cord |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, UKCA, TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 1330.74 Btu/h |
| Operating altitude | 0...3000 m |
| Run Time | View Runtime Graph |
| Battery voltage | +/- 96 V |
| Extended runtime | 1 |
| Number of battery filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC170 |
| Battery charger power | 239 W rated |
Packaging
| Package 1 | 1 PCE, 59 cm × 79 cm × 27.5 cm (L × W × H), 61.8 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SRTG6KXLI: frequently asked questions
When can SRTG6KXLI be shipped?
SRTG6KXLI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRTG6KXLI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRTG6KXLI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRTG6KXLI, subject to availability and destination.
