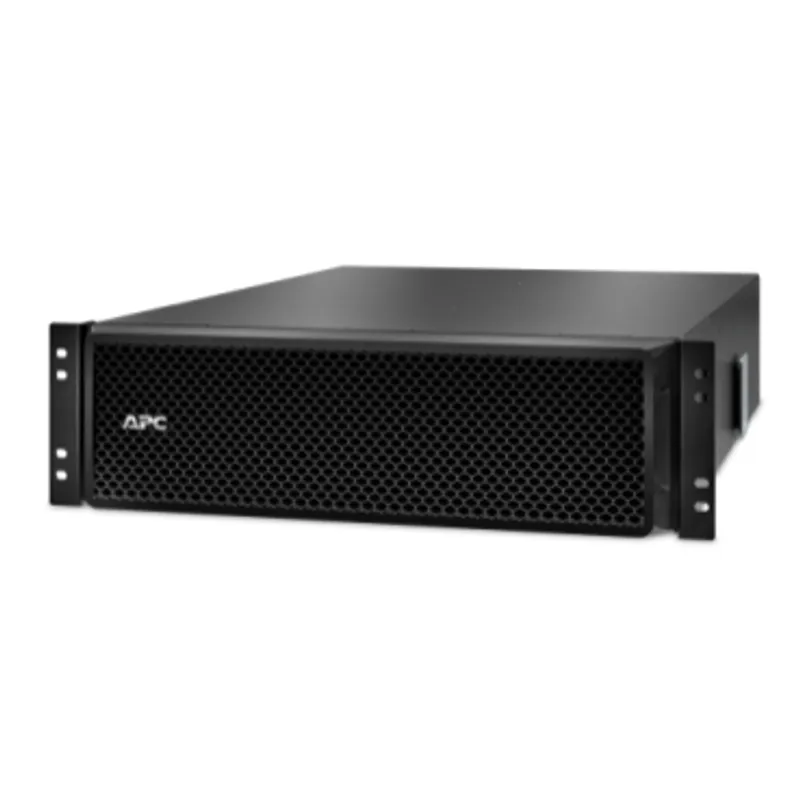

APC Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC Smart-UPS Battery Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 91 kg |
Shipping & availability
When can SRT192RMBP2 be shipped?
SRT192RMBP2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SRT192RMBP2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SRT192RMBP2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SRT192RMBP2, subject to availability and destination.
This APC Smart -UPS SRT192RMBP2 product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
Specifications
| Lead time | Usually in Stock |
| Product or component type | External battery pack |
| Number of rack unit | 3U |
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide, Warranty card, Rack mounting brackets |
| Range of product | Smart-UPS Battery Systems |
| Number of battery free slots | 0 |
| Number of battery filled slots | 0 |
| Device mounting | Stand alone battery stack |
| Battery voltage | +/- 192 V |
| Number of battery replacement quantity | 2 |
| Replacement battery | APCRBC140 |
| Colour | Black |
| Height | 130 mm |
| Width | 432 mm |
| Depth | 682.7 mm |
| Net weight | 91 kg |
| Mounting mode | Rack-mounted |
| Two post mountable | 1 |
| Battery capacity | 10 Ah |
| Standards | OSHPD |
| Ambient air temperature for operation | 0…40 °C |
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % non-condensing |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Storage Relative Humidity | 0…95 % non-condensing |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 42 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 100 cm |
| Package 1 Weight | 105.5 kg |
| Warranty (in months) | 24 |
