Schneider Electric SR99031

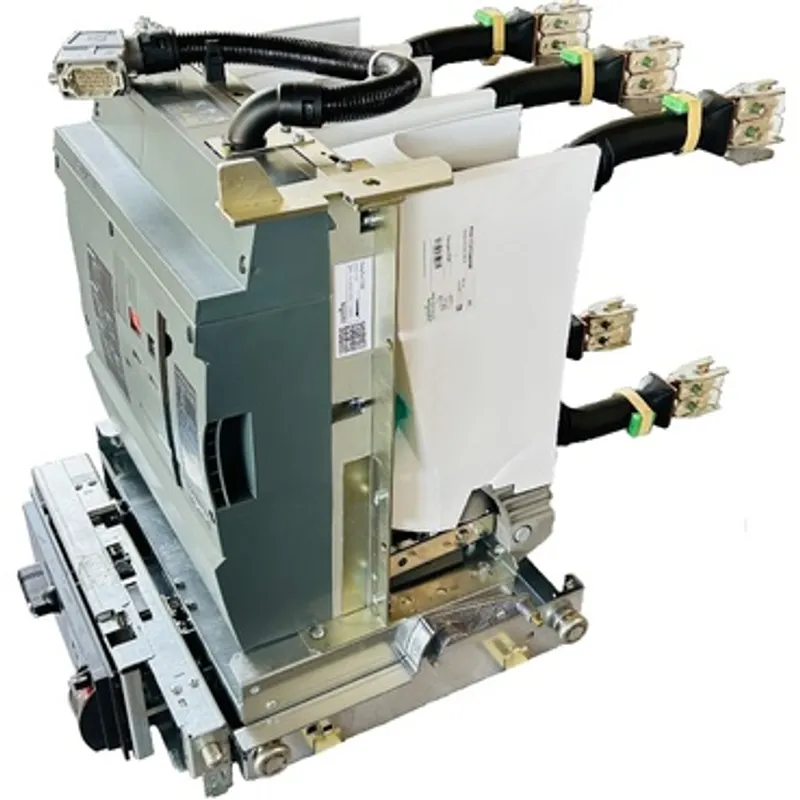

Circuit breaker, EasyPact EXE, 3P, 1250A, 12kV, 50/60Hz, indoor installation
- MPN
- SR99031
- Category
- EasyPact EXE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SR99031?
Schneider Electric Circuit breaker, EasyPact EXE, 3P, 1250A, 12kV, 50/60Hz, indoor installation, manufacturer part number SR99031. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range compatibility | EasyPact, Nex 17 |
| [In] rated current | 630 A, 1250 A |
| Product name | Ecofit Loose CB with EasyPact |
| Switching device | Circuit breaker |
| Breaking technology | Vacuum |
| Product or component type | Circuit breaker |
| Pole type | Open |
| Number of poles | 3 |
| Network type | AC |
| Type of installation | Indoor |
| Integration type | Fixed |
| Variant | Basic function |
| Rated lightning impulse withstand voltage (Up) / Common value | 28 kV |
| Rated voltage (Ur) | 7.2 kV, 12 kV |
| Rated lightning impulse withstand voltage (Up) / Across the isolating distance | 75 kV |
| Rated frequency (fr) | 50/60 Hz |
| Rated continuous current (Ir) | 20 kA |
| DC time constant (τ) | 45 ms |
| DC component | 30 % |
| Rated short-time withstand current (Ik) | 31.5 kA |
| Rated duration of short-circuit (tk) | 3 s |
| Rated first pole-to-clear factor (kpp) | 1.5 |
| Rated out-of-phase breaking current (Id) | 7.88 kA |
| Rated cable-charging breaking current (Ic) | 25 A |
| Rated single capacitor bank-breaking current (Isb) | 400 A |
| Rated operating sequence | O - 0.3 s - CO - 3 min - CO, O - 0.3 s - CO - 15 s - CO, O - 3 min - CO - 3 min - CO |
| Number of available auxiliary contact | 4 NO + 4 NC |
| Motor charging time | <= 7 s |
| Classification for electrical endurance | E2 |
| Number of operations at short-circuit breaking current | 50 |
| Classification for the connection to the network | S1 |
| Classification for capacitive currents | C2 |
| Mass | 169 kg |
| Height | 527 mm |
| Width | 470 mm |
| Depth | 429 mm |
| Phase distance | 145 mm |
| Clearance in air to earth | 150 mm |
| Upper lower connection distance | 270 mm |
| Ambient air temperature for operation | -25…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| Humidity conditions | Average relative humidity over 1 month <= 90 %, Average relative humidity over 24 h <= 95 % |
| Operating altitude | 0...1000 m |
Packaging
| Package 1 | 1 PCE |
