Schneider Electric SBP10KRMI4U
APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19
- MPN
- SBP10KRMI4U
- EAN
- 0731304212638
- Category
- Maintenance Bypass Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SBP10KRMI4U?

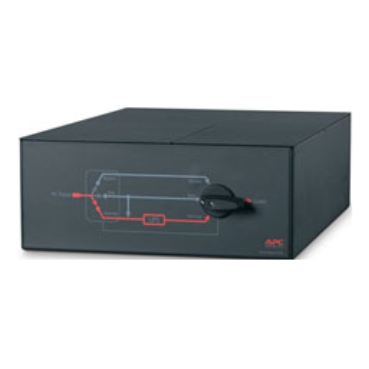

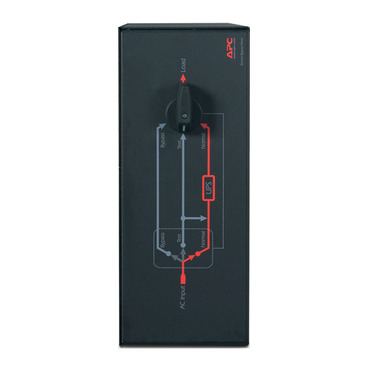

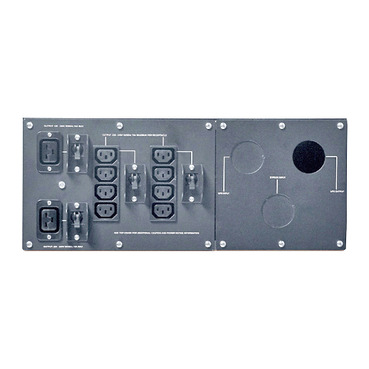

The APC Service Bypass Panel has a nominal voltage of 230V. It includes 8 IEC C13 and 2 IEC C19 outlets. It features a 4U rack-mount design and is rack mountable. The unit includes rack mounting brackets, user manual, and installation guide.
Specifications
Specifications
| Main Input Voltage | 230 V |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Provided equipment | Installation guide, Rack mounting brackets, User manual |
| Range of product | Maintenance Bypass Panels |
| Colour | Black |
| Height | 178 mm |
| Width | 432 mm |
| Depth | 673 mm |
| Net weight | 20.91 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E), 1 hard wire 4-wire (3P + N) |
| Max line current | 100 A |
| Input current limits | 100 A |
| Load capacity | 20000 VA |
| Power factor | 0…1 |
| Max current draw | 100 A |
| Number of power socket outlets | 8 IEC 60320 C13, 2 IEC 60320 C19 |
| Protection type | Circuit breaker |
| Efficiency | 99 % |
| Product certifications | CSA, GOST |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -40…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packaging
| Package 1 | 1 PCE, 99.1 cm × 61 cm × 30.5 cm (L × W × H), 31.36 kg |
| Package 2 | 10 PAL, 120 cm × 100 cm × 157.5 cm (L × W × H), 322.5 kg |
