Schneider Electric RXG23P7PV
Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, pre assembled, with LED, 230V AC
- MPN
- RXG23P7PV
- EAN
- 3606489562922
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RXG23P7PV?

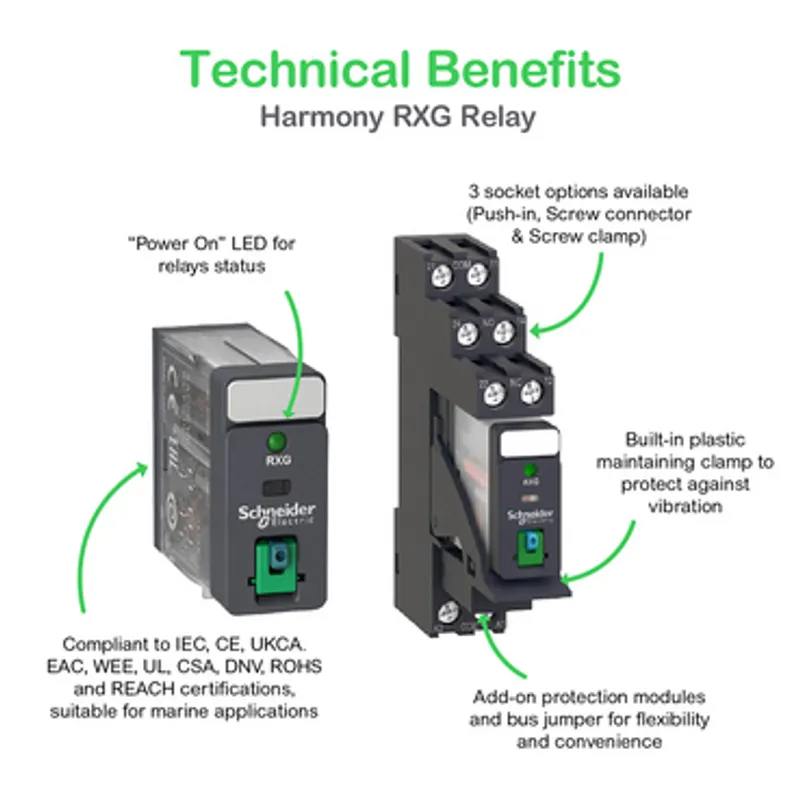

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

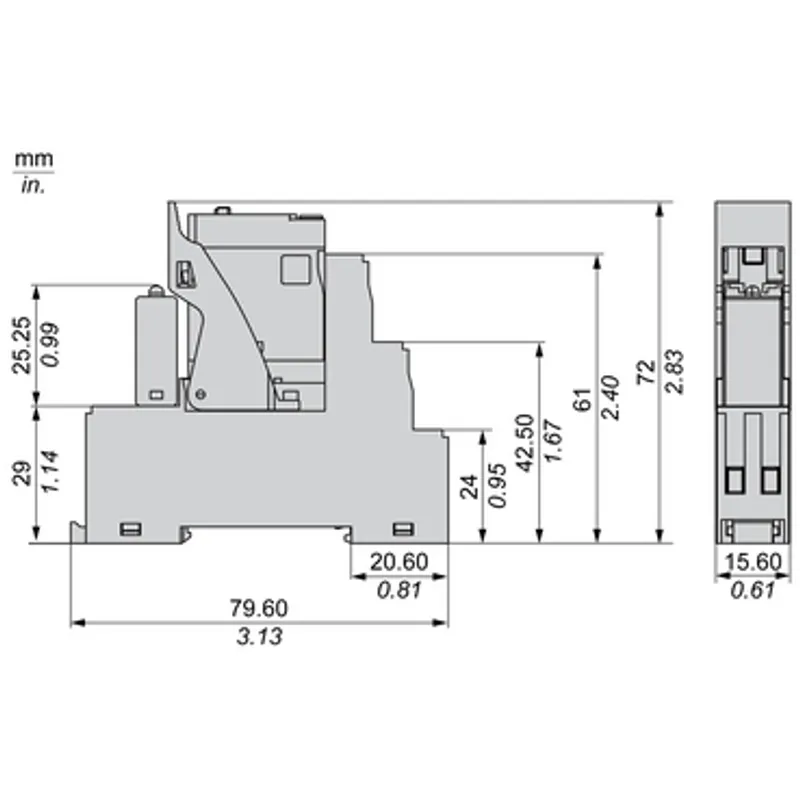

Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RXG series |
| Product or component type | Pre-assembled plug-in relay with socket |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 230 V AC |
| [Ithe] conventional enclosed thermal current | 5 A |
| Status LED | With |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C, 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Removable legend | With |
| Maximum switching voltage | 250 V |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC |
| Load current | 5 A |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA AC, 150 W DC |
| Control type | Without lockable test button |
| Average resistance | 23500 Ohm at 23 °C +/- 15 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| reset time | 20 ms |
| Contact terminal arrangement | Separate |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net weight | 0.065 kg |
| Standards | IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984 |
| Product certifications | EAC, CSA, UL, CE, DNV |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)in operation, 5 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)not in operation |
Packaging
| Package 1 | 1 PCE, 7.200 cm × 1.560 cm × 7.960 cm (L × W × H), 63.000 g |
| Package 2 | 30 BB1, 27.200 cm × 17.590 cm × 9.000 cm (L × W × H), 2.138 kg |
| Package 3 | 180 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 13.375 kg |
