Schneider Electric RUMC32FD
Universal plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 110V DC
- MPN
- RUMC32FD
- EAN
- 3606480626975
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RUMC32FD?

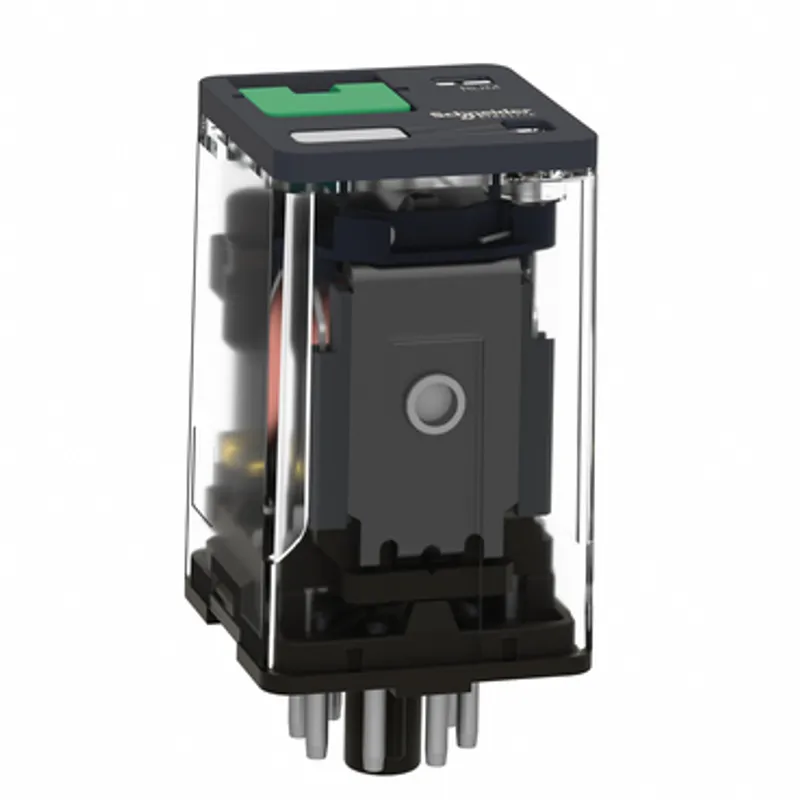

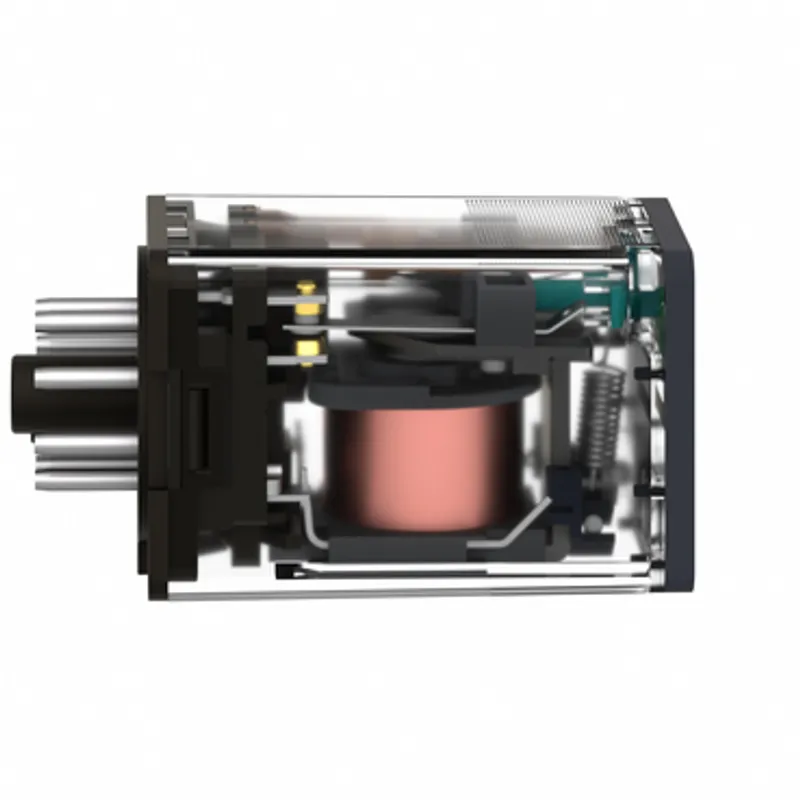

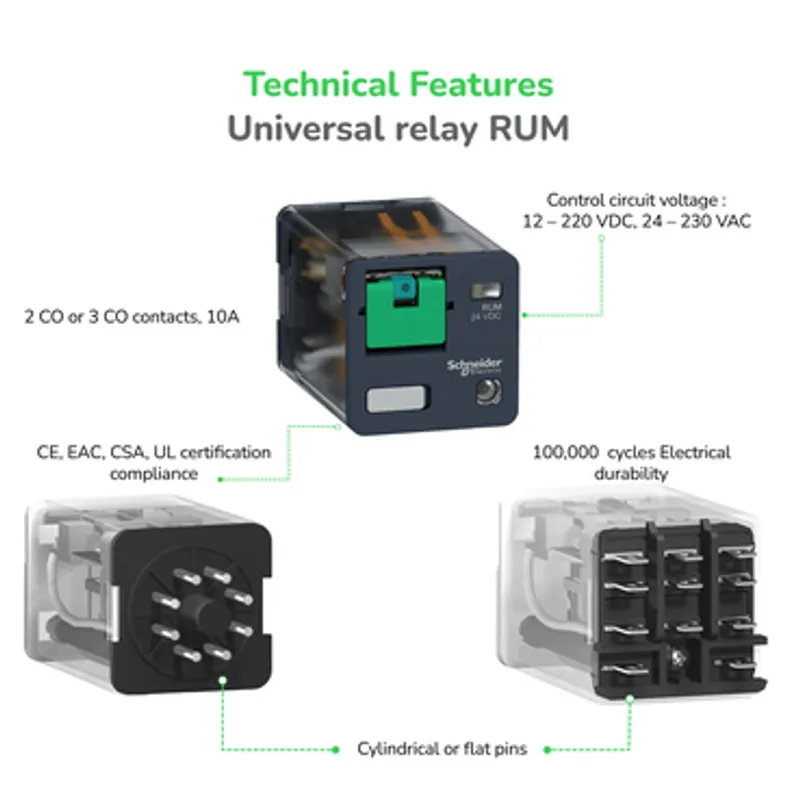

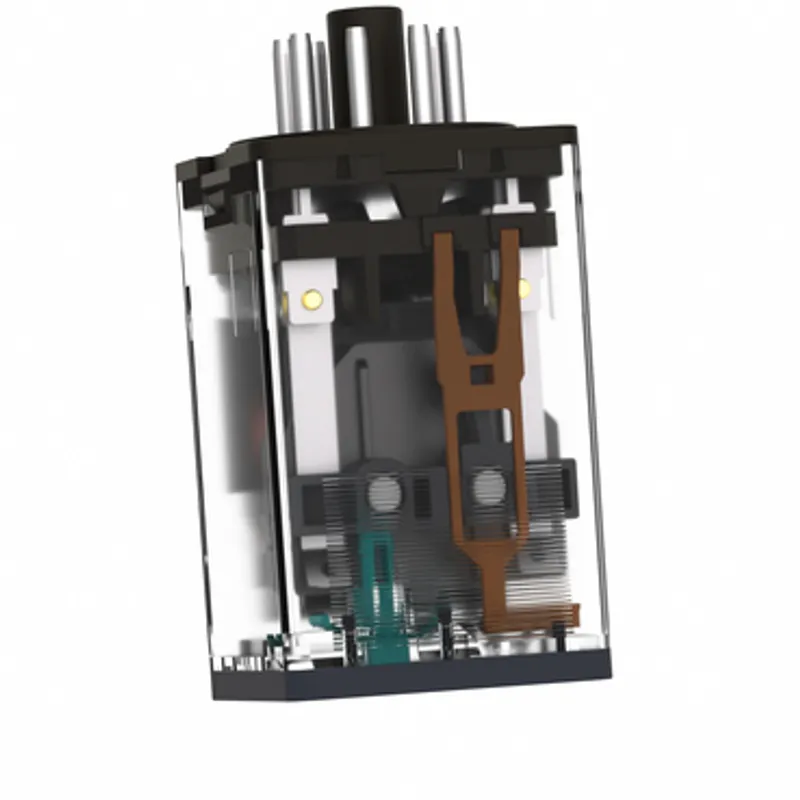

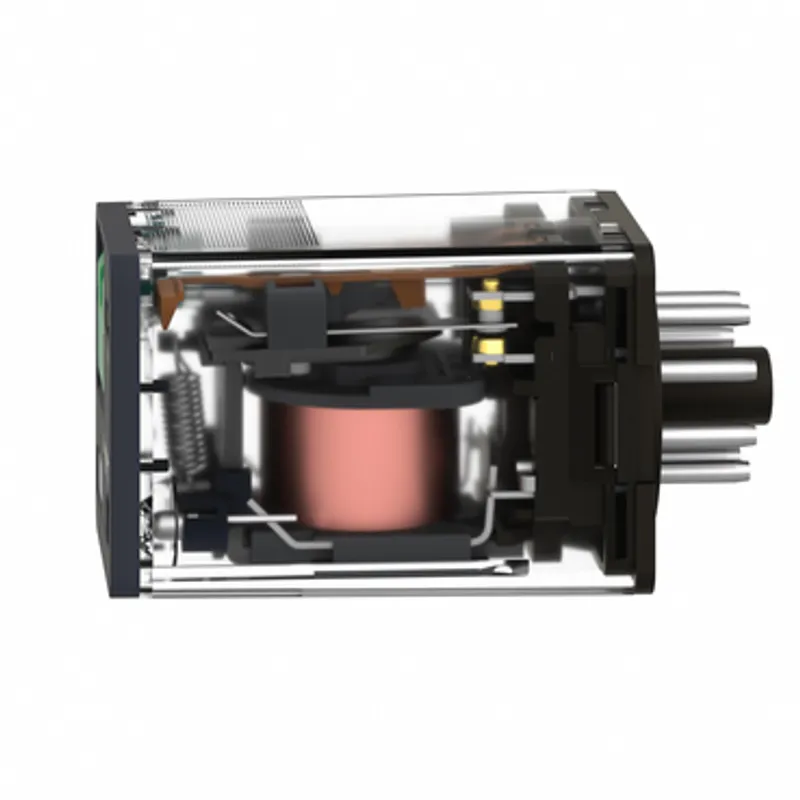

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RUM series |
| Product or component type | Plug-in relay |
| Relay type | Universal relay |
| Contacts type and composition | 3 C/O |
| Status LED | With |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 110 V DC |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 4 kV (1.2/50 µs) |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Electrical durability | 100000 cycles for resistive load |
| Operating time | 20 ms at nominal voltage |
| Rated operational voltage limits | 88...121 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Reset time | 20 ms at nominal voltage |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC (same polarity) conforming to CSA, 10 A at 30 V DC conforming to CSA, 5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 10 A at 28 V DC (NO) conforming to IEC |
| Average resistance | 7300 Ohm at 20 °C +/- 15 % |
| Maximum switching capacity | 2500 VA/280 W |
| Mechanical durability | 5000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load |
| Utilisation coefficient | 20 % |
| Compatibility code | RUM |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Cylindrical |
| Net weight | 0.086 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 |
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
| Product certifications | UL, EAC, CSA |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
Packaging
| Package 1 | 1 PCE, 3.600 cm × 6.900 cm × 3.500 cm (L × W × H), 90.000 g |
| Package 2 | 10 BB1, 19.800 cm × 14.600 cm × 4.000 cm (L × W × H), 975.000 g |
| Package 3 | 60 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 6.280 kg |
