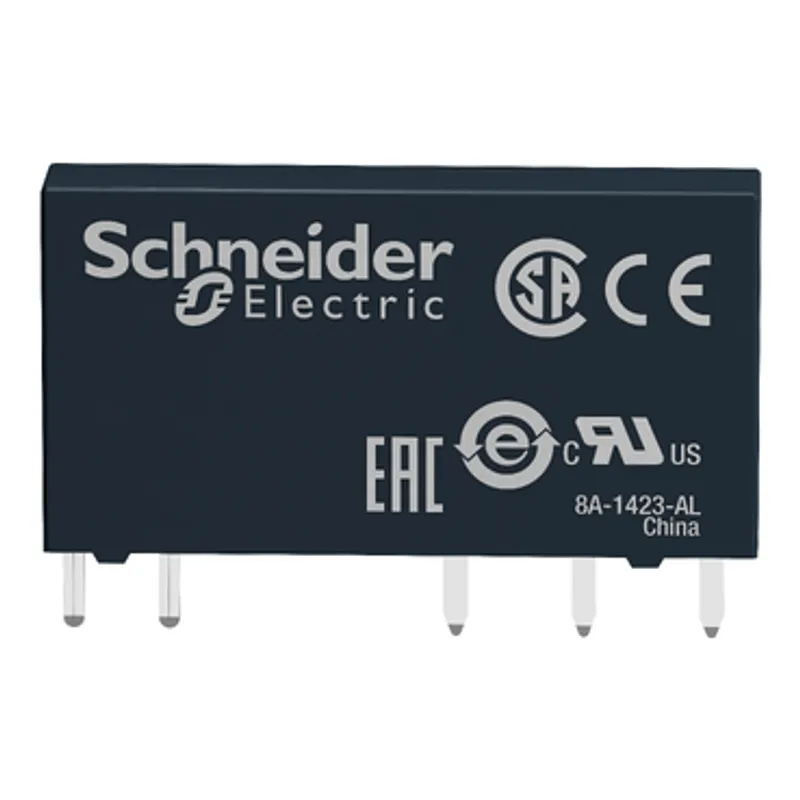

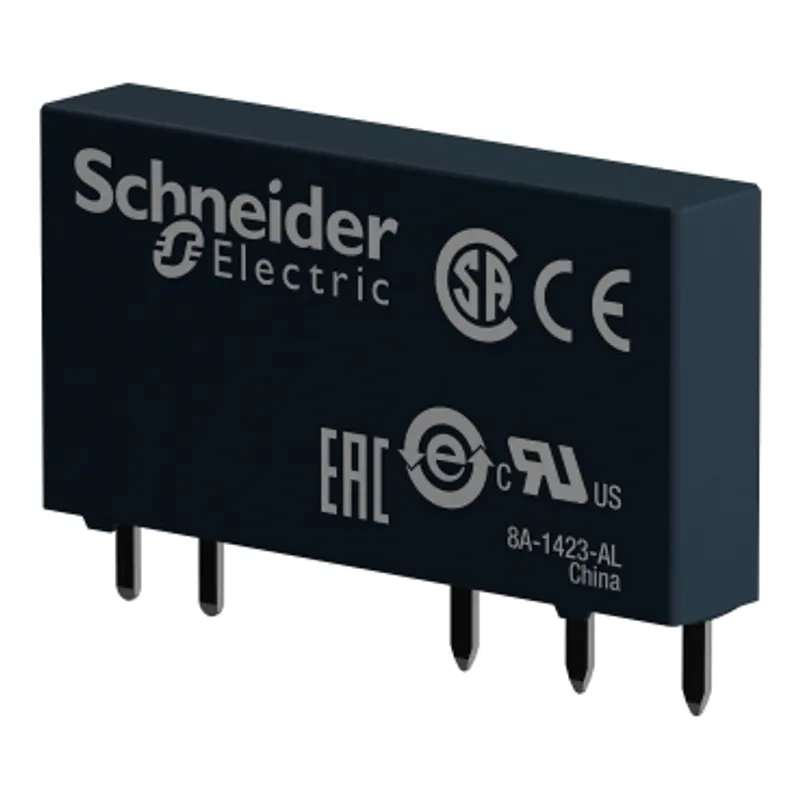

Schneider Electric RSL1GB4BD
Slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, low level, 24V DC
- MPN
- RSL1GB4BD
- EAN
- 3606480077968
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RSL1GB4BD?
It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." Status display with LED, clearly signal both in the day and night. "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RSL series |
| Product or component type | Plug-in relay |
| Relay type | Slim interface relay |
| Contact operation | Low level |
| Contacts type and composition | 1 C/O |
| Control type | Without lockable test button |
| Status LED | Without |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A (AC-1/DC-1) conforming to IEC/UL |
| Minimum switching current | 1 mA |
| Minimum switching voltage | 24 V |
| Minimum switching capacity | 24 mW |
| Rated operational voltage limits | 18...33.6 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 277 V conforming to cUL |
| Operating time | 5 ms reset, 12 ms |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Maximum switching capacity | 1500 VA, 50 W |
| Terminals description ISO n°1 | (A1-A2)CO, (11-12-14)OC |
| Average resistance | 3390 Ohm at 23 °C +/- 15 % |
| Average coil consumption | 0.17 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 360 cycles/hour under load, <= 18000 cycles/hour no-load |
| Protection category | RT III |
| Mounting support | Socket or PCB |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy - gold plated (AgSnO2) |
| Shape of pin | Flat (PCB type) |

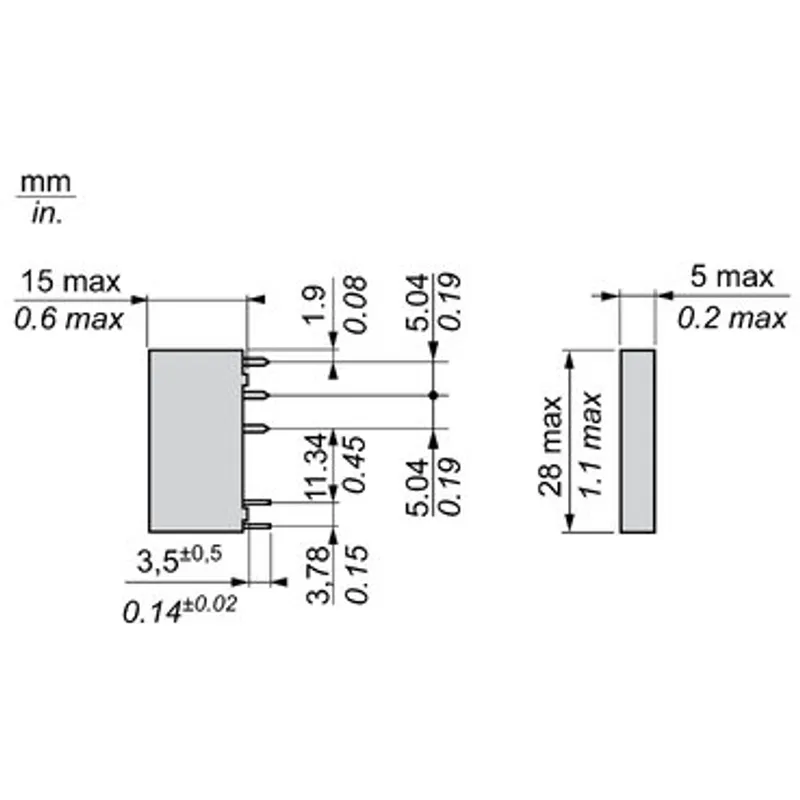

| Width | 5 mm |
| Height | 28 mm |
| Depth | 18.5 mm |
| Net weight | 0.0054 kg |
| Dielectric strength | 1000 V AC between contacts, 4000 V AC between coil and contact |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…55 °C |
| Standards | UL 508, CSA C22.2 No 14, IEC 61810-1 |
| Product certifications | EAC, CSA, UL |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
Packaging
| Package 1 | 1 PCE, 2.800 cm × 1.500 cm × 0.500 cm (L × W × H), 5.000 g |
| Package 2 | 10 BB1, 30.500 cm × 2.400 cm × 0.700 cm (L × W × H), 70.000 g |
| Package 3 | 500 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 3.715 kg |
